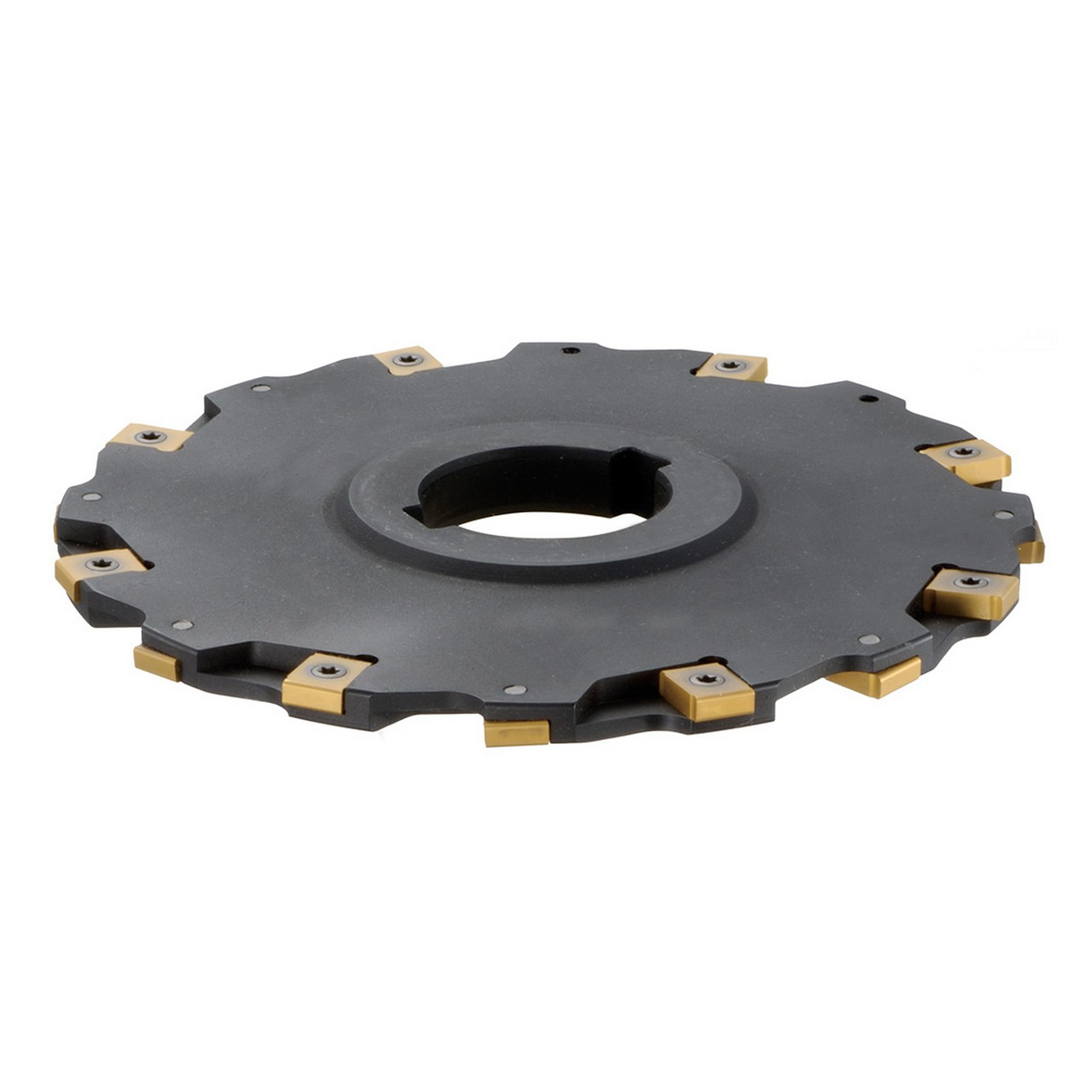

Features:
- Up-right type/semi-adjustable slot width
- Easy and secure screw holding - inserts can be attached to the MSTB slot mills very easily by using clamp screws.
- Inserts have four edge and are, therefore, cost-effective
- Applicable to a variety of slotting by choosing different inserts
Product Specifications
| EDP Number | THC10842 |
| Shank Width (Decimal Inch) | 0.4724" |
| Max Depth of Cut (Decimal Inch) | 1.6142" |
| Max Depth of Cut (mm) | 41.00mm |
| Cutting Width (Decimal Inch) | 0.2362 - 0.2756" |
| Cutting Width (mm) | 6.00 - 7.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.2362" |
| Cutting Width Minimum (mm) | 6.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.2756" |
| Cutting Width Maximum (mm) | 7.00mm |
| Cutting Diameter (Decimal Inch) | 6.2992" |
| Cutting Diameter (mm) | 160.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 6.2992" |
| Cutting Diameter Minimum (mm) | 160.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 6.2992" |
| Cutting Diameter Maximum (mm) | 160.00mm |
| Cutting Diameter Maximum (mm) | 1.5748" |
| Connection Bore Diameter (mm) | 40.00mm |
| Application | Cut-Off | Slotting |
| Hand | Neutral |
| Insert Holding Method | Screw |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Width (Inch):
9/32"
Cutting Width (Decimal Inch):
0.2756"
Cutting Width (mm):
7.00mm
Maximum Depth of Cut (Inch):
1-39/64"
Maximum Depth of Cut (Decimal Inch):
1.6142"
Maximum Depth of Cut (mm):
41.00mm
Cutter Diameter (Inch):
6-19/64"
Cutter Diameter (Decimal Inch):
6.2992"
Cutter Diameter (mm):
160.00mm
Hole Diameter (Inch):
1-37/64"
Hole Diameter (Decimal Inch):
1.5748"
Hole Diameter (mm):
40.00mm
Toolholder Style:
MSTB
Series:
MSTB
