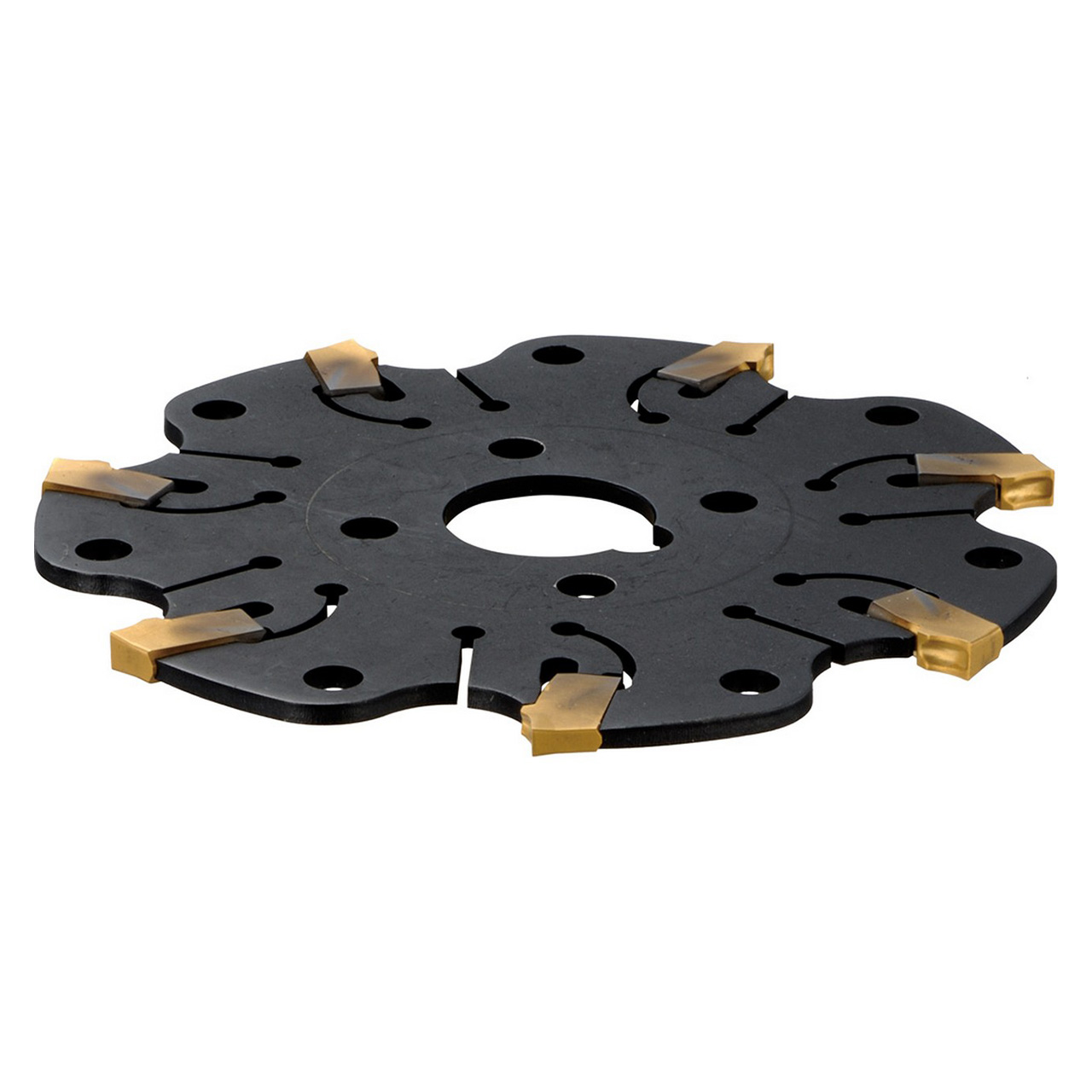

Kyocera Precision Tools THC10986 | MSTA160N4014T 6.2992" Diameter x 1.5748" Maximum Depth of Cut Steel Indexable Slot Mill

$817.05
Brand:
Kyocera Precision Tools
Cutting Width (Inch):
5/32"
Cutting Width (Decimal Inch):
0.1575"
Cutting Width (mm):
4.00mm
Maximum Depth of Cut (Inch):
1-37/64"
Maximum Depth of Cut (Decimal Inch):
1.5748"
Maximum Depth of Cut (mm):
40.00mm
Cutter Diameter (Inch):
6-19/64"
Cutter Diameter (Decimal Inch):
6.2992"
Cutter Diameter (mm):
160.00mm
Hole Diameter (Inch):
1-37/64"
Hole Diameter (Decimal Inch):
1.5748"
Hole Diameter (mm):
40.00mm
Toolholder Style:
MSTA
Series:
MSTA
SKU:
23229566
Weight:
1.11 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • MSTA slot mills have simple self-clamping system to allow for easy attachment by just installing the insert
  • Owing to the highly rigid clamping system - with an end-stopper, the cutter enables high operability and stable slotting by maintaining an accurate edge position.
  • High replacement precision due to the clamping system with two prisms.
  • The replacement of inserts is easy and quick by using special wrench.

Product Specifications
EDP NumberTHC10986
Max Depth of Cut (Decimal Inch)1.5748"
Max Depth of Cut (mm)40.00mm
Cutting Width (Decimal Inch)0.1575"
Cutting Width (mm)4.00mm
Cutting Width Minimum (Decimal Inch)0.1575"
Cutting Width Minimum (mm)4.00mm
Cutting Width Maximum (Decimal Inch)0.1575"
Cutting Width Maximum (mm)4.00mm
Cutting Diameter (Decimal Inch)6.2992"
Cutting Diameter (mm)160.00mm
Cutting Diameter Minimum (Decimal Inch)6.2992"
Cutting Diameter Minimum (mm)160.00mm
Cutting Diameter Maximum (Decimal Inch)6.2992"
Cutting Diameter Maximum (mm)160.00mm
Cutting Diameter Maximum (mm)1.5748"
Connection Bore Diameter (mm)40.00mm
ApplicationCut-Off | Slotting
HandNeutral
Insert Holding MethodSelf-Clamp
MaterialSteel
