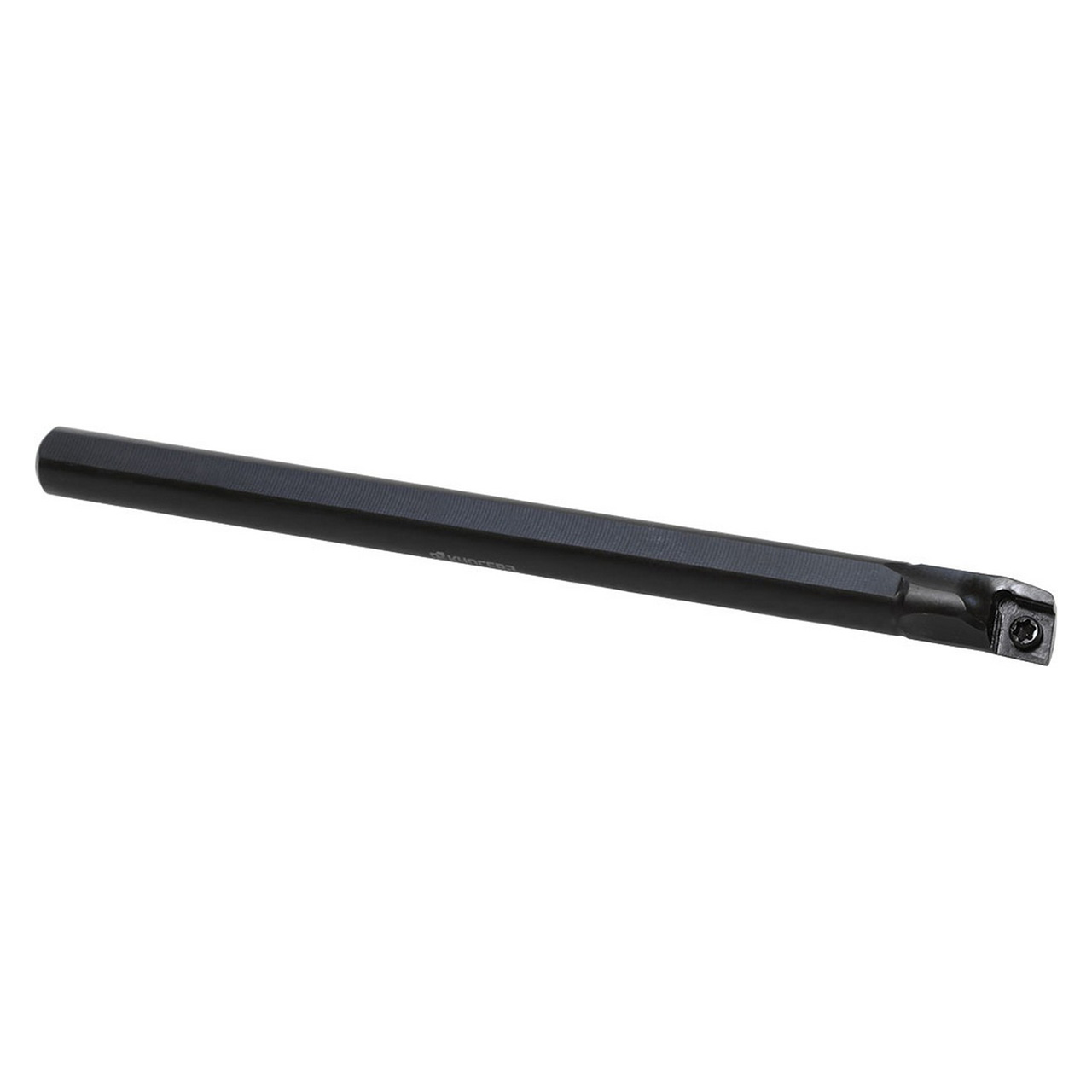

Kyocera Precision Tools THC11639 | S10LSCLCL0612A 0.3937" Diameter Left-Hand Steel Indexable Boring Bar

$146.93 $121.95
(You save $24.98)
Brand:
Kyocera Precision Tools
Toolholder Style:
S...SCLC-A
Series:
DYNB;Minimum Bore Diameter (Decimal Inch)=0.4724"
Minimum Bore Diameter (mm):
12.00mm
Hand of Holder:
Left-Hand
Shank Diameter (Decimal Inch):
0.3937"
Shank Diameter (mm):
10.00mm
Through Coolant:
No
interval quantity:
1
SKU:
23229630
UPC:
Weight:
0.25 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
  • Large chip pocket provides superior chip evacuation
  • Anti-chatter vibration performance
  • Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
  • 0 (Axial), -12 (Radial) Rake angle dynamic bar boring bar

Product Specifications
EDP NumberTHC11639
Connection Diameter (Decimal Inch)0.3937"
Connection Diameter (mm)10.00mm
Minimum Bore Diameter (Decimal Inch)0.4724"
Minimum Bore Diameter (mm)12.00mm
Shank Height (Decimal Inch)0.3543"
Shank Height (mm)9.00mm
Tool Entering Angle ( Degree)95 Degree
ApplicationBoring | Internal Facing
Bar TypeSteel Shank
HandLeft Hand
Insert Holding MethodScrew
Insert Shape80 Degree Diamond
MaterialSteel
RakePositive

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
