Features:

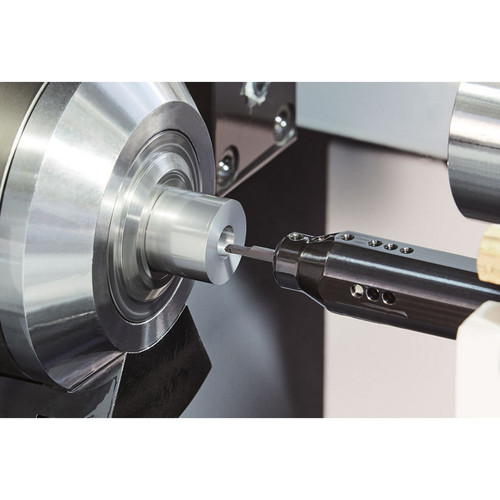

- The EZ Bar system prevents deviation with high-rigidity clamping
- Easy adjustment and high precision for a wide range of applications
- Compatible with EZBR035, EZTR035 style micro bars
Product Specifications
| EDP Number | THC14333 |
| Cutting Diameter Maximum (mm) | 0.1378" |
| Connection Bore Diameter (mm) | 3.50mm |
| Connection Diameter (Decimal Inch) | 0.7500" |
| Connection Diameter (mm) | 19.05mm |
| Shank Height (Decimal Inch) | 0.7087" |
| Shank Height (mm) | 18.00mm |
| Adjustable Bar (Yes/No) | Yes |
| Application | Micro Back Boring | Micro Boring | Micro Internal Face Grooving | Micro Internal Grooving | Micro Internal Profiling | Micro Internal Threading |
| Insert Holding Method | Screw |
| Material | Steel |
| Shank Type | Straight / Cylindrical |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Shank Diameter (mm):
19.05mm
Shank Diameter (Decimal Inch):
0.7500"
Bore Diameter (mm):
3.50mm
Bore Diameter (Decimal Inch):
0.1378"
Material:
Steel"
