Features:

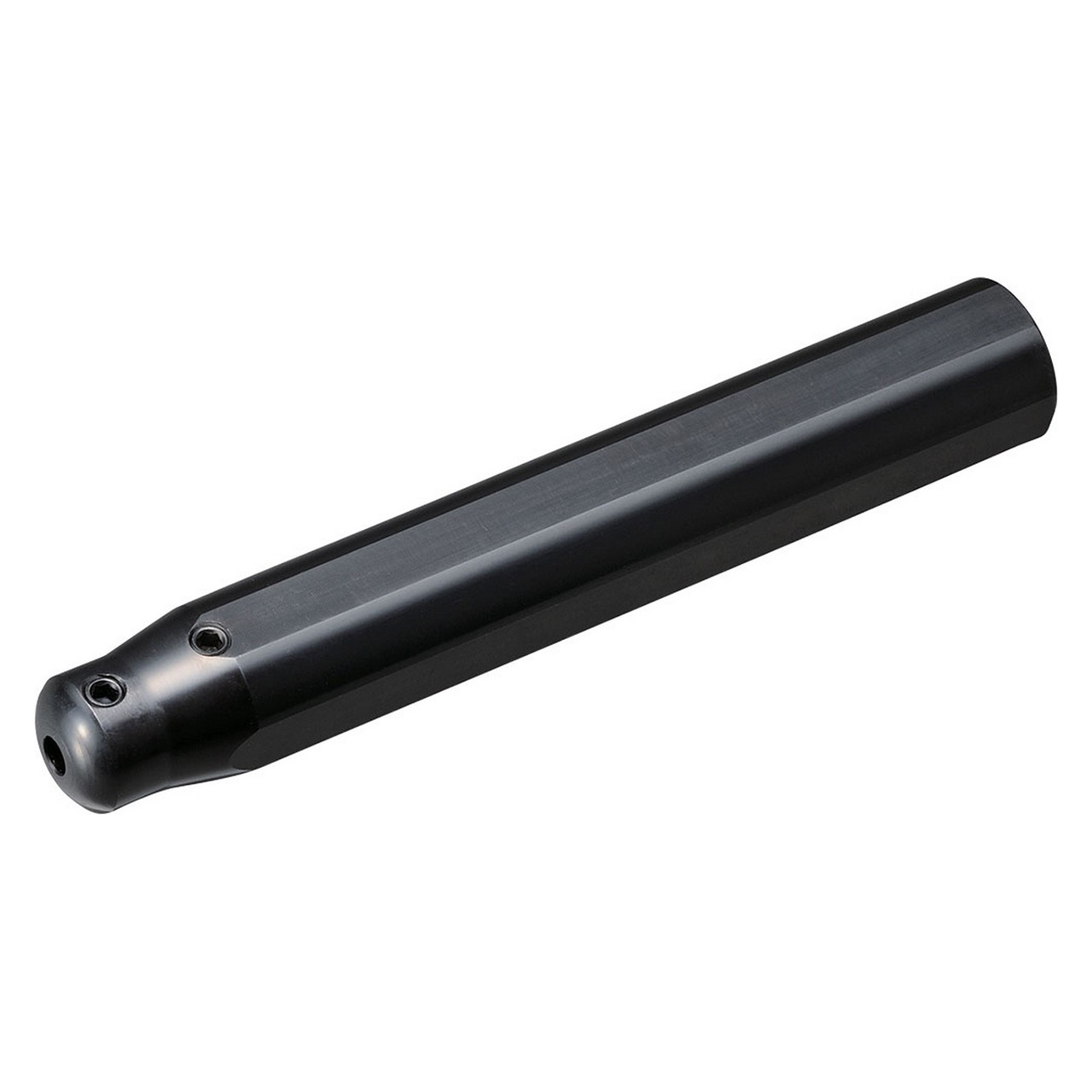

- The EZ Bar system prevents deviation with high-rigidity clamping
- Easy adjustment and high precision for a wide range of applications
- Non-adjustable cost-effective option
- Compatible with 080X--100EZP style micro bars
Product Specifications
| EDP Number | THC14626 |
| Cutting Diameter Maximum (mm) | 0.3150" |
| Connection Bore Diameter (mm) | 8.00mm |
| Connection Diameter (Decimal Inch) | 0.6299" |
| Connection Diameter (mm) | 16.00mm |
| Shank Height (Decimal Inch) | 0.5906" |
| Shank Height (mm) | 15.00mm |

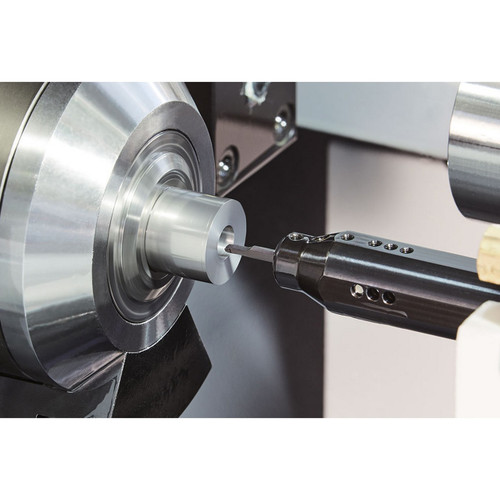

| Application | Micro Back Boring | Micro Boring | Micro Internal Face Grooving | Micro Internal Grooving | Micro Internal Profiling | Micro Internal Threading |
| Insert Holding Method | Screw |
| Material | Steel |
| Shank Type | Straight / Cylindrical |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Shank Diameter (mm):
16.00mm
Shank Diameter (Decimal Inch):
0.6299"
Bore Diameter (mm):
8.00mm
Bore Diameter (Decimal Inch):
0.3150"
Material:
Steel"
