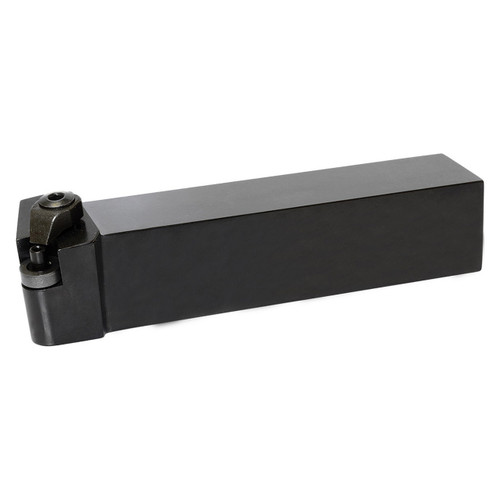

Kyocera Precision Tools THC89165 | MCLNL205D 1.2500" Shank Width x 1.2500" Shank Height Steel Indexable Turning Toolholder

$121.69
Brand:
Kyocera Precision Tools
Hand of Holder:
Left-Hand
Toolholder Style:
MCLN
Rake:
Negative;Series=MLTH
Lead Angle:
95°
Shank Width (Decimal Inch):
1.2500"
Shank Width (mm):
31.75mm
Shank Height (Decimal Inch):
1.2500"
Shank Height (mm):
31.75mm
SKU:
23230935
Weight:
3.25 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Left-Hand toolholder
  • Application: External turning, facing
  • Multi-lock clamp and lock pin insert holding design
  • Compatible with Left-Hand CNMG54, CNMM54, CNGG54, CNMA54, CNGA54 style inserts
  • Combination of top clamp and pin lock for rigid clamping and heavy machining

Product Specifications
EDP NumberTHC89165
Shank Width (mm)31.75mm
Shank Height (Decimal Inch)1.2500"
Shank Height (mm)31.75mm
Tool Entering Angle ( Degree)95 Degree
ApplicationExternal Turning | Facing
HandLeft Hand
Insert Holding MethodMulti-Lock Clamp and Lock Pin
Insert Shape80 Degree Diamond
MaterialSteel

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Hand of Holder:
Left-Hand
Toolholder Style:
MCLN
Rake:
Negative;Series=MLTH
Lead Angle:
95°
Shank Width (Decimal Inch):
1.2500"
Shank Width (mm):
31.75mm
Shank Height (Decimal Inch):
1.2500"
Shank Height (mm):
31.75mm
