Features:

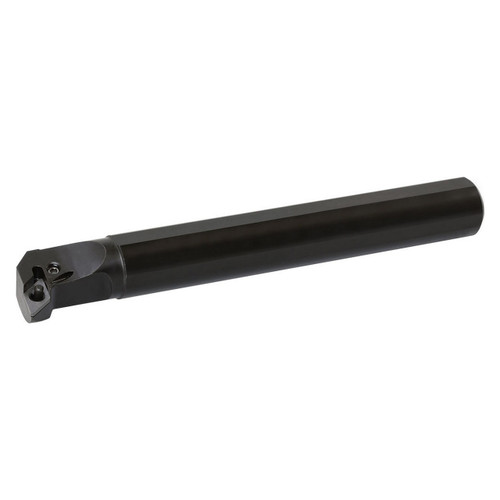

- ~0 (Axial), -0 (Radial) Rake angle general purpose boring bar
- Great for boring, internal facing applications
- Compatible with Left-Hand CPMT32, CPMH32, CPMB32, CPGB32 inserts
Product Specifications
| EDP Number | THC89269 |
| Connection Diameter (Decimal Inch) | 1.0000" |
| Connection Diameter (mm) | 25.40mm |
| Minimum Bore Diameter (Decimal Inch) | 1.3386" |
| Minimum Bore Diameter (mm) | 34.00mm |
| Tool Entering Angle ( Degree) | 95 Degree |
| Application | Boring | Internal Facing |
| Bar Type | Steel Shank |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Shape | 80 Degree Diamond |
| Material | Steel |
| Rake | Positive |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
S...SCLP
Series:
GPBB;Minimum Bore Diameter (Decimal Inch)=1.3386"""
Minimum Bore Diameter (mm):
34.00mm
Hand of Holder:
Right-Hand
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Through Coolant:
No
