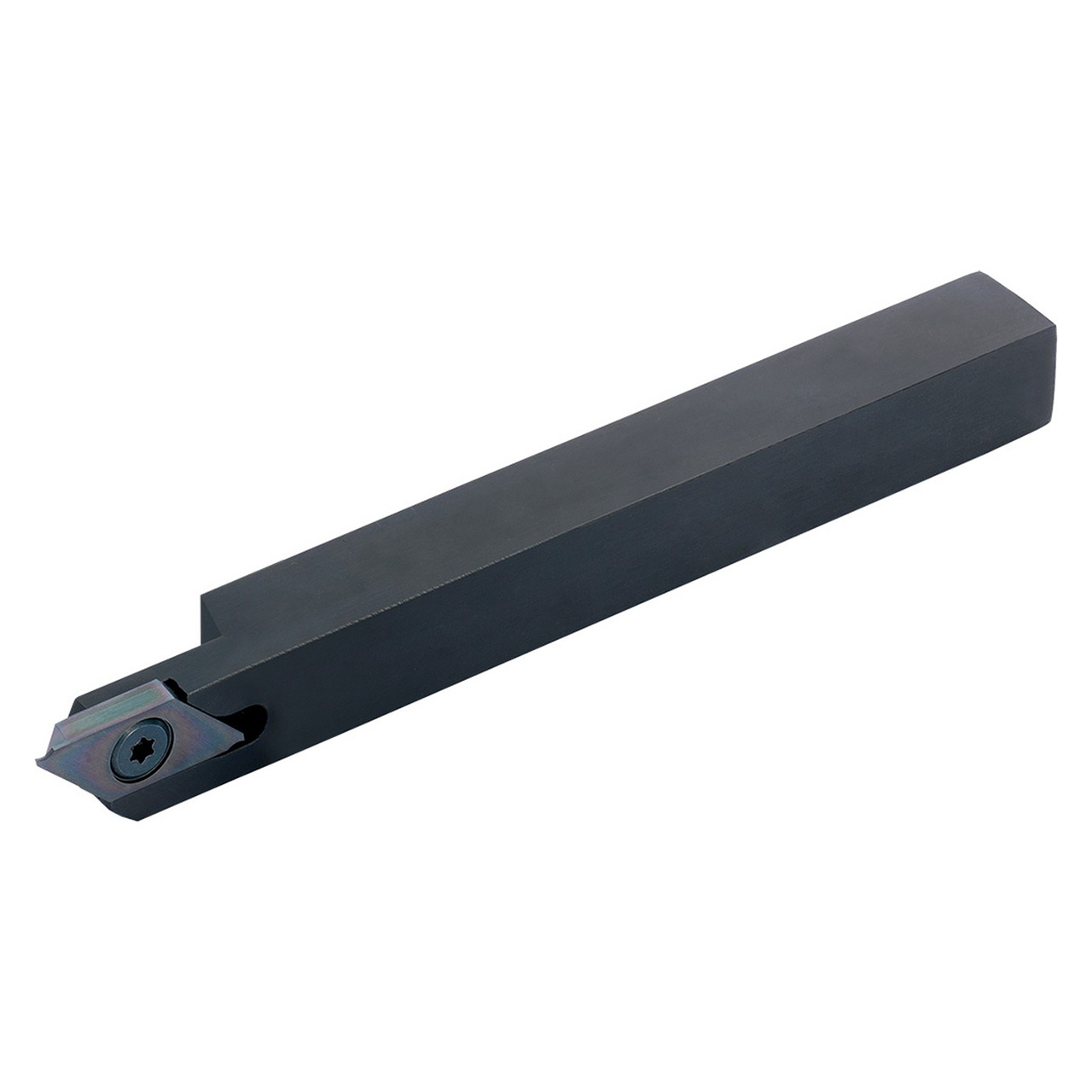

Kyocera Precision Tools THC89775 | KTKFSR816JX 0.6299" Diameter x 0.3150" Max Depth of Cut x 0.5000" Shank Width Steel Cut-Off Toolholder

$192.28 $159.59
(You save $32.69)
Brand:
Kyocera Precision Tools
Hand of Holder:
Right-Hand
Maximum Depth of Cut (Decimal Inch):
0.3150"
Maximum Depth of Cut (mm):
8.00mm
Series:
KTKF;Toolholder Style=KTKFS-JX"
Shank Height (Decimal Inch):
0.5000"
Shank Height (mm):
12.70mm
interval quantity:
1
SKU:
23231231
UPC:
Weight:
0.28 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Features:

  • Right-Hand KTKFS-JX toolholder
  • Application : cut-off
  • Clamp screw insert holding design
  • Compatible with Right-Hand TKFS16R inserts

Product Specifications
EDP NumberTHC89775
Shank Width (mm)12.70mm
Max Depth of Cut (Decimal Inch)0.3150"
Max Depth of Cut (mm)8.00mm
Maximum Cut-Off Diameter (Decimal Inch)0.6299"
Maximum Cut-Off Diameter (mm)16.00mm
Cutting Width (Decimal Inch)0.0591 - 0.0787"
Cutting Width (mm)1.50 - 2.00mm
Cutting Width Minimum (Decimal Inch)0.0591"
Cutting Width Minimum (mm)1.50mm
Cutting Width Maximum (Decimal Inch)0.0787"
Cutting Width Maximum (mm)2.00mm
Shank Height (Decimal Inch)0.5000"
Shank Height (mm)12.70mm
ApplicationCut-Off | Small Parts Machining
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
