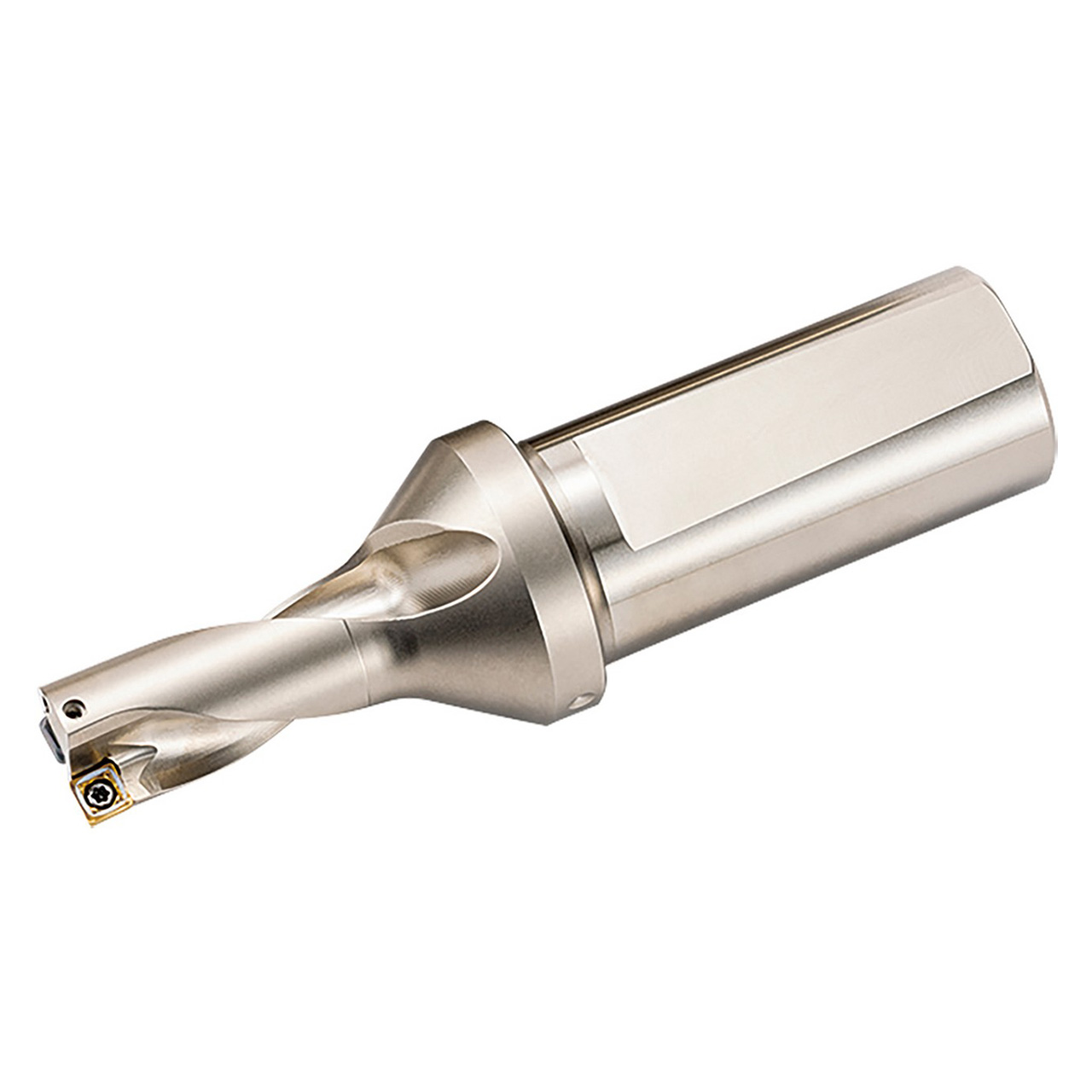

Features:

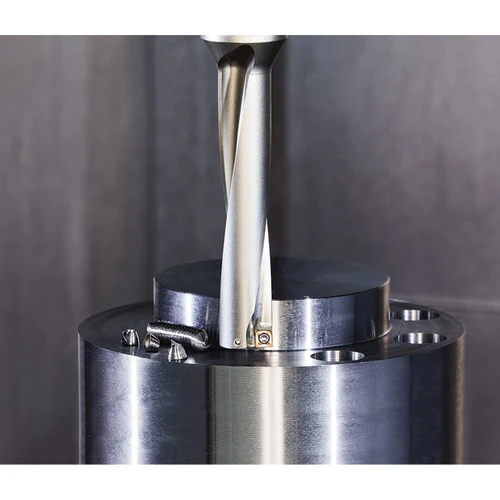

- Economical inserts with 4 cutting edges and excellent chip evacuation

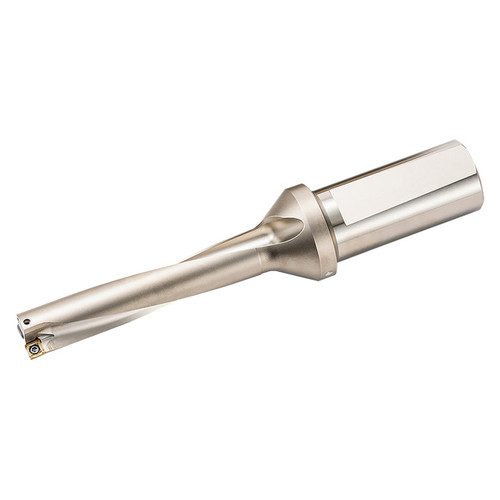

- 2xD to 6xD drilling lineup with 4 chipbreakers for various machining applications
- High speed and highly efficient machining with the combination of a CVD outer insert and PVD inner insert
- Excellent hole accuracy with a highly rigid design for better chatter resistance
Product Specifications
| EDP Number | THD11721 |
| Cutting Diameter (Decimal Inch) | 0.7500" |
| Cutting Diameter (mm) | 19.05mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.7500" |
| Cutting Diameter Minimum (mm) | 19.05mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.7500" |
| Cutting Diameter Maximum (mm) | 19.05mm |
| Connection Diameter (Decimal Inch) | 1.0000" |
| Connection Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.2598" |
| Contact Surface Diameter Machine Side (mm) | 32.00mm |
| Usable Length (Decimal Inch) | 1.5000" |
| Usable Length (mm) | 38.10mm |
| Application | Drilling |
| Coolant Through (Yes/No) | Yes |
| Drill Depth by Diameter Ratio | 2xD |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 2 |
| Shank Type | Standard Length |
| Weldon Flat | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Drill Style:
DRV
Drill Diameter (Decimal Inch):
0.7500
Drill Diameter (mm):
19.05
Maximum Drill Depth (Decimal Inch):
1.5000
Maximum Drill Depth (mm):
38.10
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.0000
Shank Diameter (mm):
25.40
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
2xD
