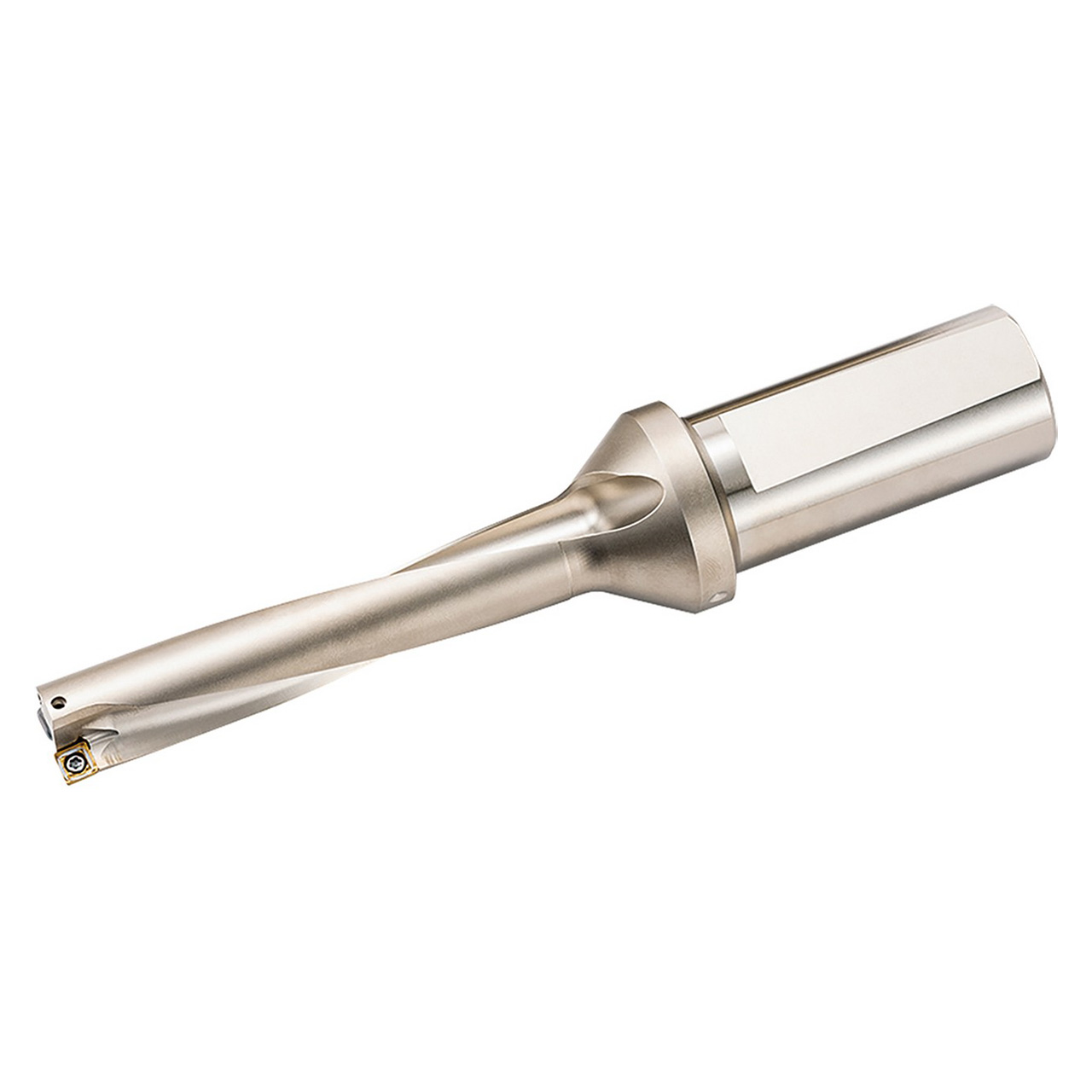

Kyocera Precision Tools THD11865 | S150DRV1312511 1.3126" Diameter x 6.5630" Usable Length 2 Flute Steel Indexable Insert Drill

$976.11 $810.17
(You save $165.94)
Brand:
Kyocera Precision Tools
Drill Style:
DRV
Drill Diameter (Decimal Inch):
1.3126
Drill Diameter (mm):
33.34
Maximum Drill Depth (Decimal Inch):
6.5630
Maximum Drill Depth (mm):
166.70
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.5000
Shank Diameter (mm):
38.10
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
5xD
interval quantity:
1
SKU:
23232404
UPC:
Weight:
0.39 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Excellent drilling precision with less vibration in cutting diameter
  • Economical inserts with 4 cutting edges
  • Excellent chip evacuation with 6D maximum deep-hole drilling
  • High speed and highly efficient machining with the combination of CVD (Outer edge) and PVD (Inner edge) inserts

Product Specifications
EDP NumberTHD11865
Cutting Diameter (Decimal Inch)1.3126"
Cutting Diameter (mm)33.34mm
Cutting Diameter Minimum (Decimal Inch)1.3126"
Cutting Diameter Minimum (mm)33.34mm
Cutting Diameter Maximum (Decimal Inch)1.3126"
Cutting Diameter Maximum (mm)33.34mm
Connection Diameter (Decimal Inch)1.5000"
Connection Diameter (mm)38.10mm
Contact Surface Diameter Machine Side (Decimal Inch)1.9291"
Contact Surface Diameter Machine Side (mm)49.00mm
Usable Length (Decimal Inch)6.5630"
Usable Length (mm)166.70mm
ApplicationDrilling
Coolant Through (Yes/No)Yes
Drill Depth by Diameter Ratio5xD
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeStandard Length
Weldon FlatYes
