Features:

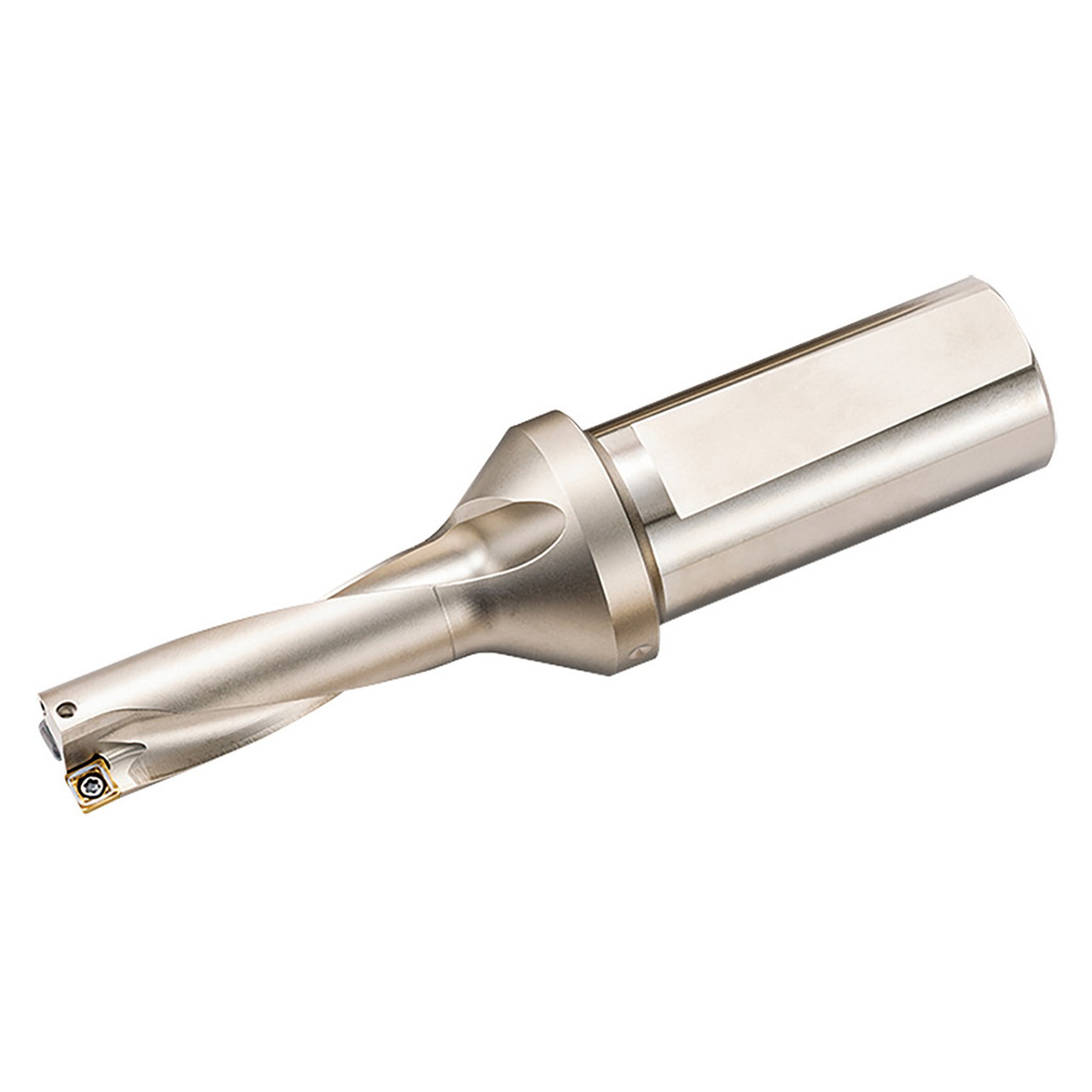

Product Specifications
| EDP Number | THD11897 |
| Cutting Diameter (Decimal Inch) | 0.5311" |
| Cutting Diameter (mm) | 13.49mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.5311" |
| Cutting Diameter Minimum (mm) | 13.49mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.5311" |
| Cutting Diameter Maximum (mm) | 13.49mm |
| Connection Diameter (Decimal Inch) | 0.7500" |
| Connection Diameter (mm) | 19.05mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.0630" |
| Contact Surface Diameter Machine Side (mm) | 27.00mm |
| Usable Length (Decimal Inch) | 1.5941" |
| Usable Length (mm) | 40.49mm |
| Application | Drilling |
| Coolant Through (Yes/No) | Yes |
| Drill Depth by Diameter Ratio | 3xD |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 2 |
| Shank Type | Standard Length |
| Weldon Flat | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Drill Style:
DRV
Drill Diameter (Decimal Inch):
0.5311
Drill Diameter (mm):
13.49
Maximum Drill Depth (Decimal Inch):
1.5941
Maximum Drill Depth (mm):
40.49
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
0.7500
Shank Diameter (mm):
19.05
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
3xD
interval quantity:
1
