Features:

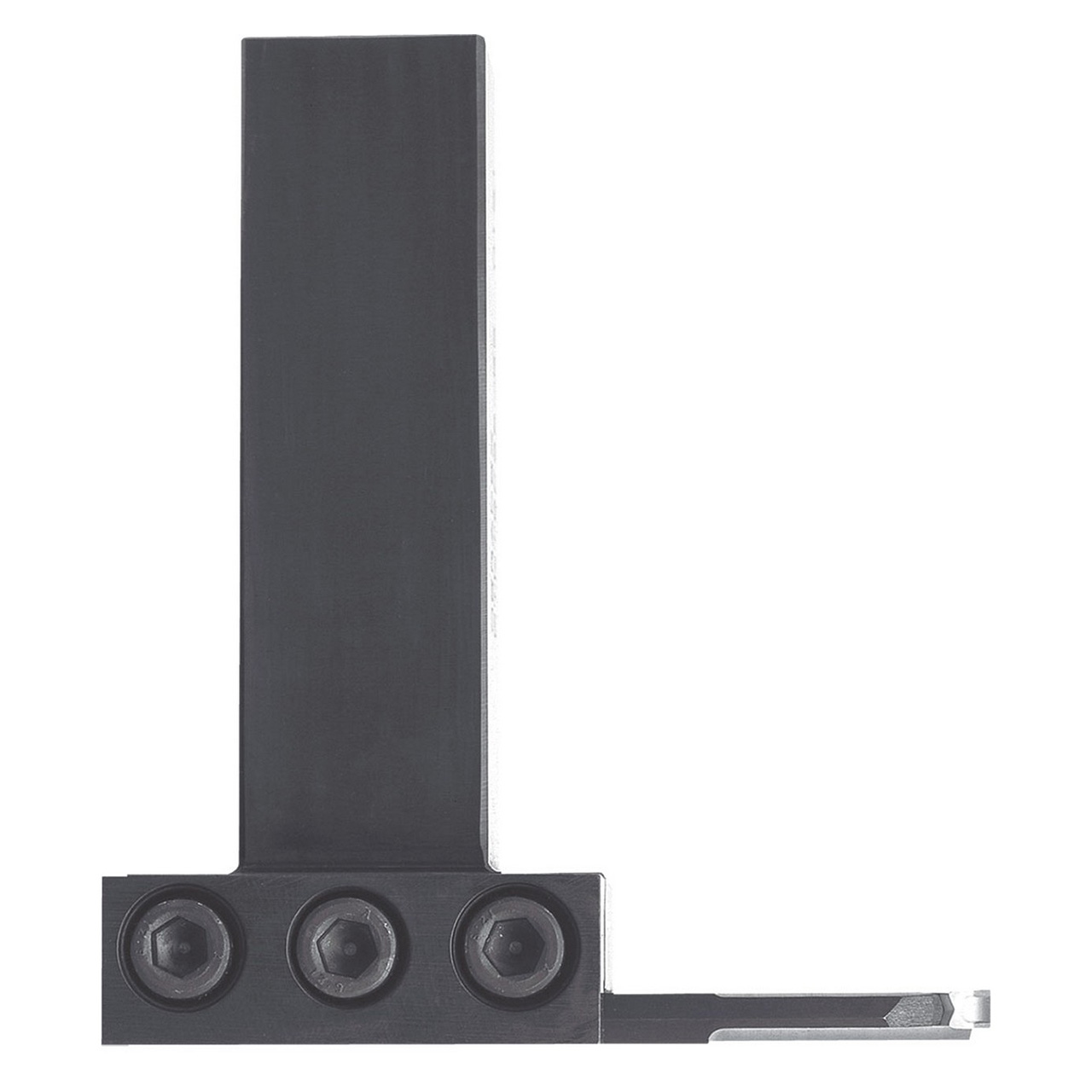

- Left-Hand face grooving tool block
- Max depth of cut 25mm
- Compatible with toolholder KTKTB and FTK4 inserts
Product Specifications
| EDP Number | THF05105 |
| Max Depth of Cut (Decimal Inch) | 0.9843" |
| Max Depth of Cut (mm) | 25.00mm |
| Cutting Width (Decimal Inch) | 0.1575" |
| Cutting Width (mm) | 4.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1575" |
| Cutting Width Minimum (mm) | 4.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1575" |
| Cutting Width Maximum (mm) | 4.00mm |
| Minimum Face Groove Diameter (Decimal Inch) | 2.5591'' |
| Minimum Face Groove Diameter (mm) | 65.00mm |
| [DAXX] Maximum Face Groove Diameter (Decimal Inch) | 3.9370" |
| Maximum Face Groove Diameter (mm) | 100.00mm |
| Tool Entering Angle ( Degree) | 1.5941 Degree |
| Application | Face Grooving |
| Grooving Type | Face Grooving |
| Hand | Left Hand |
| Insert Holding Method | Self-Clamp |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Minimum Groove Width (Decimal Inch):
2.5591"
Minimum Groove Width (mm):
65.00mm
Maximum Insert Width (Decimal Inch):
0.1575"
Maximum Insert Width (mm):
4.00mm
Minimum Insert Width (Decimal Inch):
0.1575"
Minimum Insert Width (mm):
4.00mm
Maximum Depth of Cut (Decimal Inch):
0.9843"
Maximum Depth of Cut (mm):
25.00mm
Blade Style:
KFTB
Series:
KFTB
