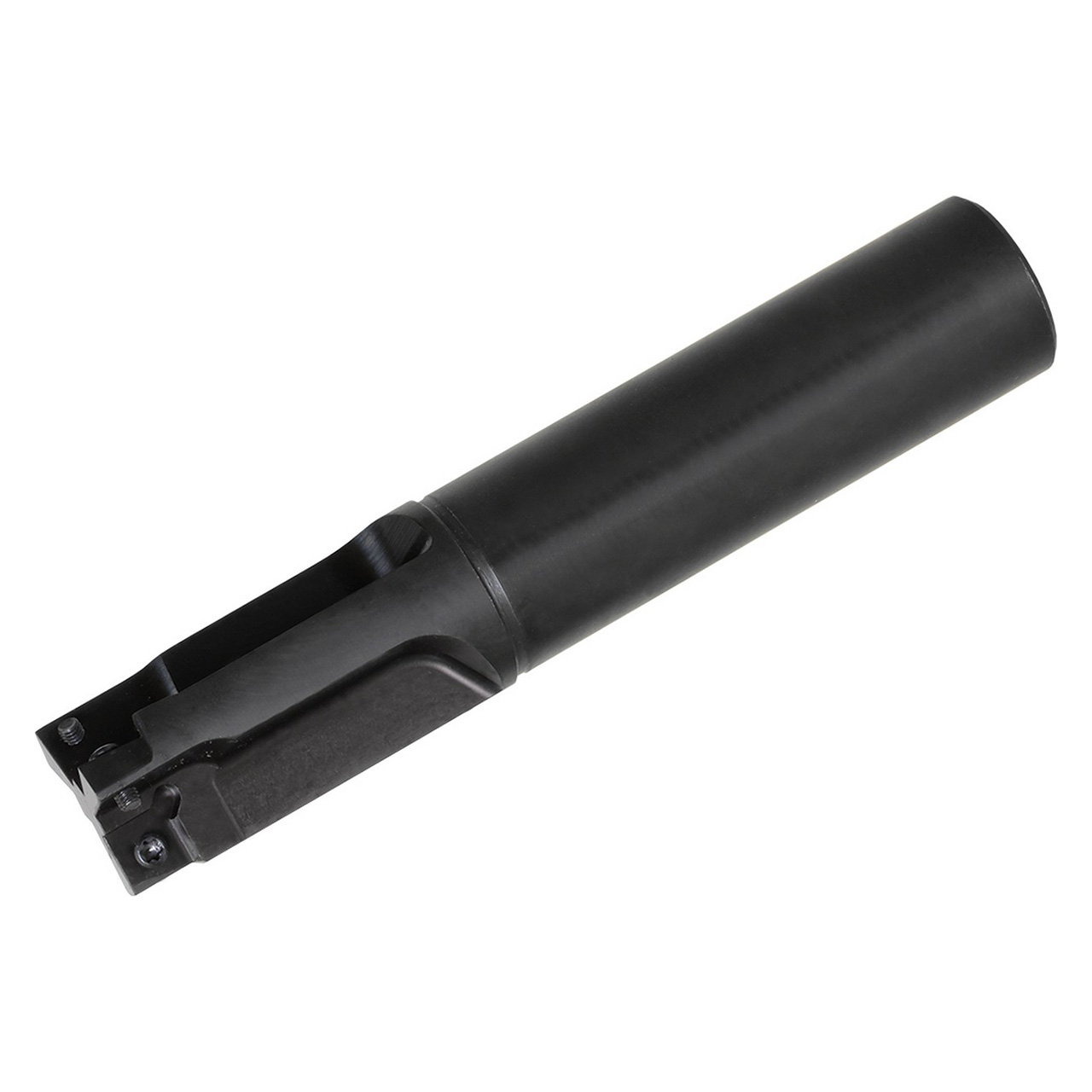

Kyocera Precision Tools THN02036 | MEF32S25 0.6102-1.2598" Diameter x 89 Degree Angle 3 Flute Steel Indexable End Mill

$293.94
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
39/64 - 1-17/64"
Cutting Diameter (Decimal Inch):
0.6102 - 1.2598"
Cutting Diameter (mm):
15.50 - 32.00mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
0.9843"
Shank Diameter (mm):
25.00mm
Number of Cutter Inserts:
3
Toolholder Style:
MEF
SKU:
23233026
Weight:
1.33 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Right-Hand, standard length, 89 Degree lead angle end mill
  • Bolt countersinking (M20), shouldering, facing applications
  • Compatible with SPMT090304E-Z, SPMT090308E-Z inserts

Product Specifications
EDP NumberTHN02036
Cutting Diameter (Decimal Inch)0.6102 - 1.2598"
Cutting Diameter (mm)15.50 - 32.00mm
Cutting Diameter Minimum (Decimal Inch)0.6102"
Cutting Diameter Minimum (mm)15.50mm
Cutting Diameter Maximum (Decimal Inch)1.2598"
Cutting Diameter Maximum (mm)32.00mm
Connection Diameter (Decimal Inch)0.9843"
Connection Diameter (mm)25.00mm
Tool Entering Angle ( Degree)3.7799 Degree
ApplicationBolt Countersinking | Facing | Shouldering
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes3
Number of Inserts3
Shank TypeStandard Length

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
39/64 - 1-17/64"
Cutting Diameter (Decimal Inch):
0.6102 - 1.2598"
Cutting Diameter (mm):
15.50 - 32.00mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
0.9843"
Shank Diameter (mm):
25.00mm
Number of Cutter Inserts:
3
Toolholder Style:
MEF
