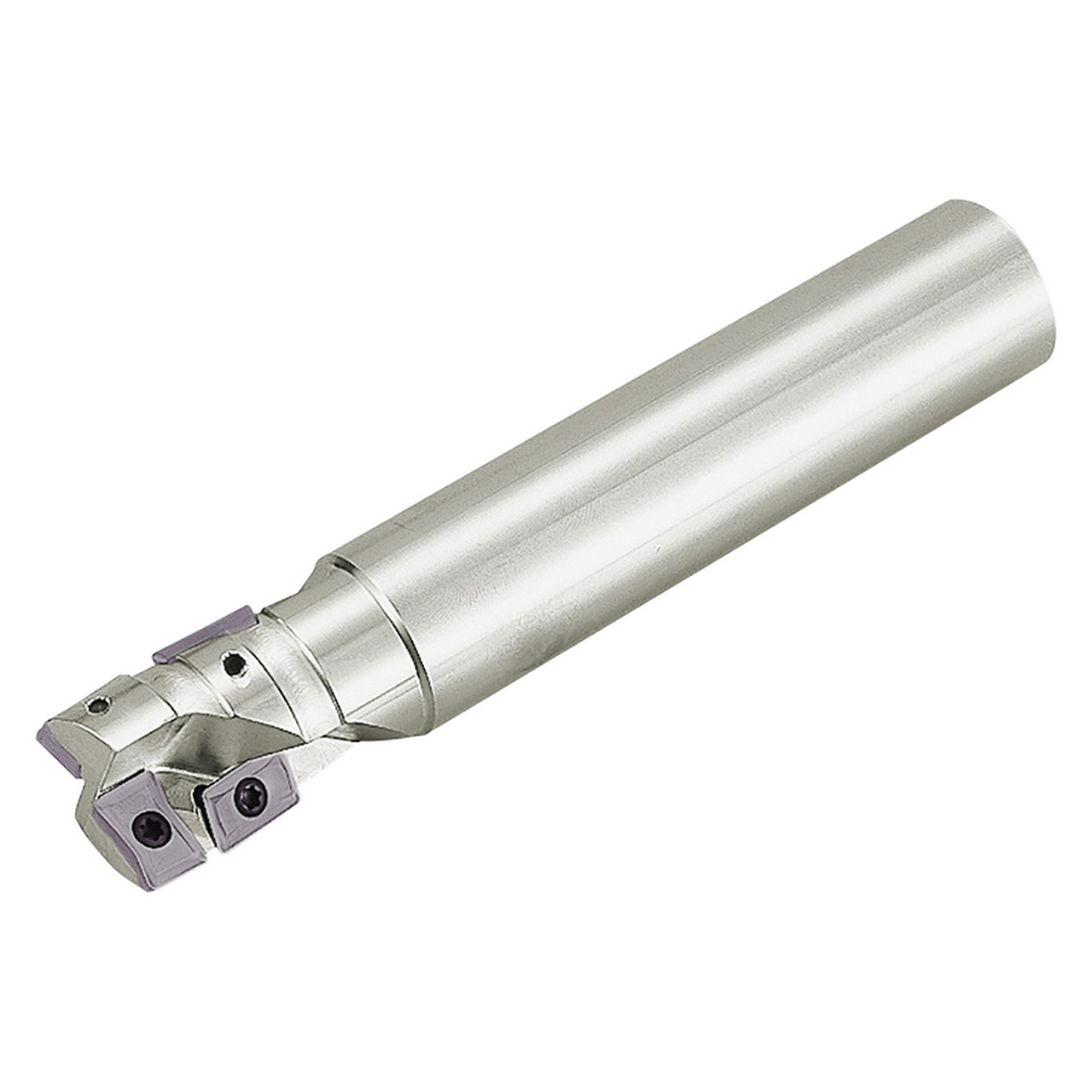

Features:
- Silver-coated multi-functional end mills with increased stability
- Low cutting resistance and great chip evacuation even during ramping and plunging applications
- Compatible with (6) JOMT160408ER-D side edge inserts, (1) GOMT160408ER-D bottom edge inserts
Product Specifications
| EDP Number | THN02601 |
| Maximum Depth of Cut (Decimal Inch) | 0.7480" |
| Cutting Diameter (Decimal Inch) | 0.6693" |
| Cutting Diameter (mm) | 17.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.6693" |
| Cutting Diameter Minimum (mm) | 17.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.6693" |
| Cutting Diameter Maximum (mm) | 17.00mm |
| Connection Diameter (Decimal Inch) | 0.6299" |
| Connection Diameter (mm) | 16.00mm |
| Tool Entering Angle ( Degree) | 5.6689 Degree |
| Application | Facing | Helical Milling | Plunging | Pocketing | Ramping | Shouldering | Slotting |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 4 |
| Shank Type | Standard Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
43/64"
Cutting Diameter (Decimal Inch):
0.6693"
Cutting Diameter (Decimal Inch):
17.00mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16.00mm
Lead Angle:
90°
Series:
MEY;Through Coolant=No"
