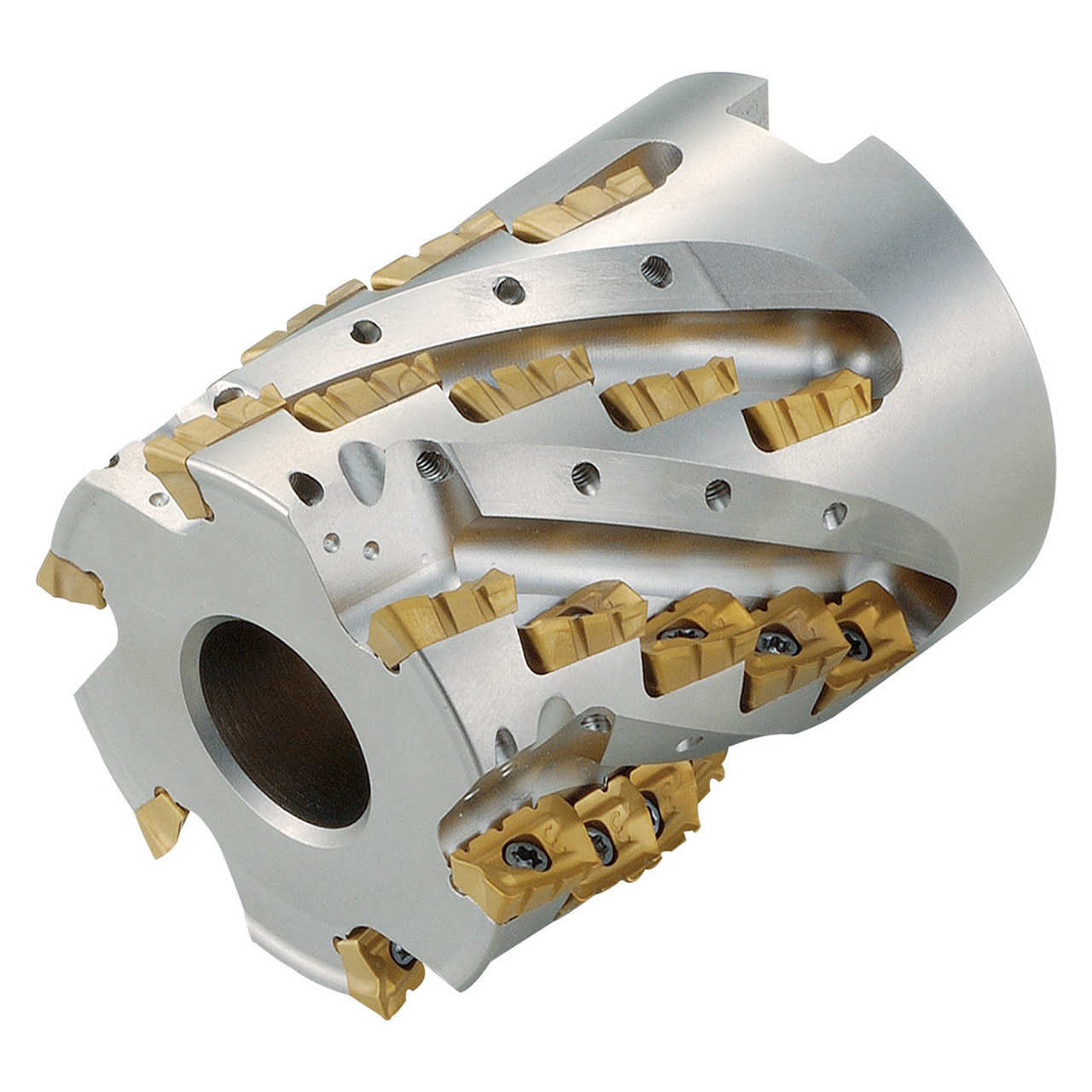

Kyocera Precision Tools THN04006 | MECH063R1734T 2.4803" Diameter x 1.7717" Max Depth of Cut 4 Flute Steel Helical Shell Mill

$906.95
Brand:
Kyocera Precision Tools
Cutting Diameter (Decimal Inch):
2.4803"
Cutting Diameter (mm):
63.00mm
Arbor Hole Diameter (Decimal Inch):
1.0000"
Arbor Hole Diameter (mm):
25.40mm
Lead Angle:
90°
Series:
MEC;Through Coolant=No"
Maximum Depth of Cut (Decimal Inch):
1.7717"
Maximum Depth of Cut (mm):
45.00mm
Cutting Direction:
Right-Hand
SKU:
23233221
Weight:
2.72 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Low cutting force and reduced chattering for high-efficiency milling
  • Great for various milling applications
  • Compatible with: BDMT170408ER-N3, BDMT170408ER-N4 style inserts

Product Specifications
EDP NumberTHN04006
Maximum Depth of Cut (Decimal Inch)1.7717"
Cutting Diameter (Decimal Inch)2.4803"
Cutting Diameter (mm)63.00mm
Cutting Diameter Minimum (Decimal Inch)2.4803"
Cutting Diameter Minimum (mm)63.00mm
Cutting Diameter Maximum (Decimal Inch)2.4803"
Cutting Diameter Maximum (mm)63.00mm
Cutting Diameter Maximum (mm)1.0000"
Connection Bore Diameter (mm)25.40mm
Tool Entering Angle ( Degree)5.9055 Degree
ApplicationFacing | Shouldering
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes4
Number of Inserts12

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Cutting Diameter (Decimal Inch):
2.4803"
Cutting Diameter (mm):
63.00mm
Arbor Hole Diameter (Decimal Inch):
1.0000"
Arbor Hole Diameter (mm):
25.40mm
Lead Angle:
90°
Series:
MEC;Through Coolant=No"
Maximum Depth of Cut (Decimal Inch):
1.7717"
Maximum Depth of Cut (mm):
45.00mm
Cutting Direction:
Right-Hand
