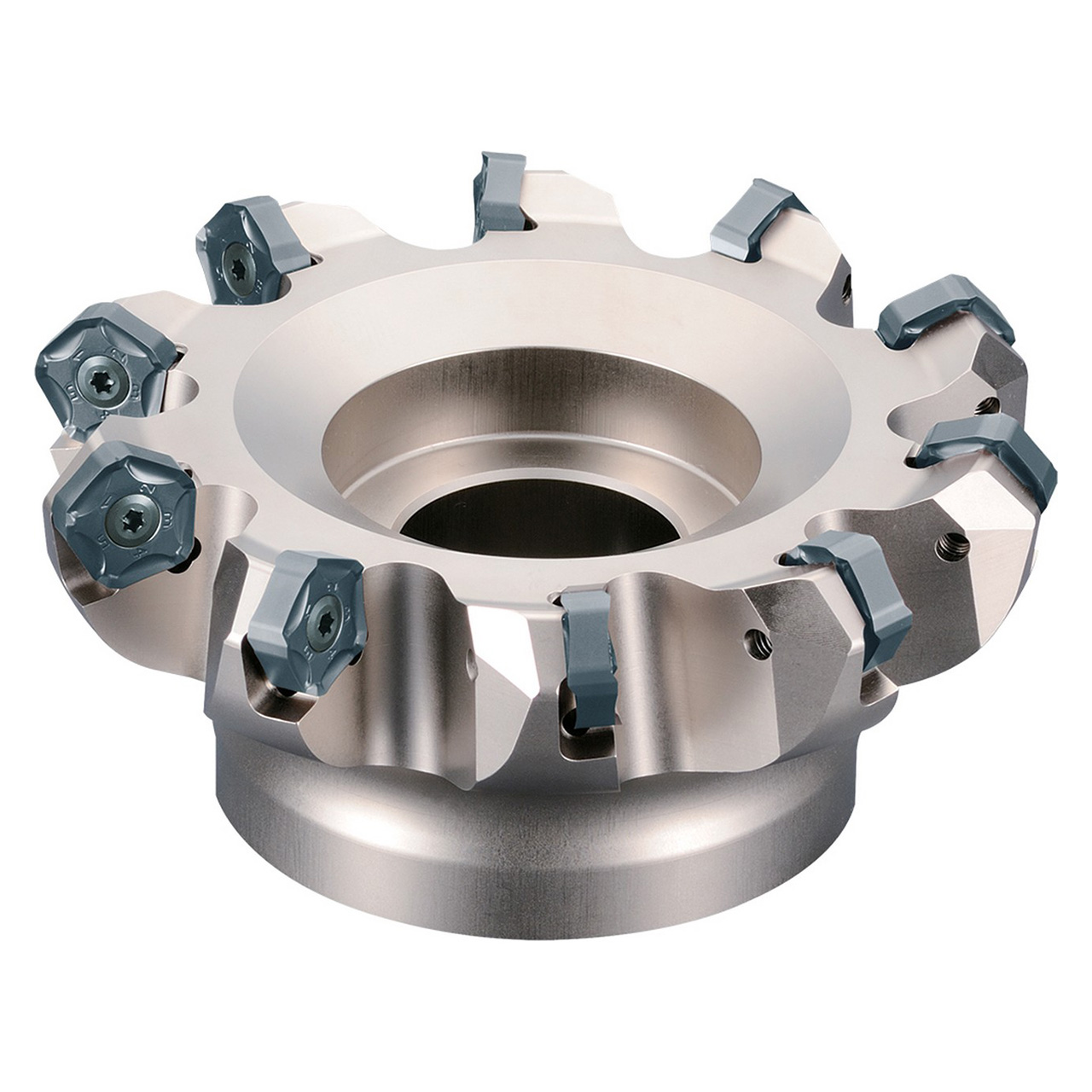

Features:
- 45 Degree Lead angle face mill
- Application: facing, chamfering
- Economical double-sided 10-edge inserts
- Reduced chattering with low cutting forces due to curved cutting edge design
- Suppresses fracturing with dual angle edge design
Product Specifications
| EDP Number | THN04485 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362" |
| Cutting Diameter (Decimal Inch) | 7.8740 - 8.3858" |
| Cutting Diameter (mm) | 200.00 - 213.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 7.8740" |
| Cutting Diameter Minimum (mm) | 200.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 8.3858" |
| Cutting Diameter Maximum (mm) | 213.00mm |
| Cutting Diameter Maximum (mm) | 2.3622" |
| Connection Bore Diameter (mm) | 60.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 5.5906" |
| Contact Surface Diameter Machine Side (mm) | 142.00mm |
| Tool Entering Angle ( Degree) | 45 Degree |
| Application | Chamfering, Facing |
| Cutter Pitch | Coarse Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 10 |
| Number of Inserts | 10 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
8-25/64"
Cutting Diameter (Decimal Inch):
8.3858"
Cutting Diameter (mm):
213.00mm
Maximum Depth of Cut (Inch):
15/64"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6mm
Arbor Hole Diameter (Inch):
2-23/64"
Arbor Hole Diameter (Decimal Inch):
2.3622"
Arbor Hole Diameter (mm):
60.00mm
Series:
MFPN;Cutter Style=MFPN"
Number of Cutter Inserts:
10
