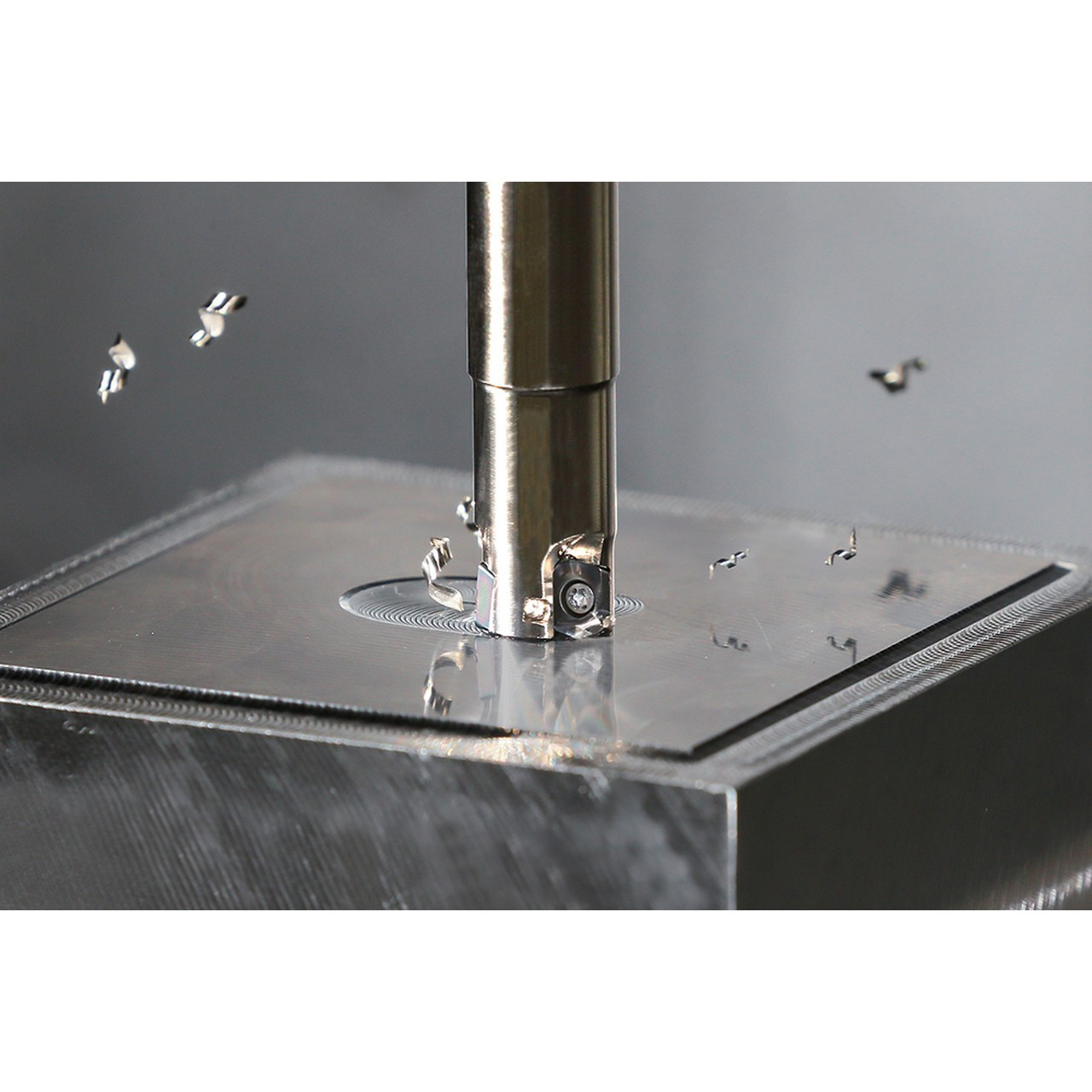

Features:
- Reduce cycle time during roughing applications
- Low resistance and durable design aids in chatter resistant machining
- Molded convex cutting edge controls initial impact when entering the workpiece
- Wide range of machining applications
- Can replace solid end mills to reduce machining costs
Product Specifications
| EDP Number | THN08245 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197" |
| Maximum Depth of Cut (mm) | 10.00mm |
| Cutting Diameter (Decimal Inch) | 0.2441 - 0.3937" |
| Cutting Diameter (mm) | 6.20 - 10.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.2441" |
| Cutting Diameter Minimum (mm) | 6.20mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.3937" |
| Cutting Diameter Maximum (mm) | 10.00mm |
| Connection Diameter (Decimal Inch) | 0.3937" |
| Connection Diameter (mm) | 10.00mm |
| Tool Entering Angle ( Degree) | 10 Degree |
| Application | Facing | Helical Milling | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 2 |
| Shank Type | Standard Length |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
25/64"
Cutting Diameter (Decimal Inch):
0.3937"
Cutting Diameter (mm):
10.00mm
Maximum Depth of Cut (Inch):
1/64"
Maximum Depth of Cut (Decimal Inch):
0.0197"
Maximum Depth of Cut (mm):
0.5mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
0.3937"
Shank Diameter (mm):
10.00mm
Number of Cutter Inserts:
2
Toolholder Style:
MFH
