Features:

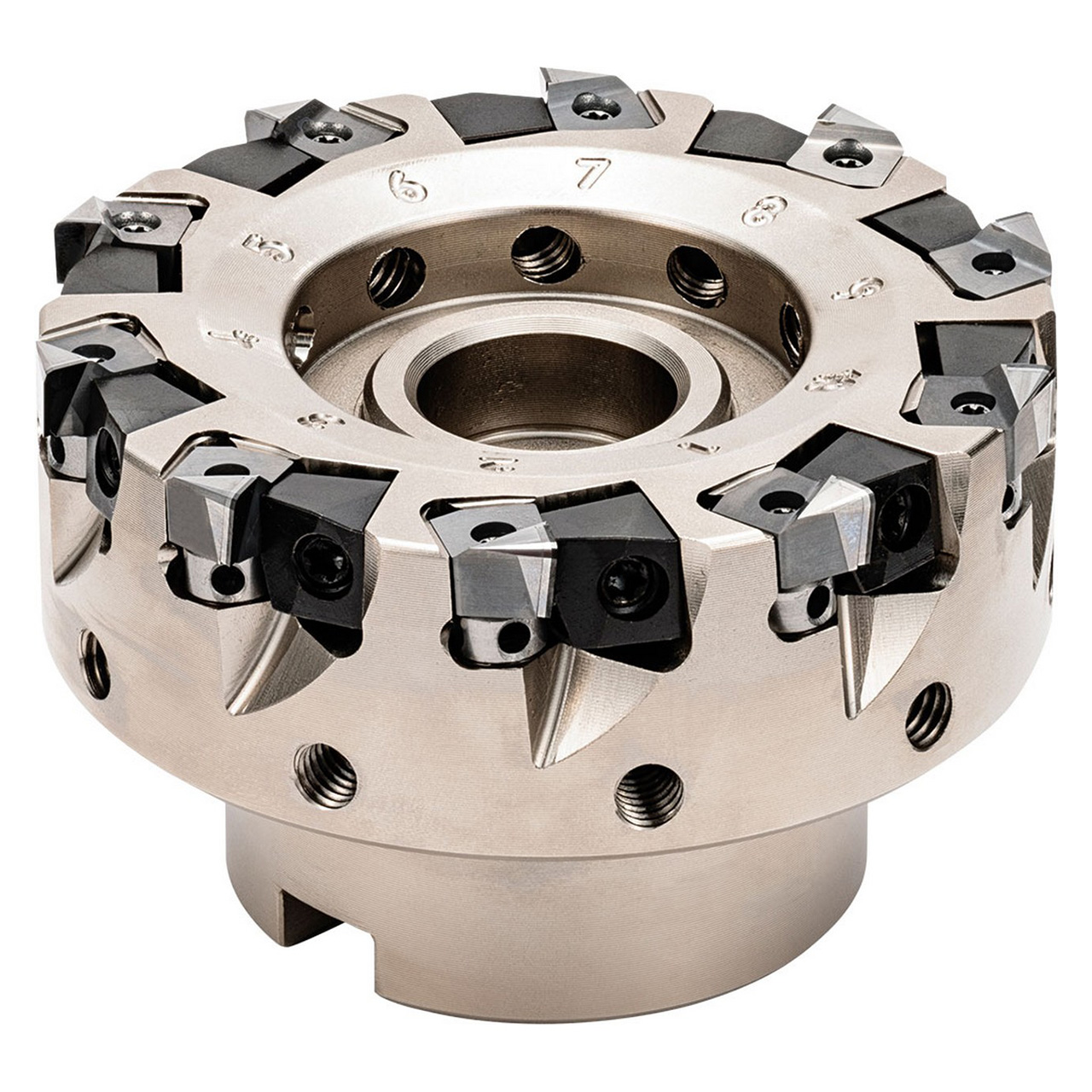

- 90 Degree Lead angle face mill

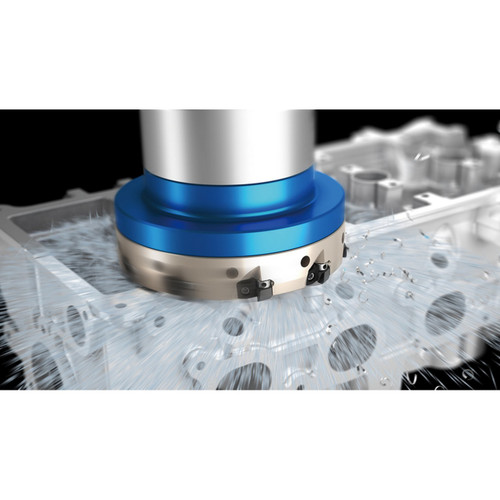

- Application: aluminum facing, finishing
- Low cutting forces minimize burrs and chipping for high quality machining
- Easily adjustable blade runout for efficient machining
- 3 different cutting edge designs
Product Specifications
| EDP Number | THN08276 |
| Maximum Depth of Cut (Decimal Inch) | 0.1811" |
| Maximum Depth of Cut (mm) | 10.00mm |
| Cutting Diameter (Decimal Inch) | 3.1496" |
| Cutting Diameter (mm) | 80.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 3.1496" |
| Cutting Diameter Minimum (mm) | 80.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 3.1496" |
| Cutting Diameter Maximum (mm) | 80.00mm |
| Cutting Diameter Maximum (mm) | 1.0000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.9685" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Tool Entering Angle ( Degree) | 90 Degree |
| Application | Facing, Finish Milling |
| Cutter Pitch | Standard Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw or Clamp |
| Material | Steel |
| Number of Flutes | 10 |
| Number of Inserts | 10 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
3-5/32"
Cutting Diameter (Decimal Inch):
3.1496"
Cutting Diameter (mm):
80.00mm
Maximum Depth of Cut (Inch):
3/16"
Maximum Depth of Cut (Decimal Inch):
0.1811"
Maximum Depth of Cut (mm):
4.6mm
Arbor Hole Diameter (Inch):
1"
Arbor Hole Diameter (Decimal Inch):
1.0000"
Arbor Hole Diameter (mm):
25.40mm
Series:
MFAH;Cutter Style=MFAH"
Number of Cutter Inserts:
10
