Features:

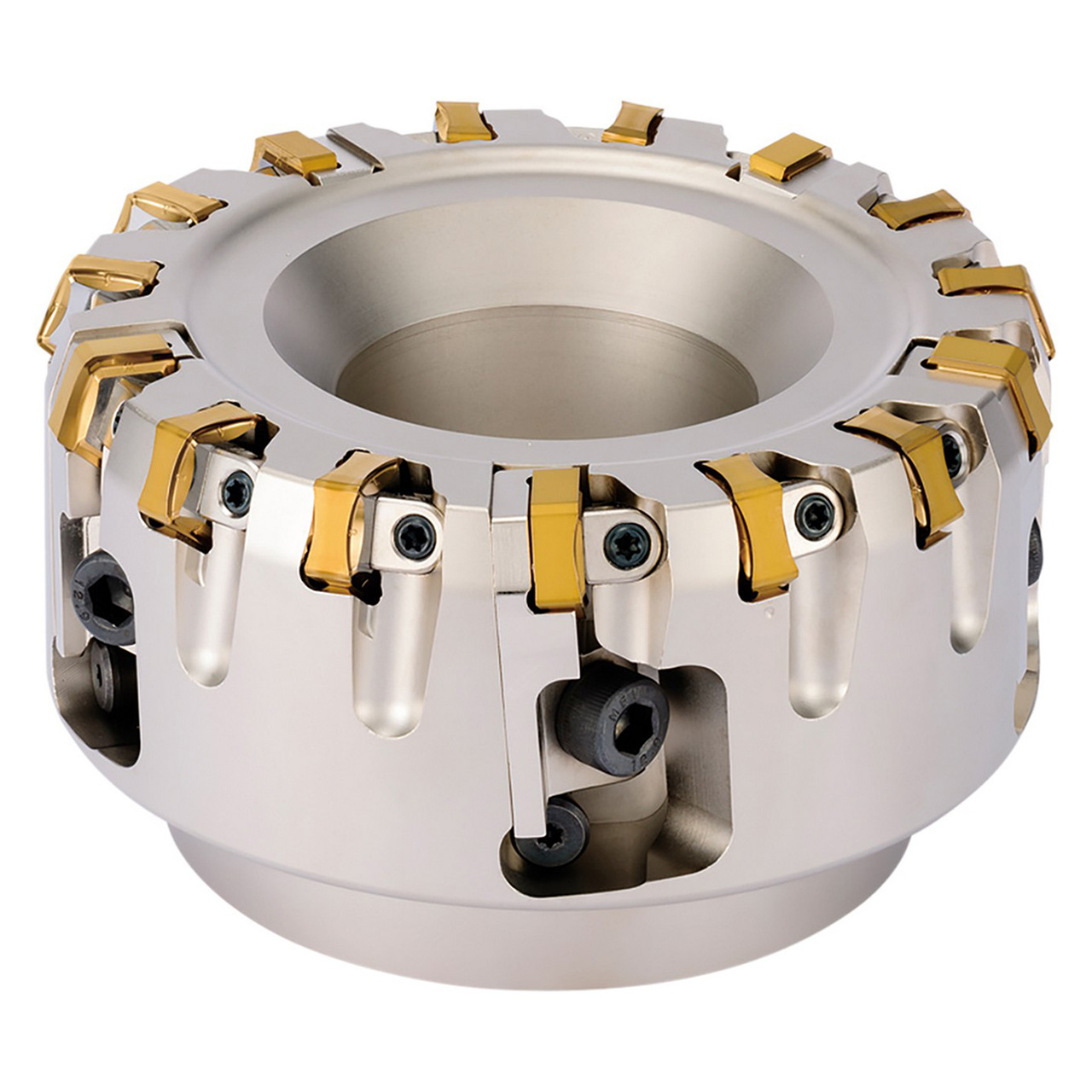

- 70 Degree Lead angle face mill
- Application: facing, cast iron milling
- High-speed and high-precision machining of cast iron
- Adjustable cutting edge height for improved surface finish
- Compatible with (15 (5 Adjustable Pockets)) PNMG11, PNEG11, PNEA11 style inserts
Product Specifications
| EDP Number | THN08340 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362" |
| Maximum Depth of Cut (mm) | 10.00mm |
| Cutting Diameter (Decimal Inch) | 4.9213 - 5.2756" |
| Cutting Diameter (mm) | 125.00 - 134.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 4.9213" |
| Cutting Diameter Minimum (mm) | 125.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 5.2756" |
| Cutting Diameter Maximum (mm) | 134.00mm |
| Cutting Diameter Maximum (mm) | 1.5748" |
| Connection Bore Diameter (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.9370" |
| Contact Surface Diameter Machine Side (mm) | 100.00mm |
| Tool Entering Angle ( Degree) | 70 Degree |
| Application | Facing |
| Cutter Pitch | Fine Pitch |
| Hand | Right Hand |
| Insert Holding Method | Wedge Lock |
| Material | Steel |
| Number of Flutes | 15 |
| Number of Inserts | 15 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
5-9/32"
Cutting Diameter (Decimal Inch):
5.2756"
Cutting Diameter (mm):
134.00mm
Maximum Depth of Cut (Inch):
15/64"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6mm
Arbor Hole Diameter (Inch):
1-37/64"
Arbor Hole Diameter (Decimal Inch):
1.5748"
Arbor Hole Diameter (mm):
40.00mm
Series:
MFK
Cutter Style:
MFK
Number of Cutter Inserts:
15
