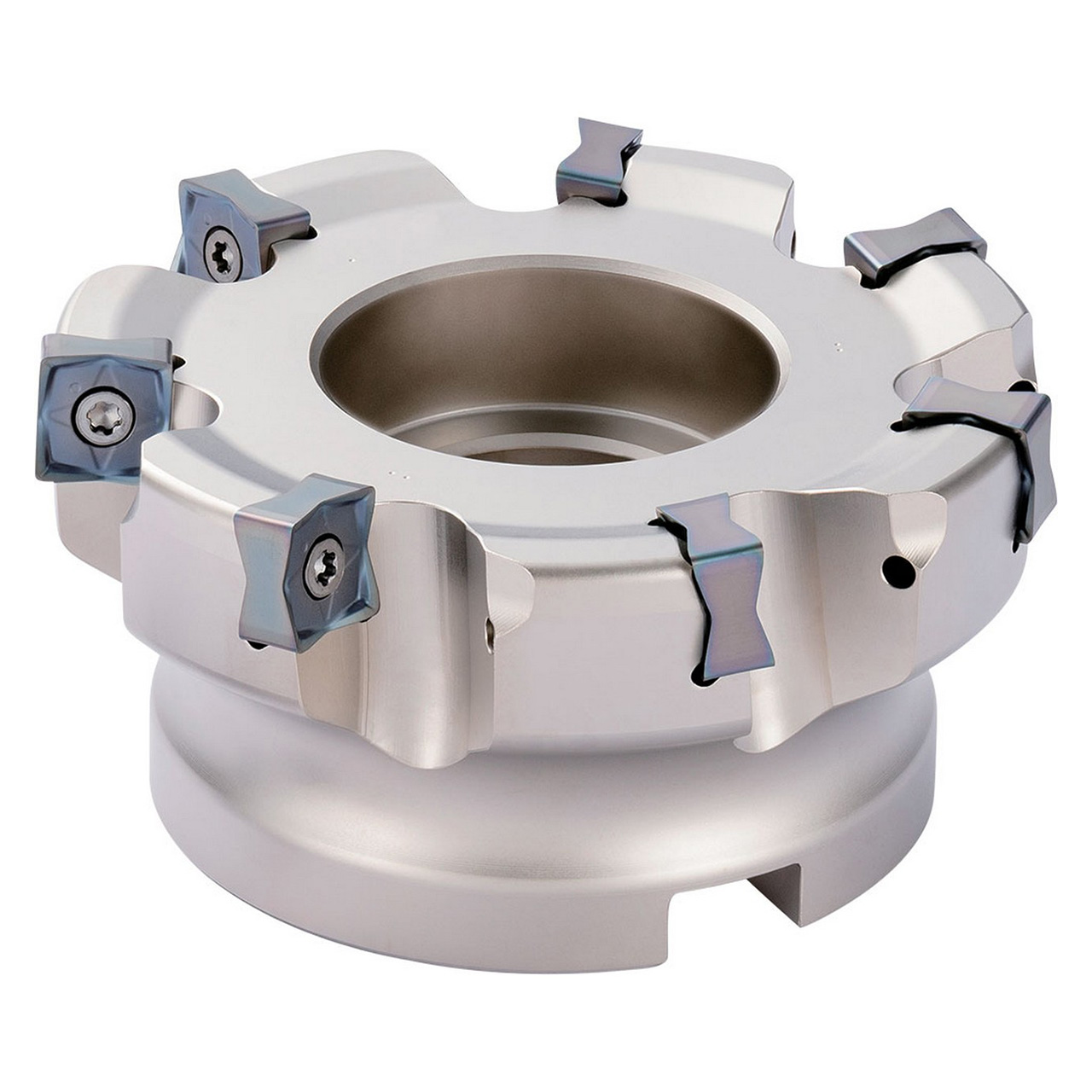

Features:
- 88 Degree Lead angle face mill
- Application: facing
- Economical inserts with 8 cutting edges
- Reduces cost in shoulder roughing
- Reduces chattering with low cutting force design
Product Specifications
| EDP Number | THN08412 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969" |
| Maximum Depth of Cut (mm) | 6.00mm |
| Cutting Diameter (Decimal Inch) | 3.1496 - 3.2284" |
| Cutting Diameter (mm) | 80.00 - 82.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 3.1496" |
| Cutting Diameter Minimum (mm) | 80.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 3.2284" |
| Cutting Diameter Maximum (mm) | 82.00mm |
| Cutting Diameter Maximum (mm) | 1.0000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.7559" |
| Contact Surface Diameter Machine Side (mm) | 70.00mm |
| Tool Entering Angle ( Degree) | 88 Degree |
| Application | Facing |
| Cutter Pitch | Extra Fine Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 9 |
| Number of Inserts | 9 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
3-15/64"
Cutting Diameter (Decimal Inch):
3.2284"
Cutting Diameter (mm):
82.00mm
Maximum Depth of Cut (Inch):
13/64"
Maximum Depth of Cut (Decimal Inch):
0.1969"
Maximum Depth of Cut (mm):
5mm
Arbor Hole Diameter (Inch):
1"
Arbor Hole Diameter (Decimal Inch):
1.0000"
Arbor Hole Diameter (mm):
25.40mm
Series:
MFSN;Cutter Style=MFSN"
Number of Cutter Inserts:
9
