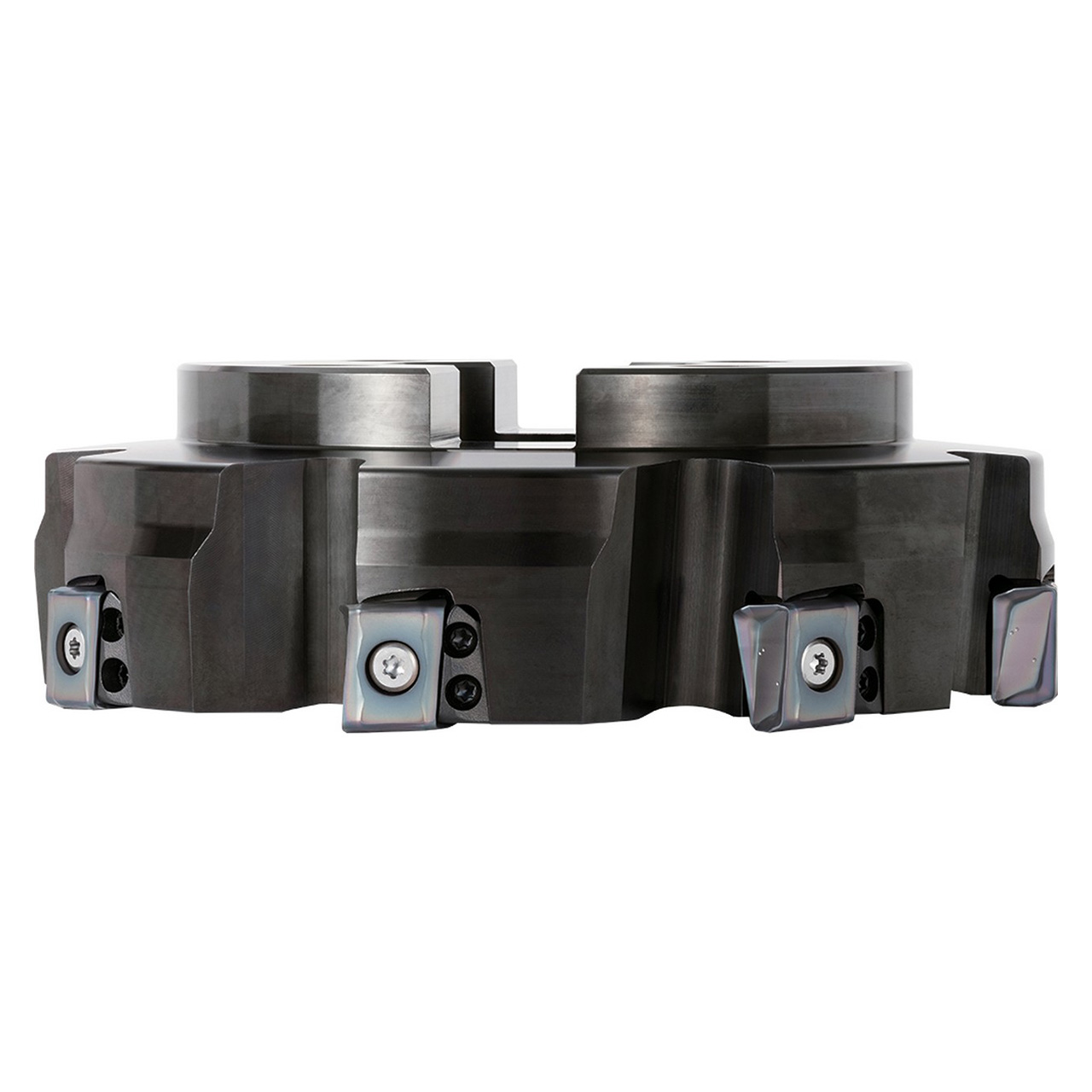

Features:
- 90 Degree Lead angle face mill
- Application: shouldering, facing
- Rigid, heavy milling with tough 4-edge inserts for large depths of cut and high feed rates
- Tangentially mounted inserts provide 2 cutting edges on both sides
- 20mm long inserts offer increased rigidity
Product Specifications
| EDP Number | THN08446 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874" |
| Maximum Depth of Cut (mm) | 64.00mm |
| Cutting Diameter (Decimal Inch) | 6.2992" |
| Cutting Diameter (mm) | 160.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 6.2992" |
| Cutting Diameter Minimum (mm) | 160.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 6.2992" |
| Cutting Diameter Maximum (mm) | 160.00mm |
| Cutting Diameter Maximum (mm) | 1.5748" |
| Connection Bore Diameter (mm) | 40.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 4.3307" |
| Contact Surface Diameter Machine Side (mm) | 110.00mm |
| Tool Entering Angle ( Degree) | 90 Degree |
| Application | Facing, Shouldering |
| Cutter Pitch | Standard Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 7 |
| Number of Inserts | 7 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
6-19/64"
Cutting Diameter (Decimal Inch):
6.2992"
Cutting Diameter (mm):
160.00mm
Maximum Depth of Cut (Inch):
25/32"
Maximum Depth of Cut (Decimal Inch):
0.7874"
Maximum Depth of Cut (mm):
20mm
Arbor Hole Diameter (Inch):
1-37/64"
Arbor Hole Diameter (Decimal Inch):
1.5748"
Arbor Hole Diameter (mm):
40.00mm
Series:
MFLN;Cutter Style=MFLN"
Number of Cutter Inserts:
7
