Features:

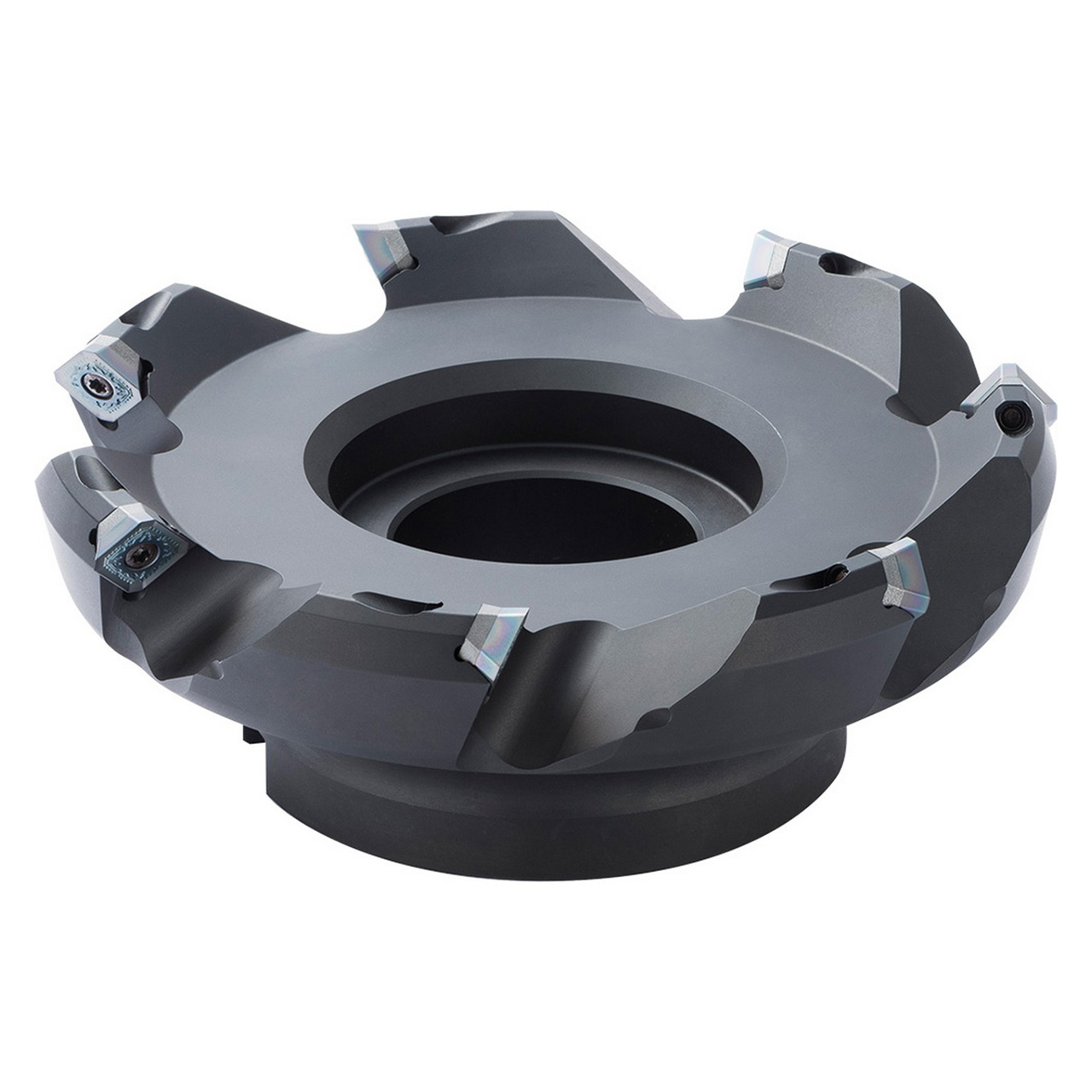

- 45 Degree Lead angle finishing face mill
- Delivers high quality surface finishes
- Longer tool life by reducing front edge runout
Product Specifications
| EDP Number | THN08584 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362" |
| Maximum Depth of Cut (mm) | 6mm |
| Cutting Diameter (Decimal Inch) | 3.1496 - 3.4921" |
| Cutting Diameter (mm) | 80.00 - 88.70mm |
| Cutting Diameter Minimum (Decimal Inch) | 3.1496" |
| Cutting Diameter Minimum (mm) | 80.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 3.4921" |
| Cutting Diameter Maximum (mm) | 88.70mm |
| Cutting Diameter Maximum (mm) | 1.0000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.7559" |
| Contact Surface Diameter Machine Side (mm) | 70.00mm |
| Tool Entering Angle ( Degree) | 45 Degree |
| Application | Chamfering, Facing |
| Cutter Pitch | Coarse Pitch |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 5 |
| Number of Inserts | 5 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
3-31/64"
Cutting Diameter (Decimal Inch):
3.4921"
Cutting Diameter (mm):
88.70mm
Maximum Depth of Cut (Inch):
15/64"
Maximum Depth of Cut (Decimal Inch):
0.2362"
Maximum Depth of Cut (mm):
6mm
Arbor Hole Diameter (Inch):
1"
Arbor Hole Diameter (Decimal Inch):
1.0000"
Arbor Hole Diameter (mm):
25.40mm
Series:
MFSE
Cutter Style:
MFSE
Number of Cutter Inserts:
5
interval quantity:
1
