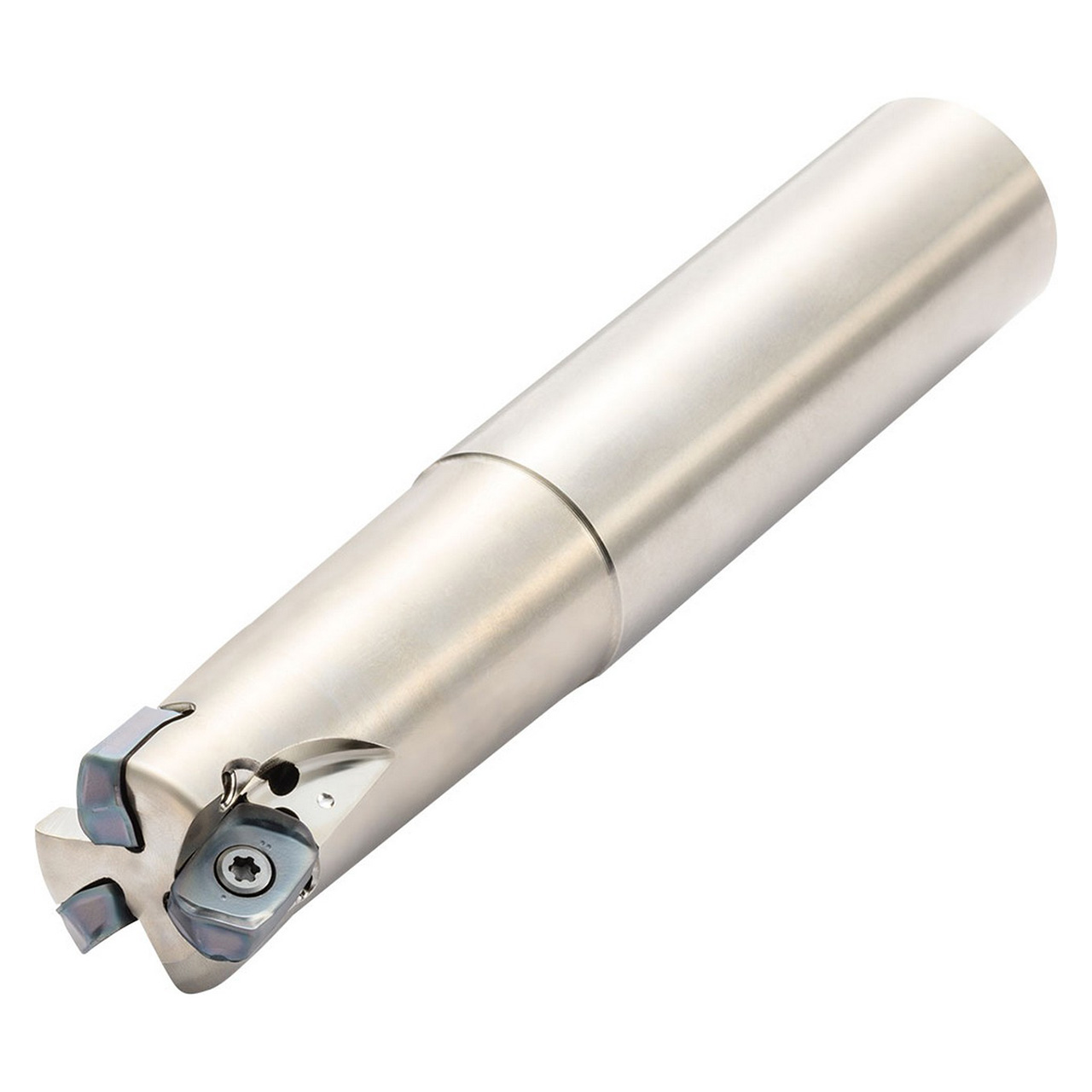

Features:
- Large D.O.C. dramatically improves machining efficiency
- Excellent performance in a wide range of applications, including automotive parts, difficult-to-cut materials, and molds
- Achieves high efficiency machining in various shouldering, slotting, helical milling, and ramping applications
- Convex cutting edge design reduces impact when entering workpiece
Product Specifications
| EDP Number | THN08620 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984" |
| Maximum Depth of Cut (mm) | 8.00mm |
| Cutting Diameter (Decimal Inch) | 0.8268 - 1.2598" |
| Cutting Diameter (mm) | 21.00 - 32.00mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.8268" |
| Cutting Diameter Minimum (mm) | 21.00mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.2598" |
| Cutting Diameter Maximum (mm) | 32.00mm |
| Connection Diameter (Decimal Inch) | 1.2598" |
| Connection Diameter (mm) | 32.00mm |
| Tool Entering Angle ( Degree) | 90 Degree |
| Application | Helical Milling | High Feed | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 5 |
| Number of Inserts | 5 |
| Shank Type | Standard Length |
| Weldon Flat | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
1-17/64"
Cutting Diameter (Decimal Inch):
1.2598"
Cutting Diameter (mm):
32.00mm
Maximum Depth of Cut (Inch):
3/32"
Maximum Depth of Cut (Decimal Inch):
0.0984"
Maximum Depth of Cut (mm):
2.5mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.2598"
Shank Diameter (mm):
32.00mm
Number of Cutter Inserts:
5
Toolholder Style:
MFH
