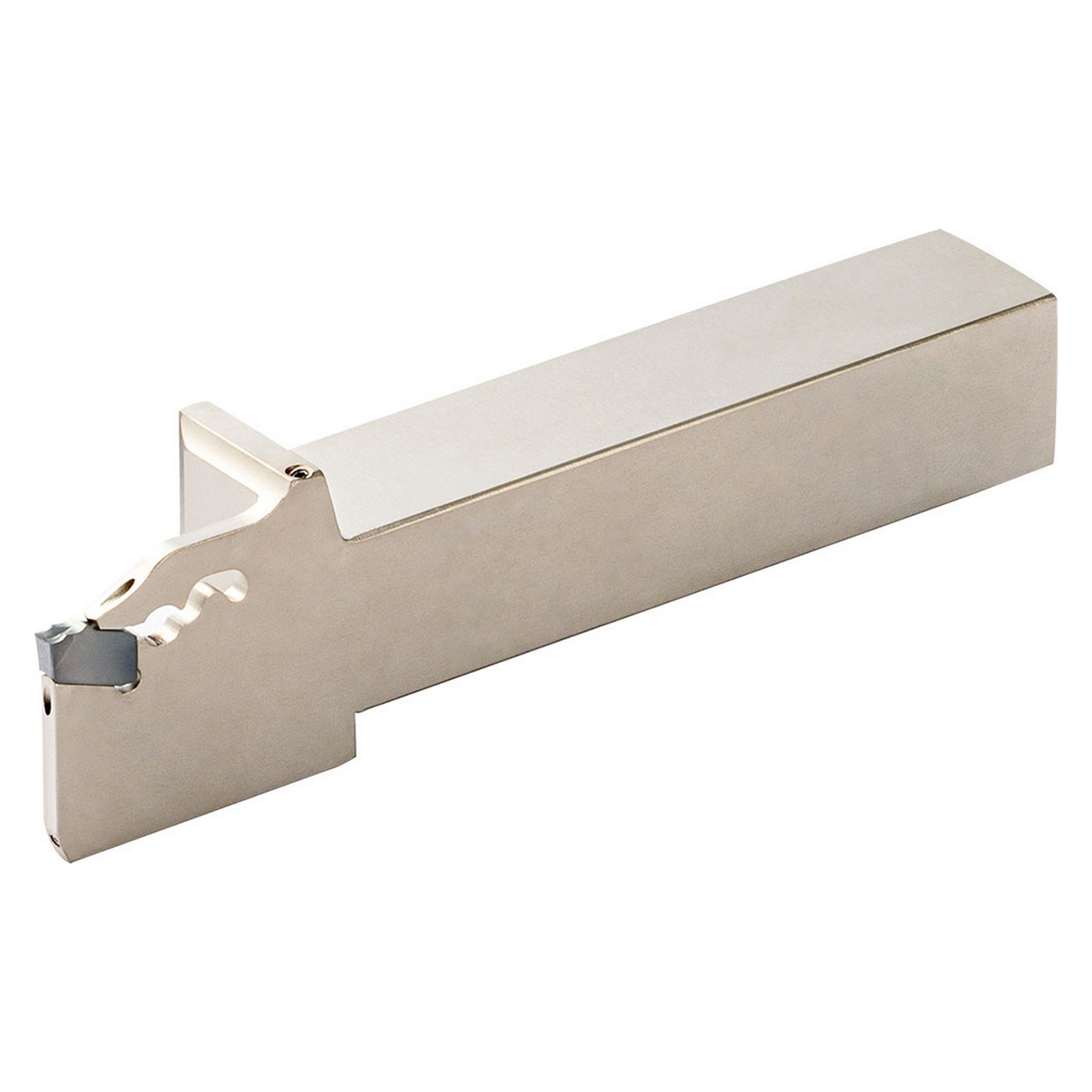

Kyocera Precision Tools THP06829 | KPKHR2020K2JCT 0.7874" Shank Width x 1.4961" Max Cut Of Depth x 0.7874" Shank Height Steel Cut-Off Toolholder

$207.52 $172.24
(You save $35.28)
Brand:
Kyocera Precision Tools
Hand of Holder:
Right-Hand
Maximum Workpiece Diameter (Decimal Inch):
1.4961"
Maximum Workpiece Diameter (mm):
38.00mm
Series:
KPKJ;Toolholder Style=KPKH-JCT"
interval quantity:
1
SKU:
23234321
UPC:
Weight:
1.00 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • Easy self-clamping insert replacement
  • Coolant is supplied directly to the rake and the flank face of the cutting edge for increased tool life and improved chip control
  • Compatible with PKM20, PKM24. Inserts

Product Specifications
EDP NumberTHP06829
Maximum Depth of Cut (mm)8.00mm
Shank Width (mm)20.00mm
Maximum Cut-Off Diameter (Decimal Inch)1.4961"
Maximum Cut-Off Diameter (mm)38.00mm
Cutting Width (Decimal Inch)0.0787 - 0.0945"
Cutting Width (mm)2.00 - 2.40mm
Cutting Width Minimum (Decimal Inch)0.0787"
Cutting Width Minimum (mm)2.00mm
Cutting Width Maximum (Decimal Inch)0.0945"
Cutting Width Maximum (mm)2.40mm
Shank Height (Decimal Inch)0.7874"
Shank Height (mm)20.00mm
ApplicationCut-Off
Coolant Through (Yes/No)Yes
HandRight Hand
Insert Holding MethodSelf-Clamp
MaterialSteel
