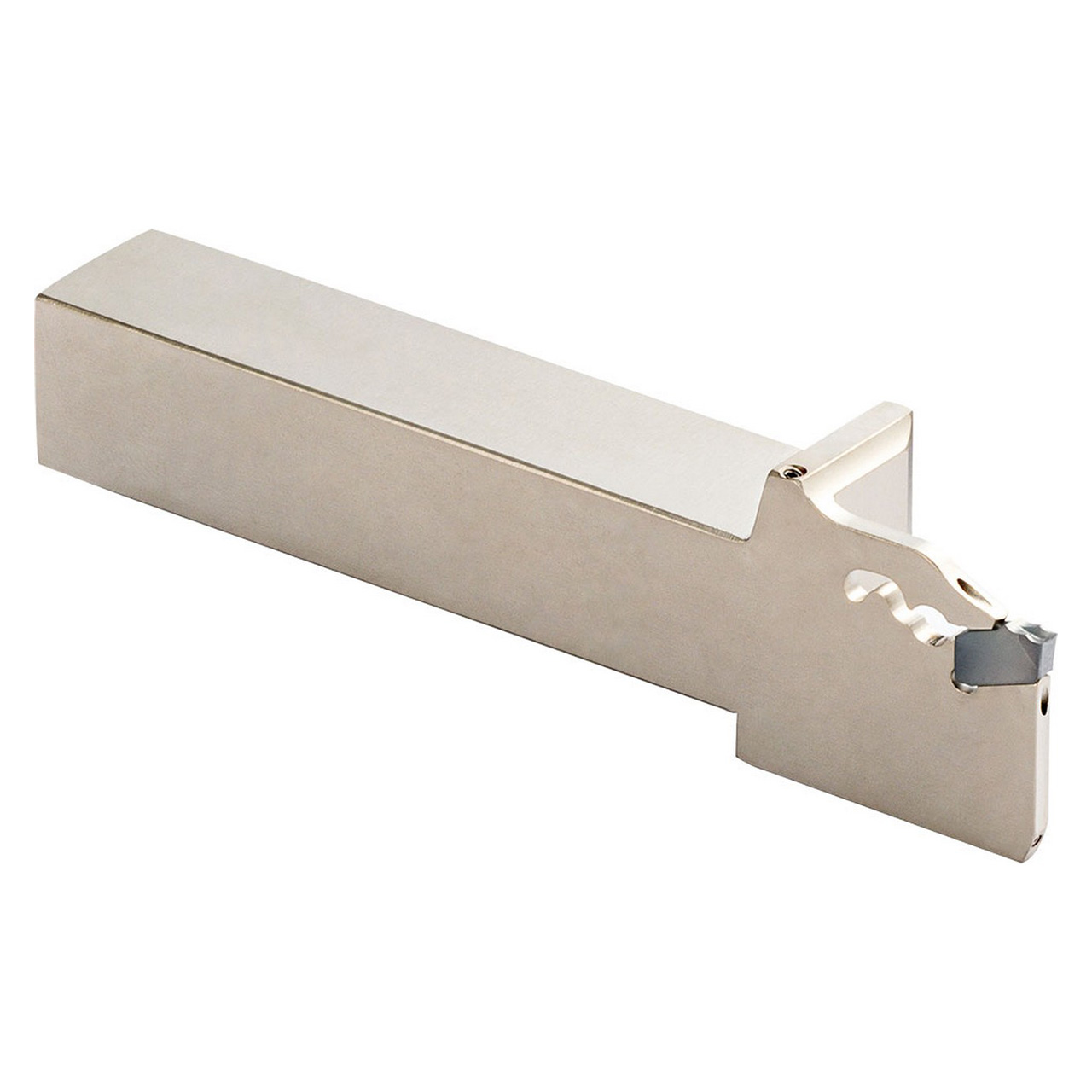

Features:
- Easy self-clamping insert replacement
- Coolant is supplied directly to the rake and the flank face of the cutting edge for increased tool life and improved chip control
- Compatible with PKM40 Inserts
Product Specifications
| EDP Number | THP06837 |
| Maximum Depth of Cut (mm) | 4.00mm |
| Shank Width (mm) | 20.00mm |
| Maximum Cut-Off Diameter (Decimal Inch) | 2.4409" |
| Maximum Cut-Off Diameter (mm) | 62.00mm |
| Cutting Width (Decimal Inch) | 0.1575" |
| Cutting Width (mm) | 4.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.1575" |
| Cutting Width Minimum (mm) | 4.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.1575" |
| Cutting Width Maximum (mm) | 4.00mm |
| Shank Height (Decimal Inch) | 0.7874" |
| Shank Height (mm) | 20.00mm |
| Application | Cut-Off |
| Coolant Through (Yes/No) | Yes |
| Hand | Left Hand |
| Insert Holding Method | Self-Clamp |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Hand of Holder:
Left-Hand
Maximum Workpiece Diameter (Decimal Inch):
2.4409"
Maximum Workpiece Diameter (mm):
62.00mm
Series:
KPKJ;Toolholder Style=KPKH-JCT"
Shank Width/Diameter (Decimal Inch):
0.7874"
Shank Width/Diameter (mm):
20.00mm
Shank Height (Decimal Inch):
0.7874"
Shank Height (mm):
20.00mm
