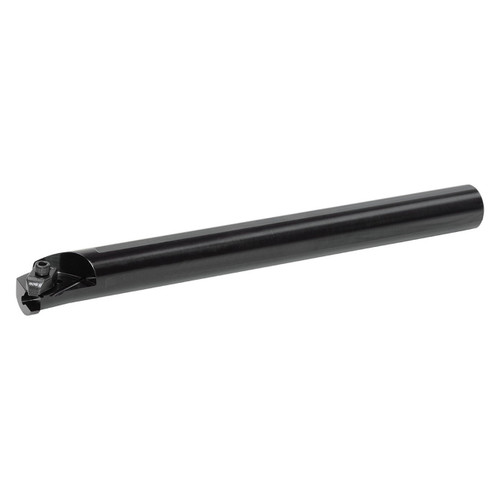

Features:
- Right-Hand toolholder
- Application: internal large diameter deep grooving
- Clamp bolt insert holding design
- Compatible with Neutral GMM8MW, GMG8MG, GMGA8R inserts
Product Specifications
| EDP Number | THT02600 |
| Maximum Depth of Cut (mm) | 8.00mm |
| Max Depth of Cut (Decimal Inch) | 0.7874" |
| Max Depth of Cut (mm) | 20.00mm |
| Cutting Width (Decimal Inch) | 0.3150" |
| Cutting Width (mm) | 8.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.3150" |
| Cutting Width Minimum (mm) | 8.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.3150" |
| Cutting Width Maximum (mm) | 8.00mm |
| Connection Diameter (Decimal Inch) | 1.5748" |
| Connection Diameter (mm) | 40.00mm |
| Minimum Bore Diameter (Decimal Inch) | 2.5591" |
| Minimum Bore Diameter (mm) | 65.00mm |
| Shank Height (Decimal Inch) | 1.4173" |
| Shank Height (mm) | 36.00mm |
| Application | Internal Large Diameter Deep Grooving |
| Grooving Type | Internal Grooving |
| Hand | Right Hand |
| Insert Holding Method | Top Clamp |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Type:
Internal Grooving
Hand of Holder:
Right-Hand
Maximum Depth of Cut (Decimal Inch):
0.7874"
Maximum Depth of Cut (mm):
20.00mm
Minimum Groove Width (Decimal Inch):
0.3150"
Minimum Groove Width (mm):
8.00mm
Maximum Groove Width (Decimal Inch):
0.3150"
Maximum Groove Width (mm):
8.00mm
Toolholder Style:
KIGM
Shank Height (Decimal Inch):
1.4173"
Shank Height (mm):
36.00mm
Shank Width/Diameter (Decimal Inch):
1.5748"
Shank Width/Diameter (mm):
40.00mm
Series:
KIGM
Through Coolant:
No"
