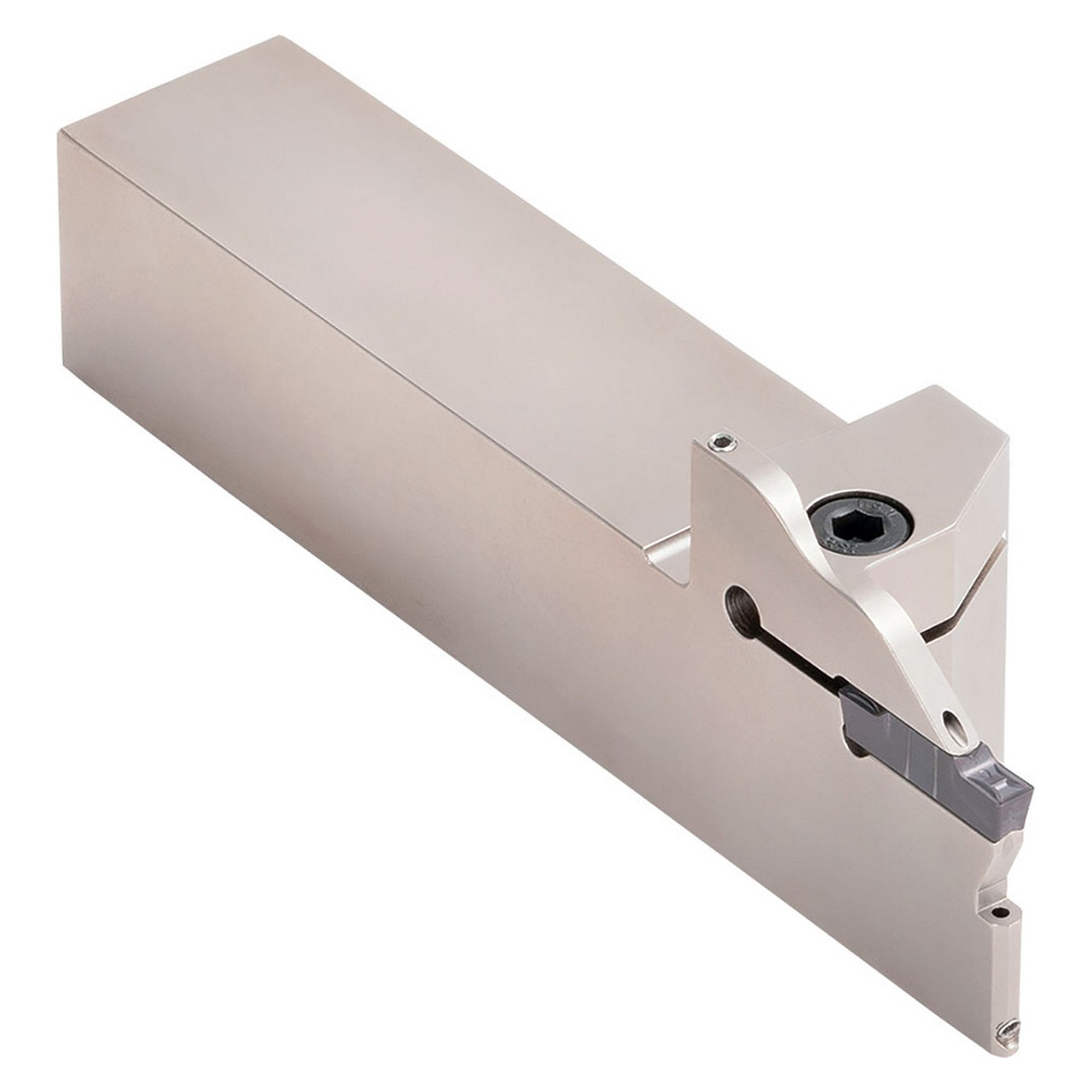

Kyocera Precision Tools THT05489 | KGDL164T20JCT 1.0000" Shank Width x 1.0000" Shank Height Steel External Grooving Toolholder

$378.82 $314.42
(You save $64.40)
Brand:
Kyocera Precision Tools
Toolholder Type:
External Grooving
Hand of Holder:
Left-Hand
Maximum Depth of Cut (Decimal Inch):
0.7874"
Maximum Depth of Cut (mm):
20.00mm
Toolholder Style:
KGD-JCT
Shank Height (Decimal Inch):
1.0000"
Shank Height (mm):
25.40mm
Shank Width/Diameter (Decimal Inch):
1.0000"
Shank Width/Diameter (mm):
25.40mm
Series:
KGDJ;Through Coolant=Yes"
interval quantity:
1
SKU:
23235011
UPC:
Weight:
1.30 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Coolant hole position and angle improve chip control
  • Coolant is directed toward the rake surface and the flank face of the insert from both directions to lengthen tool life
  • Several unique insert chipbreaker designs are for external grooving, traversing and cut-off at various feet rates
  • Compatible with GDM4, GDMS4, GDG4, GDGS4, GDM5, GDMS5, GDG5, GDGS5 inserts

Product Specifications
EDP NumberTHT05489
Shank Width (Decimal Inch)0.3937"
Shank Width (mm)25.40mm
Max Depth of Cut (Decimal Inch)0.7874"
Max Depth of Cut (mm)20.00mm
Cutting Width (Decimal Inch)0.1575 - 0.1969"
Cutting Width (mm)4.00 - 5.00mm
Cutting Width Minimum (Decimal Inch)0.1575"
Cutting Width Minimum (mm)4.00mm
Cutting Width Maximum (Decimal Inch)0.1969"
Cutting Width Maximum (mm)5.00mm
Shank Height (Decimal Inch)1.0000"
Shank Height (mm)25.40mm
ApplicationCut-Off | External Grooving
Coolant Through (Yes/No)Yes
Grooving TypeExternal Grooving
HandLeft Hand
Insert Holding MethodScrew
MaterialSteel

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
