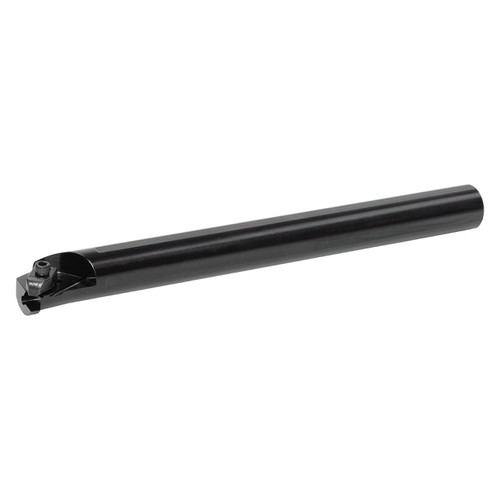

Features:
- Right-Hand toolholder
- Application: internal large diameter shallow grooving
- Top clamp insert holding design
- Compatible with Left-Hand KCG2L, KCGP2L, KCRP2L inserts
- Universal grooving geometry is easily interchangeable with a wide variety of holders
Product Specifications
| EDP Number | THT89066 |
| Max Depth of Cut (Decimal Inch) | 0.1102" |
| Max Depth of Cut (mm) | 2.80mm |
| Cutting Width (Decimal Inch) | 0.0311" |
| Cutting Width (mm) | 0.79mm |
| Cutting Width Minimum (Decimal Inch) | 0.0311" |
| Cutting Width Minimum (mm) | 0.79mm |
| Cutting Width Maximum (Decimal Inch) | 0.0311" |
| Cutting Width Maximum (mm) | 0.79mm |
| Connection Diameter (Decimal Inch) | 0.6252" |
| Connection Diameter (mm) | 15.88mm |
| Minimum Bore Diameter (Decimal Inch) | 1.0000" |
| Minimum Bore Diameter (mm) | 25.40mm |
| Shank Height (Decimal Inch) | 0.5961" |
| Shank Height (mm) | 15.14mm |
| Application | Large Diameter Shallow Grooving |
| Coolant Through (Yes/No) | Yes |
| Grooving Type | Internal Grooving |
| Hand | Right Hand |
| Insert Holding Method | Top Clamp |
| Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Type:
Internal Grooving
Hand of Holder:
Right-Hand
Maximum Depth of Cut (Decimal Inch):
0.1102"
Maximum Depth of Cut (mm):
2.80mm
Minimum Groove Width (Decimal Inch):
0.0311"
Minimum Groove Width (mm):
0.79mm
Maximum Groove Width (Decimal Inch):
0.0311"
Maximum Groove Width (mm):
0.79mm
Toolholder Style:
AÂ…KKC
Shank Height (Decimal Inch):
0.5961"
Shank Height (mm):
15.14mm
Shank Width/Diameter (Decimal Inch):
0.6252"
Shank Width/Diameter (mm):
15.88mm
Series:
CERA;Through Coolant=Yes"
