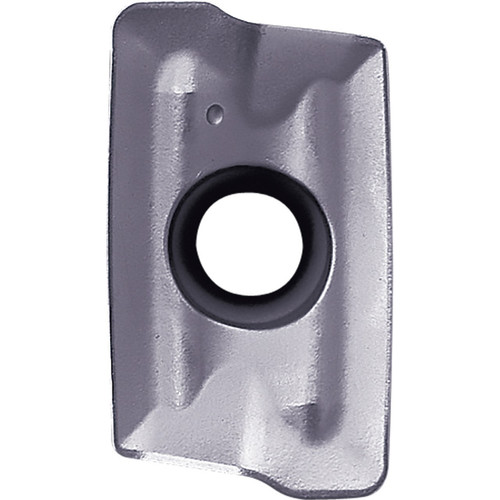

- Insert for facing, shouldering, slotting, helical milling
- Honed edge with 2 cutting edges
- Superior wear and oxidation resistant MEGACOAT on special carbide substrate for cast iron
- Application: Highly efficient stable milling and drilling of gray and nodular cast iron and titanium alloys
Product Specifications
| EDP Number | TKA00323 |
| [RE] Corner Radius (Inch) | 1/64" |
| [RE] Corner Radius (mm) | 0.40mm |
| [S] Thickness (Inch) | 0.118" |
| [S] Thickness (mm) | 3.00mm |
| Application | Facing | Helical Milling | Shouldering | Slotting |
| Chipbreaker | ER-JT |
| Coating Process | PVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
110304
Material:
Carbide;Finish/Coating=PVD
Thickness (Decimal Inch):
0.1200"
Thickness (mm):
3.00mm
