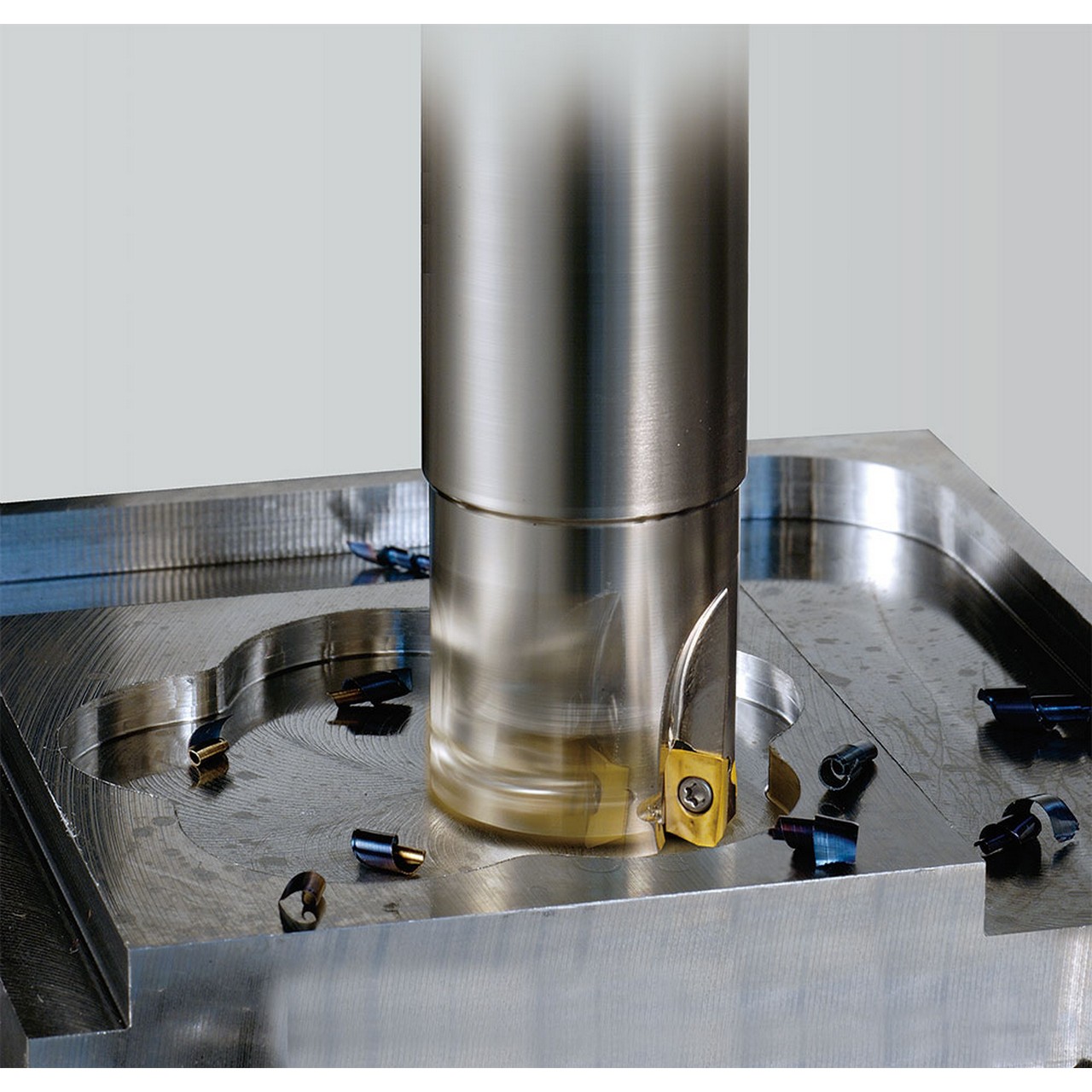

- Insert for facing, shouldering, slotting, helical milling
- Honed edge/low cutting force with 2 cutting edges
- Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
- Application: Light interrupted to interrupted cutting of stainless steel
Product Specifications
| EDP Number | TKB00282 |
| [RE] Corner Radius (Inch) | 1/32" |
| [RE] Corner Radius (mm) | 0.80mm |
| [S] Thickness (Inch) | 0.102" |
| [S] Thickness (mm) | 2.60mm |
| Application | Facing | Helical Milling | Shouldering | Slotting |
| Chipbreaker | ER-JS |
| Coating Process | PVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Size:
070308
Material:
Carbide;Finish/Coating=PVD
Thickness (Decimal Inch):
0.1000"
Thickness (mm):
2.60mm
