Features:

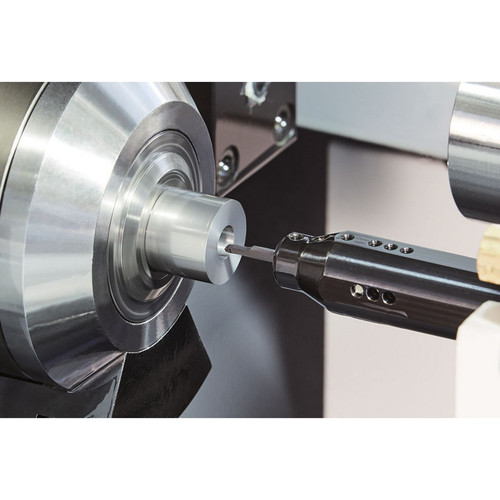

- The easy adjustment and high precision of the EZ Bar system has excellent clamping force with an adjustable overhang length
- PR1225 grade EZ bars provides efficient small diameter internal grooving of steel, Stainless steel
- Short length style
- Short length style
- Compatible with EZH040 style sleeves
Product Specifications
| EDP Number | TKB03437 |
| Shank Width (Decimal Inch) | 0.6299" |
| Max Depth of Cut (Decimal Inch) | 0.0394" |
| Max Depth of Cut (mm) | 1.00mm |
| Cutting Width (Decimal Inch) | 0.0591" |
| Cutting Width (mm) | 1.50mm |
| Cutting Width Minimum (Decimal Inch) | 0.0591" |
| Cutting Width Minimum (mm) | 1.50mm |
| Cutting Width Maximum (Decimal Inch) | 0.0591" |
| Cutting Width Maximum (mm) | 1.50mm |
| Connection Diameter (Decimal Inch) | 0.1575" |
| Connection Diameter (mm) | 4.00mm |
| Minimum Bore Diameter (Decimal Inch) | 0.1575" |
| Minimum Bore Diameter (mm) | 4.00mm |
| Shank Height (Decimal Inch) | 0.1358" |
| Shank Height (mm) | 3.45mm |
| Tool Entering Angle ( Degree) | 92 Degree |
| Usable Length (Decimal Inch) | 0.3150" |
| Usable Length (mm) | 8.00mm |
| Corner Radius (Decimal Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Application | Micro Internal Grooving |
| Coating Process | PVD |
| Grooving Type | Internal Face Grooving |
| Hand | Right Hand |
| Insert Grade | PR1225 |
| Insert Holding Method | Screw |
| Material | Carbide |
| Primary Workpiece Material | Stainless Steel (M) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Toolholder Style:
EZG
Series:
EZB;Hand of Holder=Right-Hand"
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (mm):
4.00mm
