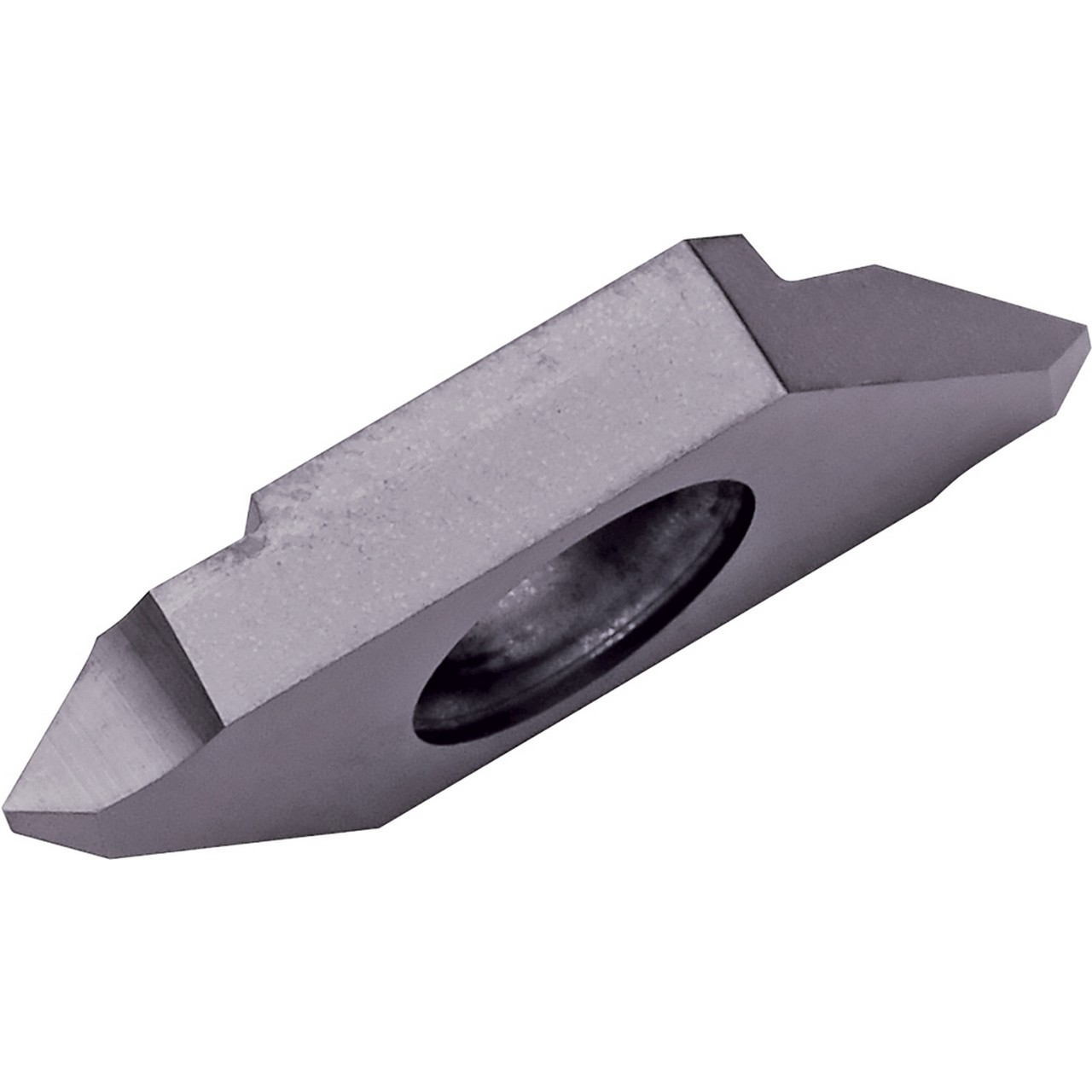

- Insert for external threading with 2 cutting edges
- 60 Degree partial profile for metric (M), unified (UN) threads
- Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
- Application: Light interrupted to interrupted cutting of stainless steel
Product Specifications
EDP Number | TKE16564 |
Cutting Width (Decimal Inch) | 0.0984" |
Cutting Width (mm) | 2.50mm |
Cutting Width Minimum (Decimal Inch) | 0.0984" |
Cutting Width Minimum (mm) | 2.50mm |
Cutting Width Maximum (Decimal Inch) | 0.0984" |
Cutting Width Maximum (mm) | 2.50mm |
[RE] Corner Radius (Inch) | 0.002" |
[RE] Corner Radius (mm) | 0.05mm |
[S] Thickness (Inch) | 0.343" |
[S] Thickness (mm) | 8.70mm |
Application | External Threading |
Coating Process | PVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
TKFT
Insert Size:
12
Thread Type:
External
Insert Hand:
Right-Hand
Thread Standard:
Metric (M)|Unified (UN)
Manufacturer's Grade:
PR1225
External Pitch/TPI (Inch):
1/64 - 1/32 "
External Pitch/TPI (Decimal Inch):
0.0100 -0.0200"
External Pitch/TPI (mm):
M: 0.20-0.60mm
Finish/Coating:
PVD;Material=Carbide
