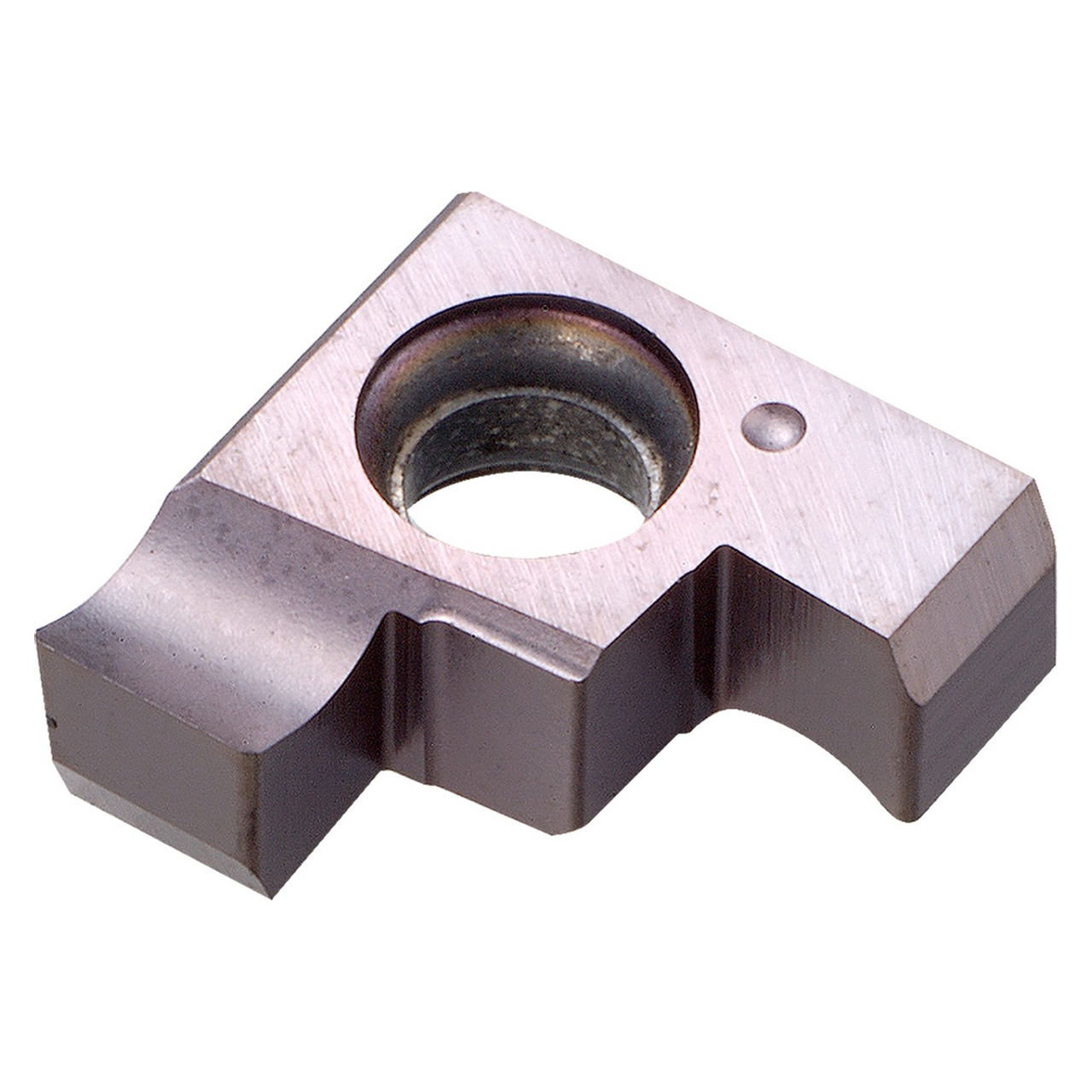

Features:
- Insert for internal grooving
- 2-Edge
- 2 Cutting edges
- Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
- Application: Light interrupted to interrupted cutting of stainless steel
Product Specifications
| Tool Number | TKE16800 |
| Max Depth of Cut (Decimal Inch) | 0.0866" |
| Max Depth of Cut (mm) | 2.20mm |
| Cutting Width (Decimal Inch) | 0.0394" |
| Cutting Width (mm) | 1.00mm |
| Cutting Width Minimum (Decimal Inch) | 0.0394" |
| Cutting Width Minimum (mm) | 1.00mm |
| Cutting Width Maximum (Decimal Inch) | 0.0394" |
| Cutting Width Maximum (mm) | 1.00mm |
| Insert Length (Decimal Inch) | 0.3228" |
| Insert Length (mm) | 8.20mm |
| Corner Radius (Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.18mm |
| Application | Internal Grooving |
| Coating Process | PVD |
| Coolant Through (Yes/No) | PVD |
| Cutting Range | Medium Roughing |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Grade | PR1225 |
| Insert Size | 100005 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
GE
Insert Size:
100005
Material:
Carbide;Cutting Width (Decimal Inch)=0.0394"
Cutting Width (mm):
1.00mm
Maximum Depth of Cut (Decimal Inch):
0.0866"
Maximum Depth of Cut (mm):
2.20mm
Manufacturer's Grade:
PR1225
Finish/Coating:
PVD
interval quantity:
10
