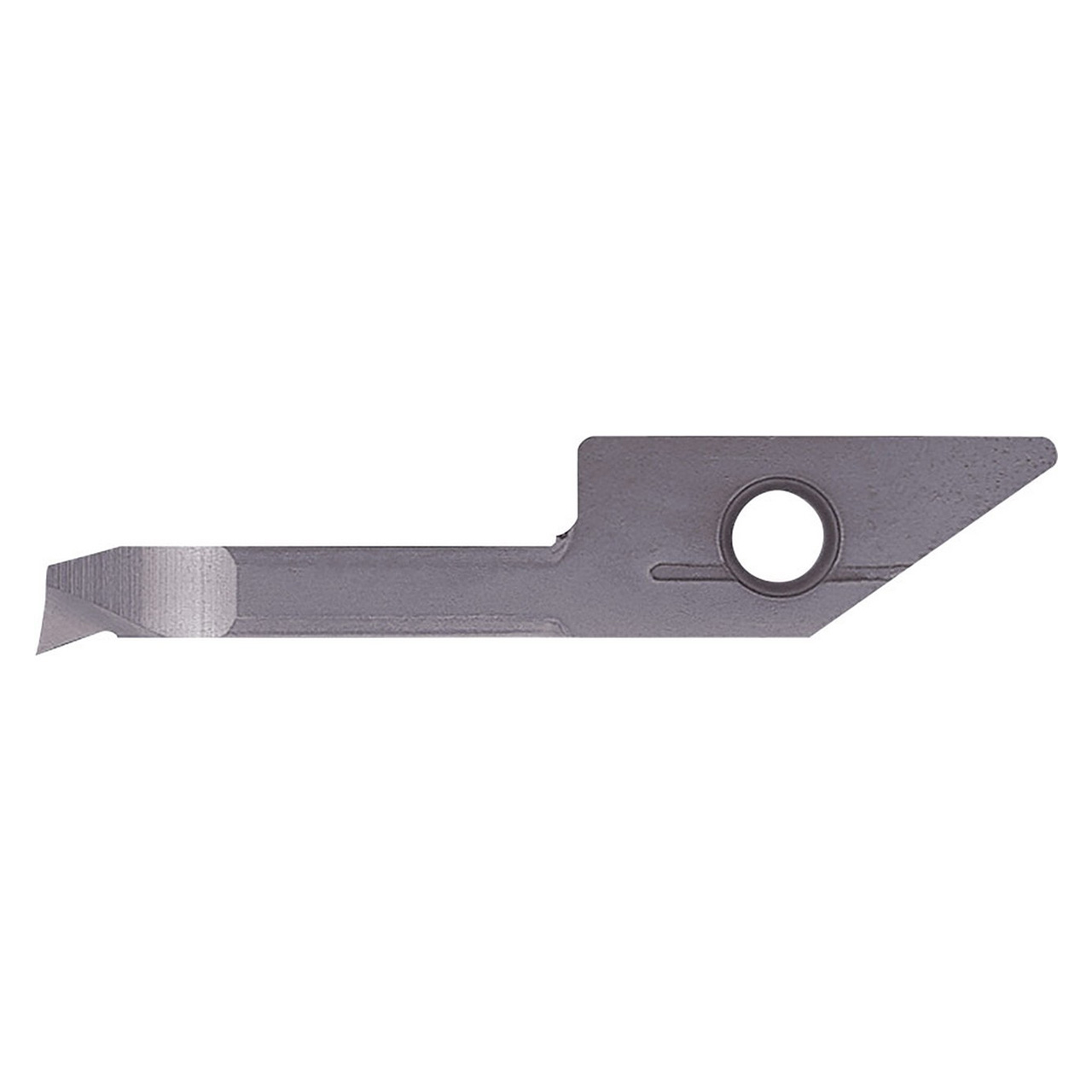

Kyocera Precision Tools TKT09258 | VNBR0420003 PR930 0.7874" Usable Length PVD Coated Micro Boring Bar

$63.02 $36.55
(You save $26.47)
Brand:
Kyocera Precision Tools
Series:
SWIQ;Minimum Bore Diameter (Decimal Inch)=0.1575"
Minimum Bore Diameter (mm):
4.00mm
Maximum Bore Depth (Decimal Inch):
0.7874"
Maximum Bore Depth (mm):
20.00mm
interval quantity:
5
SKU:
23240112
UPC:
Weight:
0.13 LBS
Minimum Purchase:
5 units
Shipping:
Calculated at Checkout

Features:

  • Swiss IQ bar for micro boring applications
  • With chipbreaker
  • Compatible with SVNR, SVNSR, SSVNR style holders

Product Specifications
EDP NumberTKT09258
Shank Width (Decimal Inch)0.9843"
Minimum Bore Diameter (Decimal Inch)0.1575"
Minimum Bore Diameter (mm)4.00mm
Shank Height (Decimal Inch)0.1535"
Shank Height (mm)3.90mm
Tool Entering Angle ( Degree)100 Degree
Usable Length (Decimal Inch)0.7874"
Usable Length (mm)20.00mm
Corner Radius (Decimal Inch)0.001"
Corner Radius (mm)0.03mm
ApplicationMicro Boring
Coating ProcessPVD
HandRight Hand
Insert GradePR930
Insert Holding MethodScrew
MaterialCarbide
Primary Workpiece MaterialSteel (P)

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
