Features:

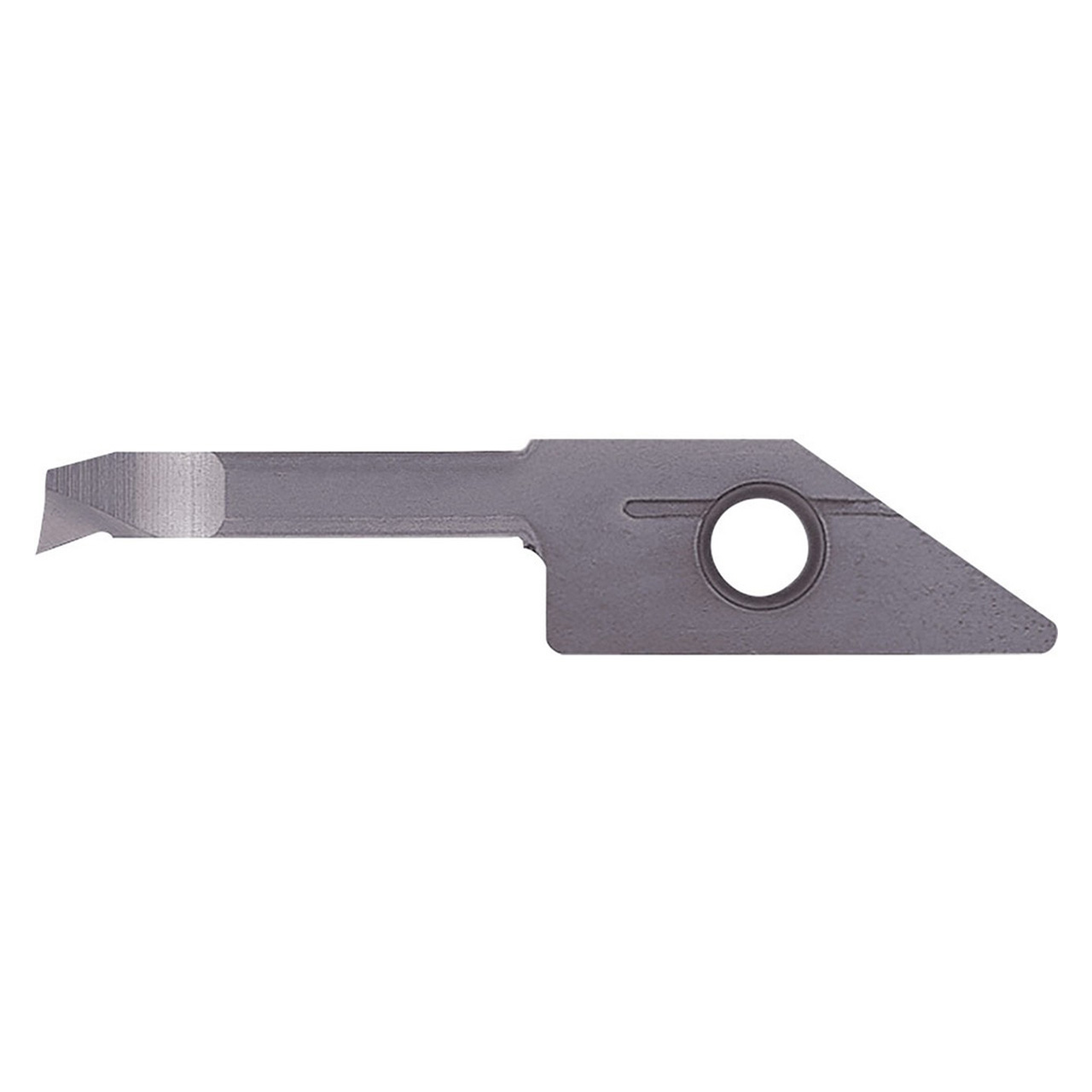

- Swiss IQ bar for micro boring applications
- Minus tolerance corner radius (RE)
- Compatible with SVNSRXN style holders
Product Specifications
| EDP Number | TKT09636 |
| Shank Width (Decimal Inch) | 0.6299" |
| Minimum Bore Diameter (Decimal Inch) | 0.1378" |
| Minimum Bore Diameter (mm) | 3.50mm |
| Shank Height (Decimal Inch) | 0.1535" |
| Shank Height (mm) | 3.90mm |
| Tool Entering Angle ( Degree) | 100 Degree |
| Usable Length (Decimal Inch) | 0.4331" |
| Usable Length (mm) | 11.00mm |
| Corner Radius (Decimal Inch) | 0.004" |
| Corner Radius (mm) | 0.10mm |
| Application | Micro Boring |
| Coating Process | PVD |
| Hand | Right Hand |
| Insert Grade | PR930 |
| Insert Holding Method | Screw |
| Material | Carbide |
| Primary Workpiece Material | Steel (P) |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
SWIQ;Minimum Bore Diameter (Decimal Inch)=0.1378"""
Minimum Bore Diameter (mm):
3.50mm
Maximum Bore Depth (Decimal Inch):
0.4331"
Maximum Bore Depth (mm):
11.00mm
