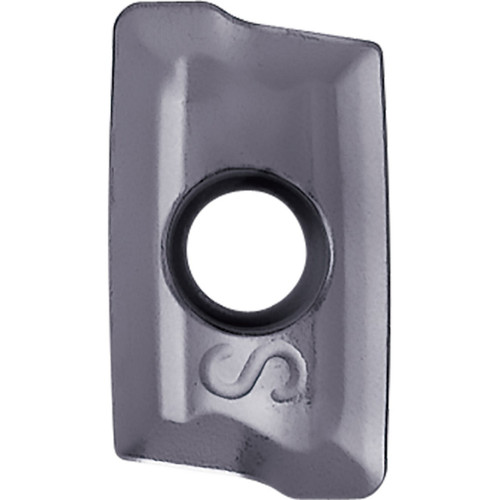

Kyocera Precision Tools TLC00317 | BDMT110302ERJS PR1535 0.008" Radius x 0.118" Thickness PVD Coated Carbide Milling Insert

$23.18 $13.44
(You save $9.74)
Brand:
Kyocera Precision Tools
Insert Size:
110302
Material:
Carbide;Finish/Coating=PVD
Thickness (Decimal Inch):
0.1200"
Thickness (mm):
3.00mm
interval quantity:
10
SKU:
23241297
UPC:
Weight:
0.07 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for facing, shouldering, slotting, helical milling
  • Honed edge/low cutting force with 2 cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for titanium alloy and precipitation hardened stainless steel

Product Specifications
EDP NumberTLC00317
[RE] Corner Radius (Inch)0.008"
[RE] Corner Radius (mm)0.20mm
[S] Thickness (Inch)0.118"
[S] Thickness (mm)3.00mm
ApplicationFacing | Helical Milling | Shouldering | Slotting
ChipbreakerER-JS
Coating ProcessPVD
