Kyocera Precision Tools TLC01630 | RPMW1204M0TN PR1535 0.472" Circle Diameter x 3/16" Thickness PVD Coated Carbide Milling Insert

$16.53 $9.59
(You save $6.94)
Brand:
Kyocera Precision Tools
Insert Size:
1204
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.4700"
Inscribed Circle (mm):
12.00mm
Thickness (Decimal Inch):
0.1900"
Thickness (mm):
4.76mm
SKU:
23241439
UPC:
Weight:
0.25 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

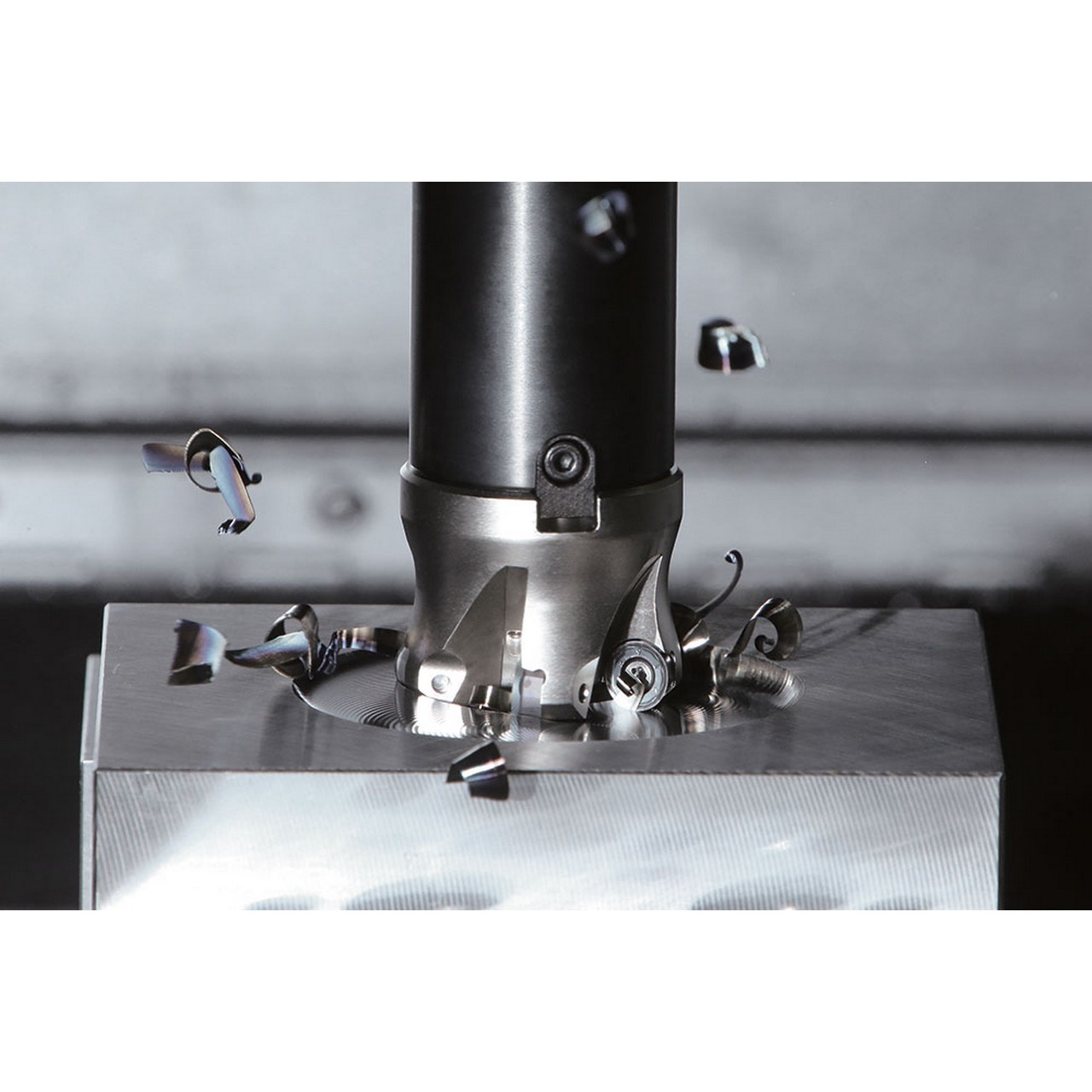

  • Insert for radius milling, facing, shouldering, grooving, pocketing, plunging
  • Double chamfer/flat top (Heavy milling) with stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for titanium alloy and precipitation hardened stainless steel

Product Specifications
EDP NumberTLC01630
Inscribed Circle (Inch)0.472"
[IC] Inscribed Circle (mm)12.00mm
[S] Thickness (Inch)3/16"
[S] Thickness (mm)4.76mm
ApplicationFacing | Plunging | Pocketing | Shouldering
ChipbreakerM0TN
Coating ProcessPVD
