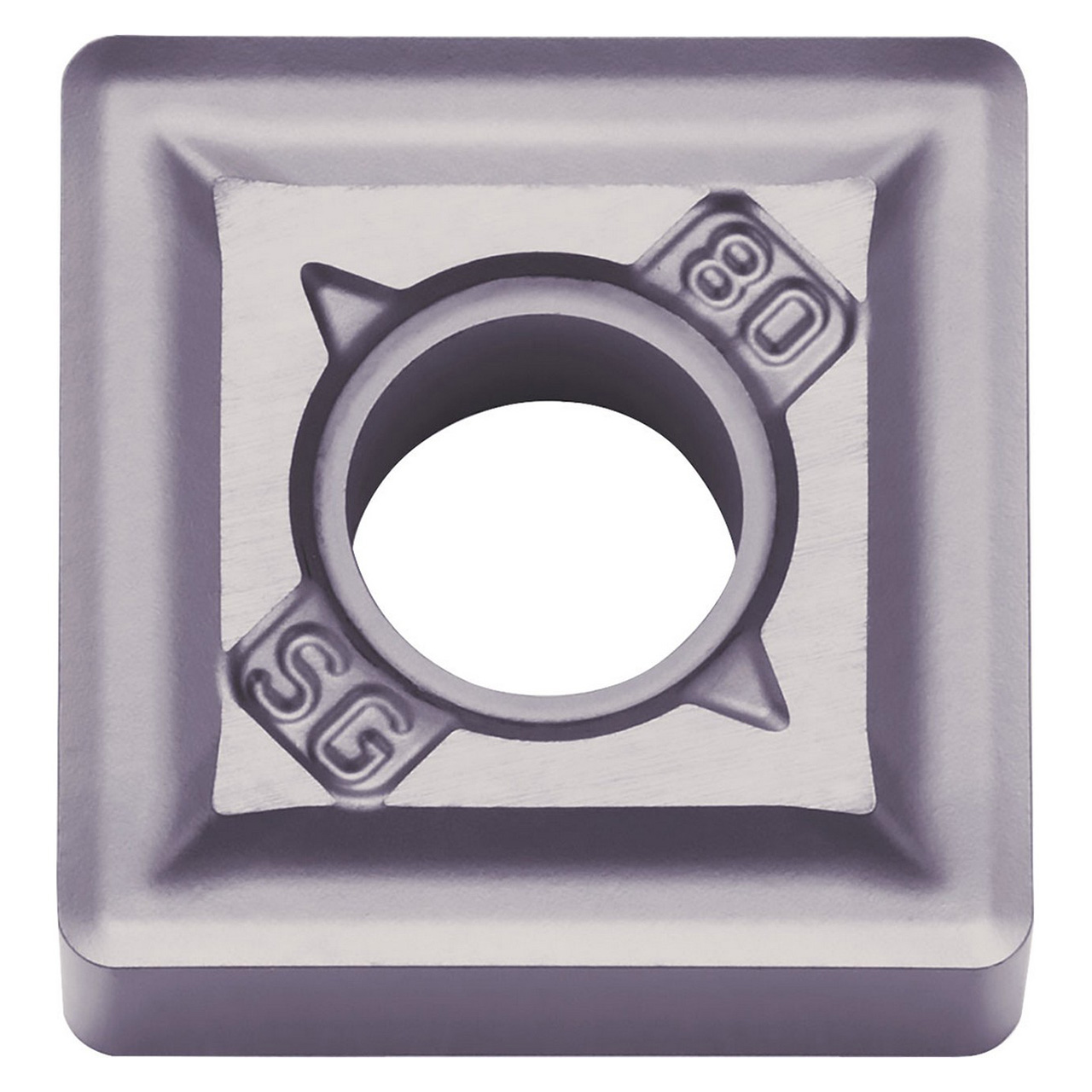

Kyocera Precision Tools TLC05321 | SNMG644SG PR1535 3/4" Circle Diameter x 1/4" Thickness PVD Coated Carbide Indexable Turning Insert

$16.52
Brand:
Kyocera Precision Tools
Insert Style:
SNMG
Insert Size:
644
Material:
Carbide;Inscribed Circle (Inch)=3/4"""
Inscribed Circle (Decimal Inch):
0.7500"
Inscribed Circle (mm):
19.05mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0630"
Corner Radius (mm):
1.60mm
Manufacturer's Grade:
PR1535
SKU:
23241633
Weight:
0.68 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, facing, chamfering, boring
  • Heat-resistant alloy with 8 cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for titanium alloy and precipitation hardened stainless steel

Product Specifications
EDP NumberTLC05321
Inscribed Circle (Inch)3/4"
Inscribed Circle (mm)19.05mm
Corner Radius (Inch)1/16"
Corner Radius (mm)1.60mm
Thickness (Inch)1/4"
Thickness (mm)6.35mm
ApplicationBoring | Chamfering | External Turning | Facing
ChipbreakerSG
Coating ProcessPVD
Cutting RangeRoughing
HandNeutral
Insert GradePR1535
Insert Holding MethodScrew or Clamp
Insert Shape90 Degree Square
Insert Included Angle ( Degree)90 Degree
Insert Size644
MaterialCarbide
Number of Cutting Edges8
Primary Workpiece MaterialStainless Steel (M)|Heat-Resistant Alloy (S)|(S) Titanium Alloy
Usage ClassificationLight Interruption
