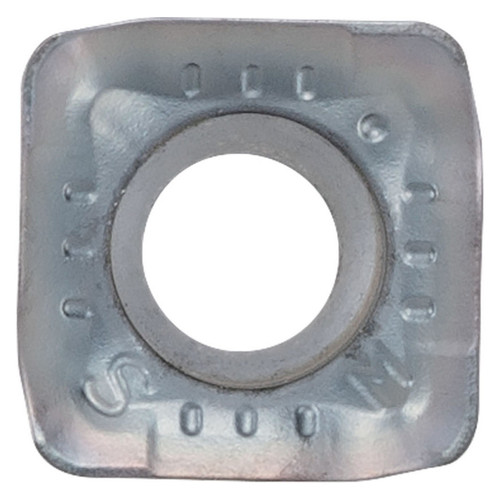

Features:
- Inboard insert for drilling
- Stable chip control when drilling gummy materials like stainless steel
- Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
- Application: PVD for titanium alloy and precipitation hardened stainless steel
Product Specifications
| Tool Number | TLC05756 |
| Insert Included Angle (Degree) | 90 |
| Inscribed Circle (Inch) | 0.705" |
| Inscribed Circle (mm) | 17.90mm |
| Corner Radius (Inch) | 0.039" |
| Corner Radius (mm) | 1.00mm |
| Thickness (Inch) | 0.259" |
| Thickness (mm) | 6.58mm |
| Application | Drilling |
| Chipbreaker | SM-I |
| Coating Process | PVD |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Insert Grade | PR1535 |
| Insert Shape | 90 Degree Square |
| Insert Size | 170610 |
| Material | Carbide |
| Number of Cutting Edges | 4 |
| Primary Workpiece Material | Carbon/Alloy Steel (P) | Tool Steel (P) | Stainless Steel (M) | Cast Iron (K) |
| Usage Classification |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
SCMT
Insert Size:
170610
Material:
Carbide;Manufacturer's Grade=PR1535"
Inscribed Circle (Decimal Inch):
0.7050"
Inscribed Circle (mm):
17.90mm
Thickness (Decimal Inch):
0.2590"
Thickness (mm):
6.58mm
Corner Radius (Decimal Inch):
0.0390"
Corner Radius (mm):
1.00mm
