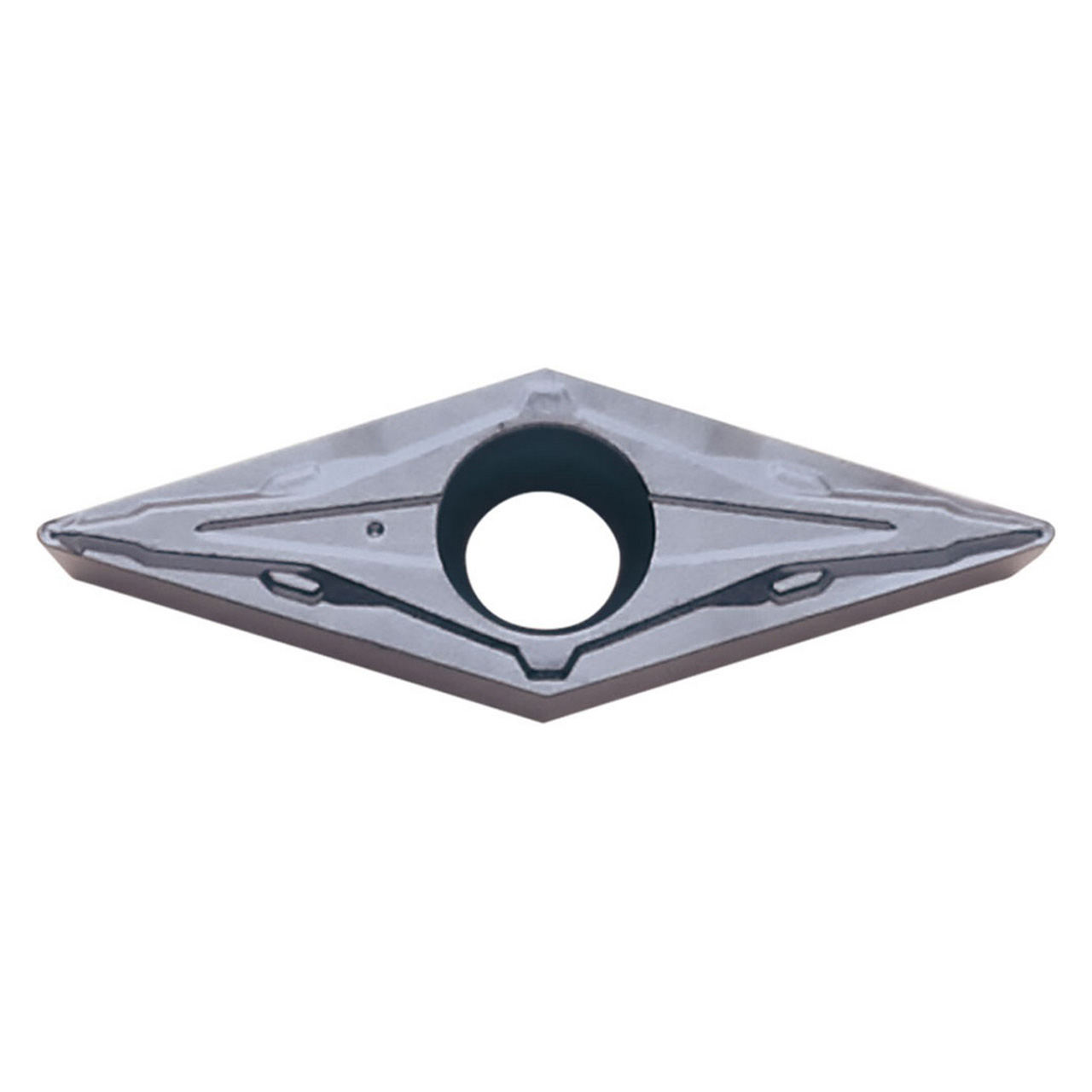

Kyocera Precision Tools TLC07703 | VCMT332PP PR1535 3/8" Circle Diameter x 3/16" Thickness PVD Coated Carbide Indexable Turning Insert

$12.09
Brand:
Kyocera Precision Tools
Insert Style:
VCMT
Insert Size:
332
Material:
Carbide;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
PR1535
SKU:
23241947
Weight:
0.21 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, copying, facing, undercutting, profiling, internal facing, back boring
  • 2 Cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for titanium alloy and precipitation hardened stainless steel

Product Specifications
EDP NumberTLC07703
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Corner Radius (Inch)1/32"
Corner Radius (mm)0.80mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationBack Boring | Copying | External Turning | Facing | Internal Facing | Profiling | Undercutting
ChipbreakerPP
Coating ProcessPVD
Cutting RangeFinishing
HandNeutral
Insert GradePR1535
Insert Holding MethodScrew or Clamp
Insert Shape35 Degree Diamond
Insert Included Angle ( Degree)35 Degree
Insert Size332
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialStainless Steel (M)|Heat-Resistant Alloy (S)|(S) Titanium Alloy
Usage ClassificationLight Interruption
