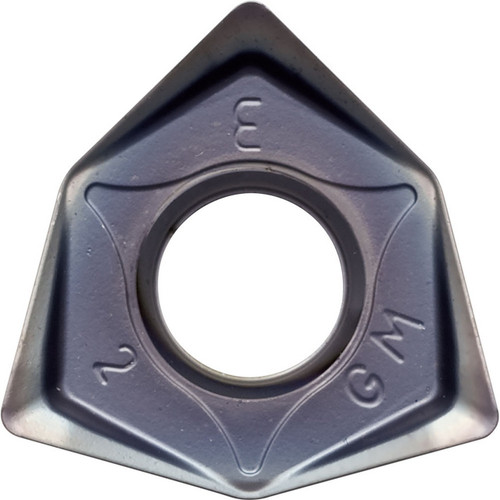

Kyocera Precision Tools TLC09310 | WNMU080608ENGM PR1535 0.552" Circle Diameter x 0.262" Thickness PVD Coated Carbide Milling Insert

$13.39
Brand:
Kyocera Precision Tools
Insert Size:
080608
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.5500"
Inscribed Circle (mm):
14.02mm
Thickness (Decimal Inch):
0.2600"
Thickness (mm):
6.65mm
SKU:
23242004
Weight:
0.32 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for facing, shouldering, slotting
  • Honed edge with 6 cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for titanium alloy and precipitation hardened stainless steel

Product Specifications
EDP NumberTLC09310
Insert Included Angle (Degree)80 Degree
Inscribed Circle (Inch)0.552"
[IC] Inscribed Circle (mm)14.02mm
[RE] Corner Radius (Inch)1/32"
[RE] Corner Radius (mm)0.80mm
[S] Thickness (Inch)0.262"
[S] Thickness (mm)6.65mm
ApplicationFacing | Shouldering | Slotting
ChipbreakerEN-GM
Coating ProcessPVD

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Kyocera Precision Tools
Insert Size:
080608
Material:
Carbide;Finish/Coating=PVD
Inscribed Circle (Decimal Inch):
0.5500"
Inscribed Circle (mm):
14.02mm
Thickness (Decimal Inch):
0.2600"
Thickness (mm):
6.65mm
