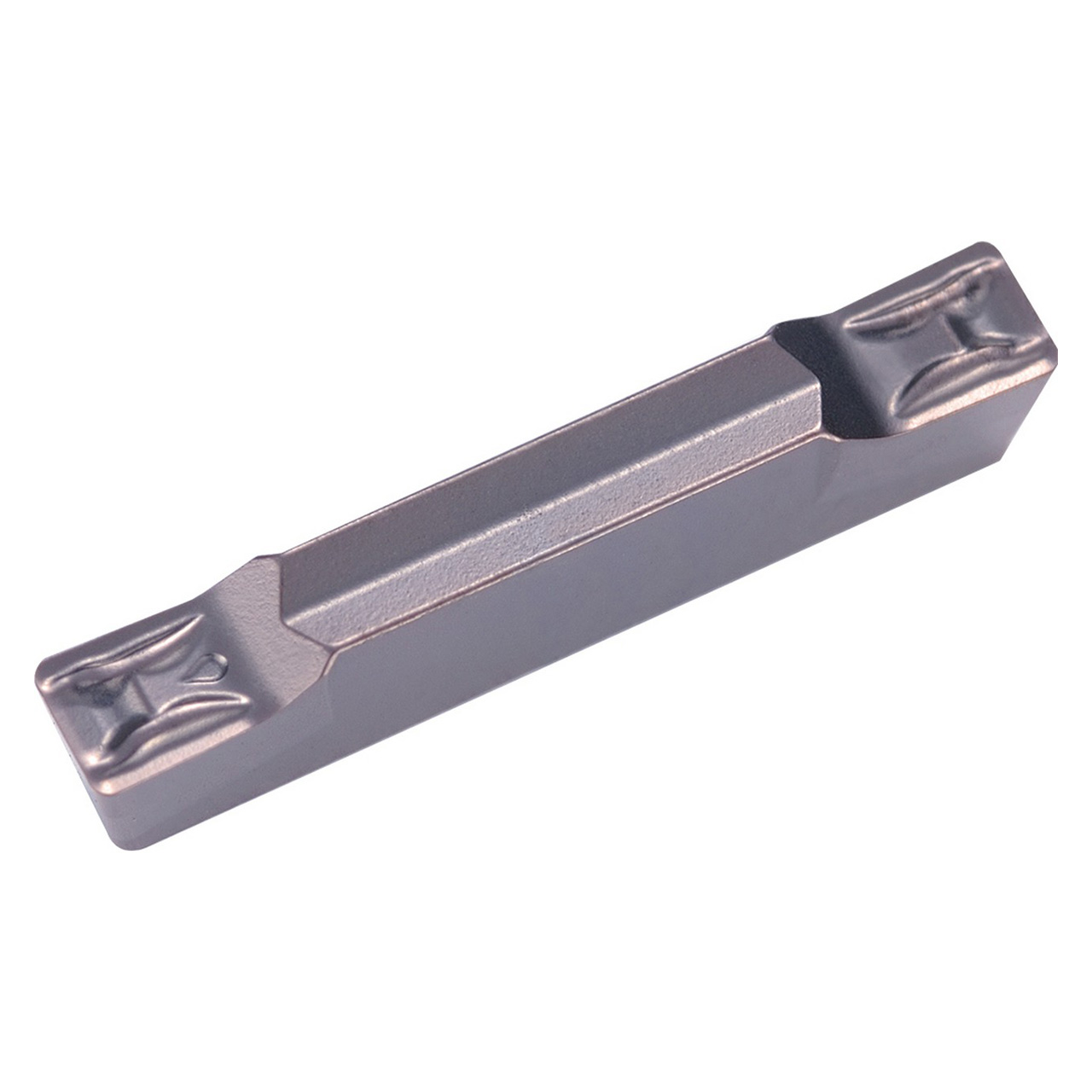

Kyocera Precision Tools TLC10549 | GDM4020N020GM PR1535 0.1575" Cutting width x 0.7874" Insert Length PVD Coated Carbide Grooving Insert

$18.51
Brand:
Kyocera Precision Tools
Insert Style:
GDM
Insert Size:
4020
Material:
Carbide;Cutting Width (Decimal Inch)=0.1575"""
Cutting Width (mm):
4.00mm
Maximum Depth of Cut (Decimal Inch):
1.0039"
Maximum Depth of Cut (mm):
25.50mm
Manufacturer's Grade:
PR1535
Finish/Coating:
PVD
SKU:
23242080
Weight:
0.12 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving, traversing
  • General Purpose / 2-edge
  • 2 Cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for titanium alloy and precipitation hardened stainless steel

Product Specifications
Tool NumberTLC10549
Max Depth of Cut (Decimal Inch)1.0039"
Max Depth of Cut (mm)25.50mm
Cutting Width (Decimal Inch)0.1575"
Cutting Width (mm)4.00mm
Cutting Width Minimum (Decimal Inch)0.1575"
Cutting Width Minimum (mm)4.00mm
Cutting Width Maximum (Decimal Inch)0.1575"
Cutting Width Maximum (mm)4.00mm
Insert Length (Decimal Inch)0.7874"
Insert Length (mm)20.00mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)0.169"
Thickness (mm)4.30mm
ApplicationExternal Grooving | Traversing
ChipbreakerGM
Coating ProcessPVD
Cutting RangeMedium Roughing
HandNeutral
Insert Holding MethodClamp
Insert GradePR1535
Insert Size4020
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialHeat-Resistant Alloy (S)
Usage ClassificationLight Interruption
