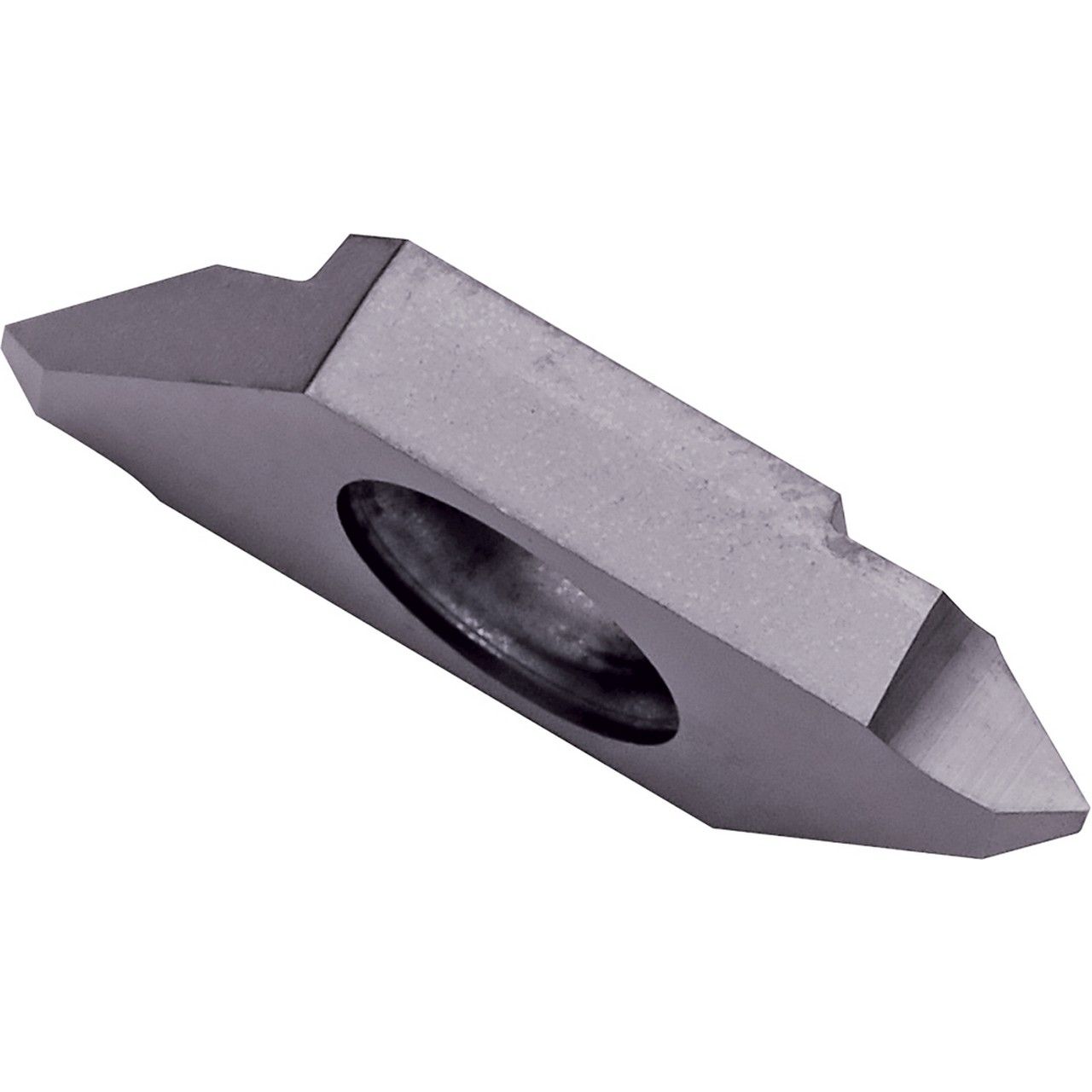

Kyocera Precision Tools TLC16589 | TKFT12LB55005 PR1535 0.0984" Cutting Width x 0.343" Thickness PVD Coated Carbide Threading Insert

$29.32
Brand:
Kyocera Precision Tools
Insert Style:
TKFT
Insert Size:
12
Thread Type:
External
Insert Hand:
Left-Hand
Thread Standard:
Parallel Pipe [G(PF)]|Tapered Pipe [R(PT), (BSPT)]|Whitworth (W)
Manufacturer's Grade:
PR1535
Finish/Coating:
PVD;Material=Carbide
SKU:
23242290
Weight:
0.12 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Insert for external threading with 2 cutting edges
  • 55 Degree partial profile for parallel pipe [G(PF)], tapered pipe [R(PT), (BSPT)], whitworth (W) threads
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for titanium alloy and precipitation hardened stainless steel

Product Specifications
EDP NumberTLC16589
Cutting Width (Decimal Inch)0.0984"
Cutting Width (mm)2.50mm
Cutting Width Minimum (Decimal Inch)0.0984"
Cutting Width Minimum (mm)2.50mm
Cutting Width Maximum (Decimal Inch)0.0984"
Cutting Width Maximum (mm)2.50mm
[RE] Corner Radius (Inch)0.002"
[RE] Corner Radius (mm)0.05mm
[S] Thickness (Inch)0.343"
[S] Thickness (mm)8.70mm
ApplicationExternal Threading
Coating ProcessPVD
