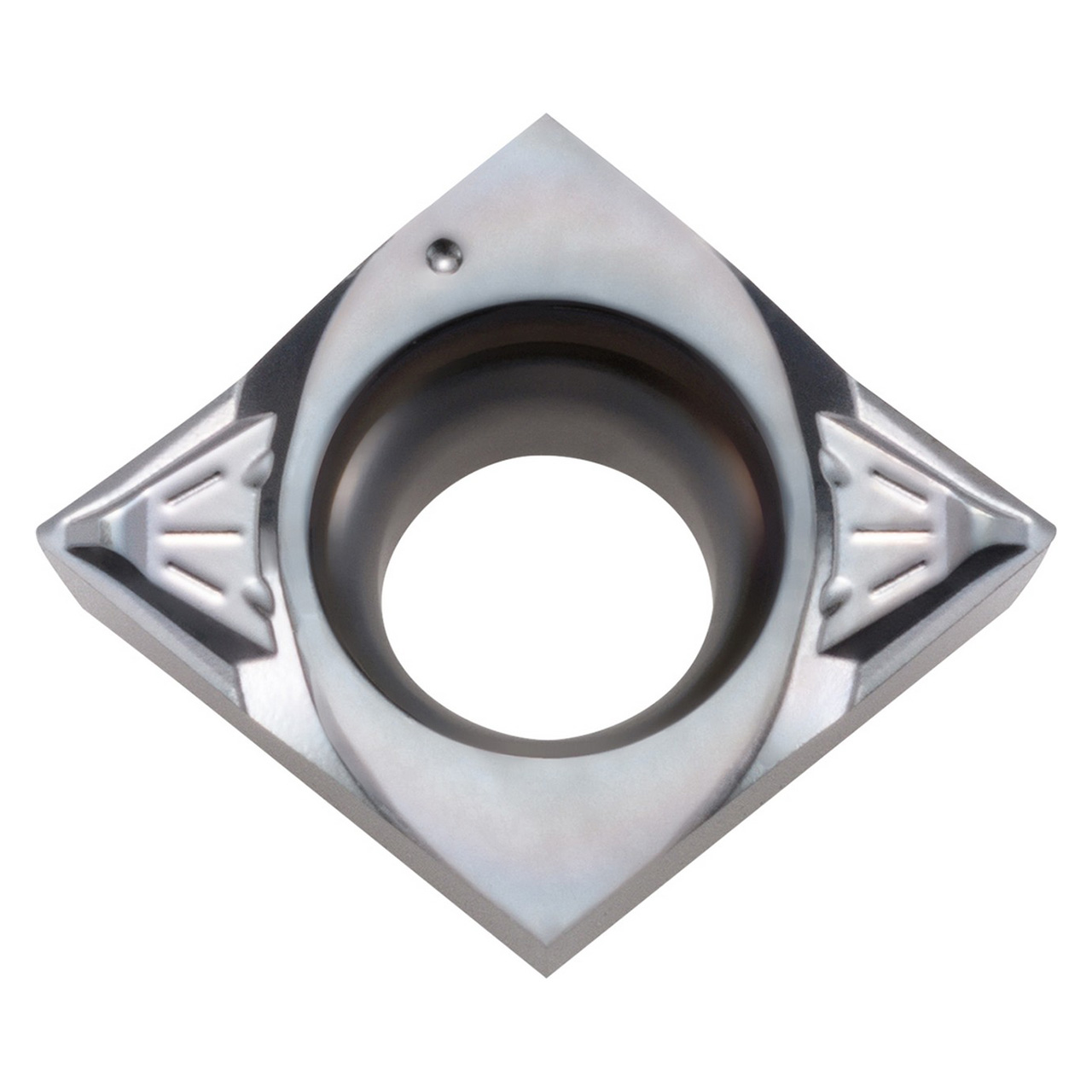

Features:
- Insert for external turning, facing, boring, internal facing, sub-spindle
- Sharp edge/minus tolerance corner radius with 2 cutting edges
- Light interruption and finishing of (S) heat-resistant alloy, (S) titanium alloy, (M) stainless steel
Product Specifications
| EDP Number | TLC40010 |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Corner Radius (Inch) | 0.002" |
| Corner Radius (mm) | 0.05mm |
| Thickness (Inch) | 5/32" |
| Thickness (mm) | 3.97mm |
| Application | Boring | External Turning | Facing | Internal Facing | Sub-Spindle |
| Chipbreaker | SKS |
| Coating Process | PVD |
| Cutting Range | Finishing |
| Hand | Neutral |
| Insert Grade | PR1535 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 80 Degree Diamond |
| Insert Included Angle ( Degree) | 80 Degree |
| Insert Size | 325013 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel (M)|Heat-Resistant Alloy (S)|(S) Titanium Alloy |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
CCGT
Insert Size:
325013
Material:
Carbide;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1563"
Thickness (mm):
3.97mm
Corner Radius (Decimal Inch):
0.0020"
Corner Radius (mm):
0.05mm
Manufacturer's Grade:
PR1535
