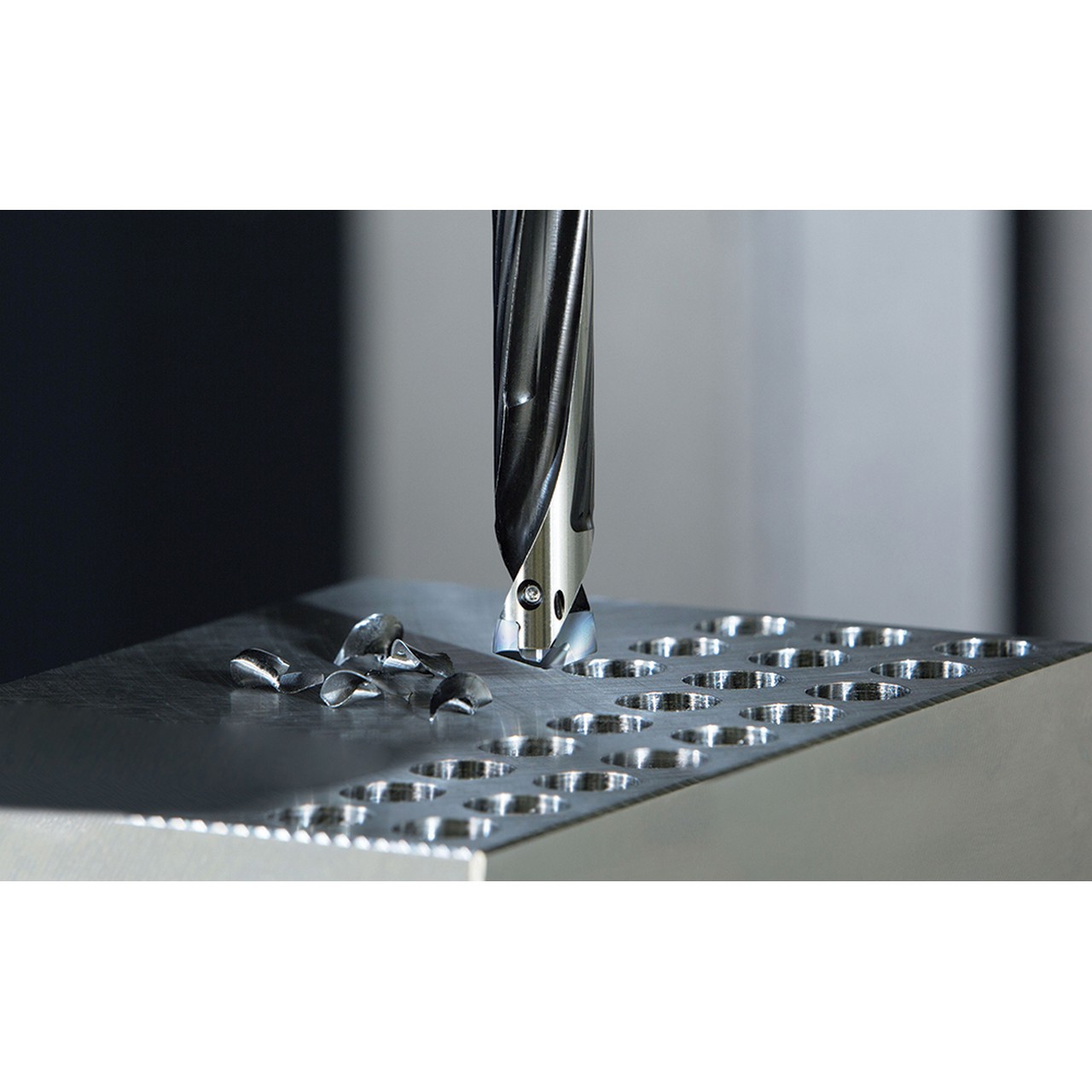

- Unique design for machining difficult-to-cut materials such as Inconel
- Special two-step tip edge supresses sudden fractures from occuring when entering the workpiece
- Double-margin design optimized for difficult-to-cut materials
- Unique flute shape for better chip control
- Excellent hole accuracy and surface finish
Product Specifications
| EDP Number | TLC40176 |
| Cutting Diameter (Decimal Inch) | 0.3701" |
| Cutting Diameter (mm) | 9.40mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.3701" |
| Cutting Diameter Minimum (mm) | 9.40mm |
| Cutting Diameter Maximum (Decimal Inch) | 0.3701" |
| Cutting Diameter Maximum (mm) | 9.40mm |
| Application | Drilling |
| Chipbreaker | HQS |
| Coating Process | PVD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Diameter (Decimal Inch):
0.3701"
Diameter (mm):
9.40mm
Material:
Carbide;Manufacturer's Grade=PR1535"
Series:
DRA
