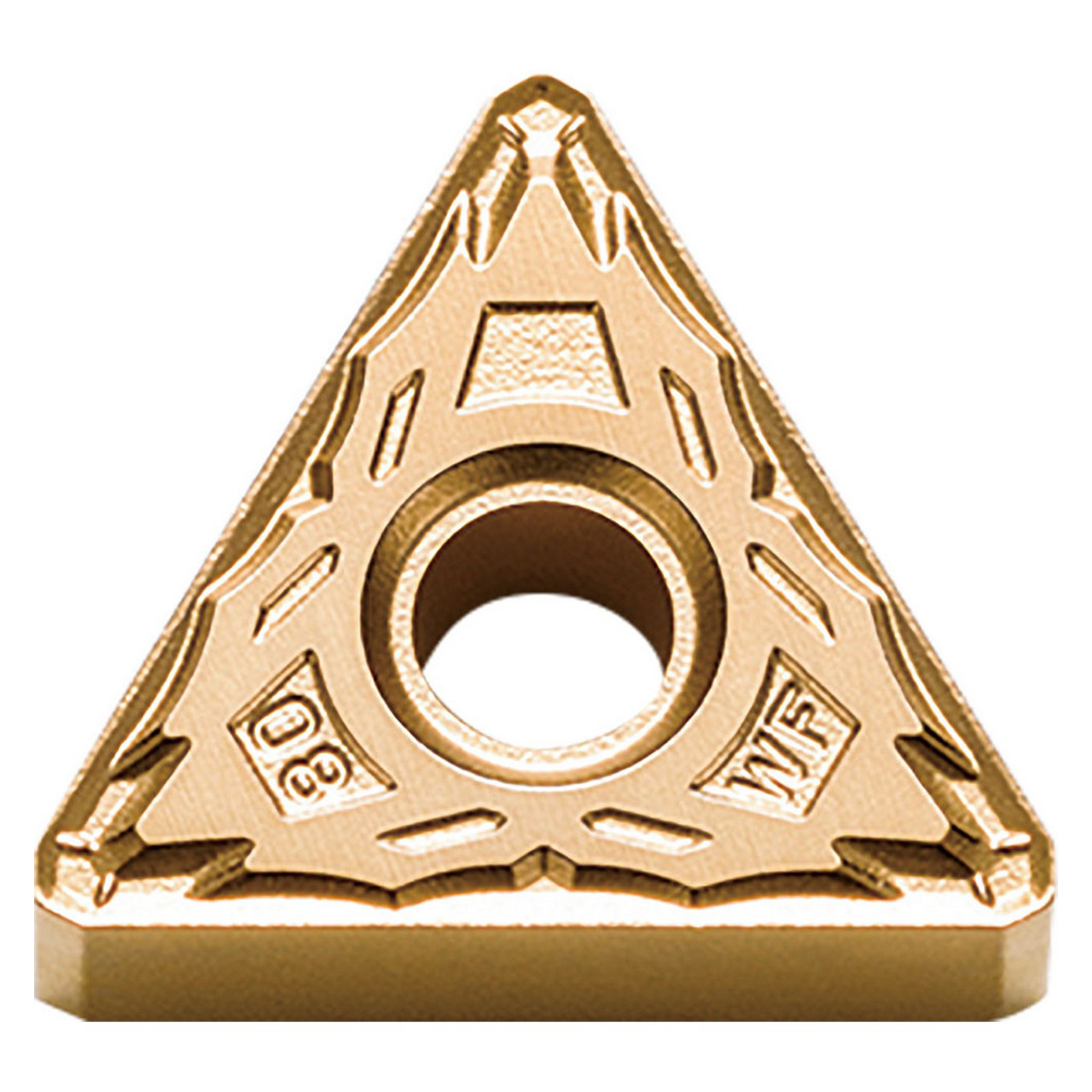

Features:
- Insert for external turning, facing, copying, chamfering, boring
- Wiper edge with 6 cutting edges
- MEGACOAT NANO efficient machining with high quality surface finishes and superior wear and adhesion resistance
- Application: Recommended cermet for long tool life and stable machining for high speed continuous cuts
Product Specifications
| EDP Number | TLF06602 |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Corner Radius (Inch) | 3/64" |
| Corner Radius (mm) | 1.20mm |
| Thickness (Inch) | 3/16" |
| Thickness (mm) | 4.76mm |
| Application | Boring | Chamfering | Copying | External Turning | Facing |
| Chipbreaker | WF |
| Coating Process | PVD |
| Cutting Range | Finishing |
| Hand | Neutral |
| Insert Grade | PV710 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 60 Degree Triangle |
| Insert Included Angle ( Degree) | 60 Degree |
| Insert Size | 333 |
| Material | Cermet |
| Number of Cutting Edges | 6 |
| Primary Workpiece Material | Carbon/Alloy Steel (P) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
TNMX
Insert Size:
333
Material:
Cermet;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0472"
Corner Radius (mm):
1.20mm
Manufacturer's Grade:
PV710
