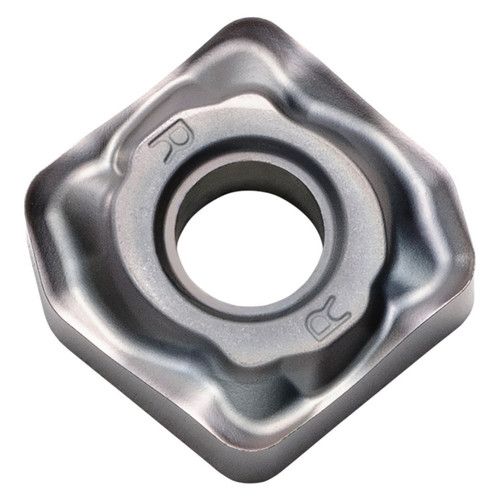

Features:
- Insert for external turning, facing, boring, internal facing
- Heat-resistant alloy with 2 cutting edges
- Improved thermal conductivity by optimum distribution of WC coarse grains in the substrate
- Resists heat concentration at the cutting edge to promote stable machining
- Application: Hard, wear resistant grade for high-speed machining of continuous to light interrupted heat-resistant alloys
Product Specifications
| EDP Number | TLH10012 |
| Inscribed Circle (Inch) | 3/4" |
| Inscribed Circle (mm) | 19.05mm |
| Thickness (Inch) | 1/4" |
| Thickness (mm) | 6.35mm |
| Application | Boring | External Turning | Facing | Internal Facing |
| Chipbreaker | SX |
| Coating Process | PVD |
| Cutting Range | Roughing |
| Hand | Right Hand |
| Insert Grade | PR005S |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 80 Degree Diamond |
| Insert Included Angle ( Degree) | 80 Degree |
| Insert Size | 64 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Heat-Resistant Alloy (S) |
| Usage Classification | Continuous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
CNMM
Insert Size:
64
Material:
Carbide;Inscribed Circle (Inch)=3/4"""
Inscribed Circle (Decimal Inch):
0.7500"
Inscribed Circle (mm):
19.05mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Manufacturer's Grade:
PR005S
