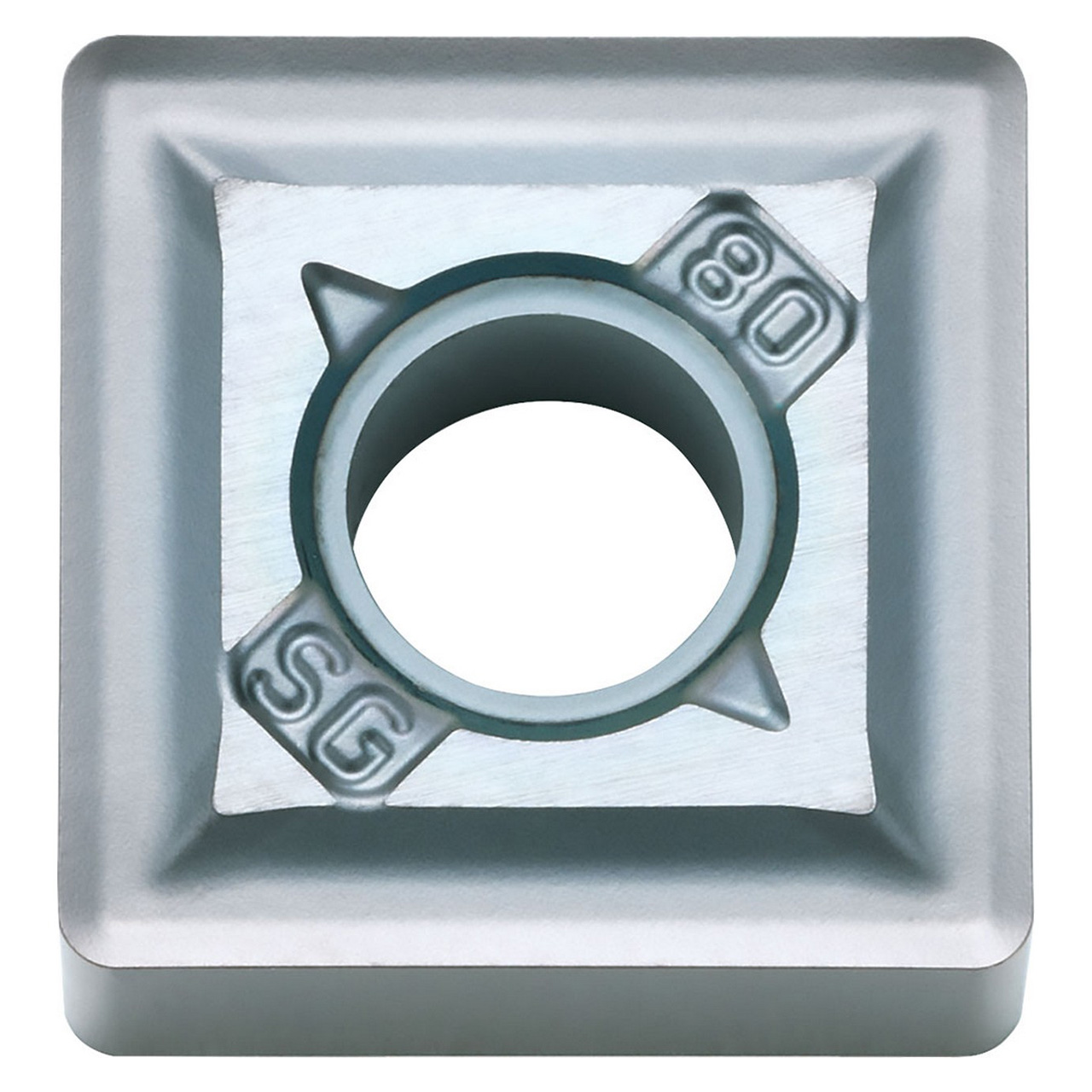

Features:
- Insert for external turning, facing, chamfering, boring
- Heat-resistant alloy with 8 cutting edges
- Improved thermal conductivity by optimum distribution of WC coarse grains in the substrate
- Resists heat concentration at the cutting edge to promote stable machining
- Application: General purpose grade with excellent wear resistance and stability for continuous to light interrupted heat-resistant alloys
Product Specifications
| EDP Number | TLJ05320 |
| Inscribed Circle (Inch) | 3/4" |
| Inscribed Circle (mm) | 19.05mm |
| Corner Radius (Inch) | 3/64" |
| Corner Radius (mm) | 1.20mm |
| Thickness (Inch) | 1/4" |
| Thickness (mm) | 6.35mm |
| Application | Boring | Chamfering | External Turning | Facing |
| Chipbreaker | SG |
| Coating Process | PVD |
| Cutting Range | Roughing |
| Hand | Neutral |
| Insert Grade | PR015S |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 90 Degree Square |
| Insert Included Angle ( Degree) | 90 Degree |
| Insert Size | 643 |
| Material | Carbide |
| Number of Cutting Edges | 8 |
| Primary Workpiece Material | Heat-Resistant Alloy (S) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
SNMG
Insert Size:
643
Material:
Carbide;Inscribed Circle (Inch)=3/4"""
Inscribed Circle (Decimal Inch):
0.7500"
Inscribed Circle (mm):
19.05mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0472"
Corner Radius (mm):
1.20mm
Manufacturer's Grade:
PR015S
