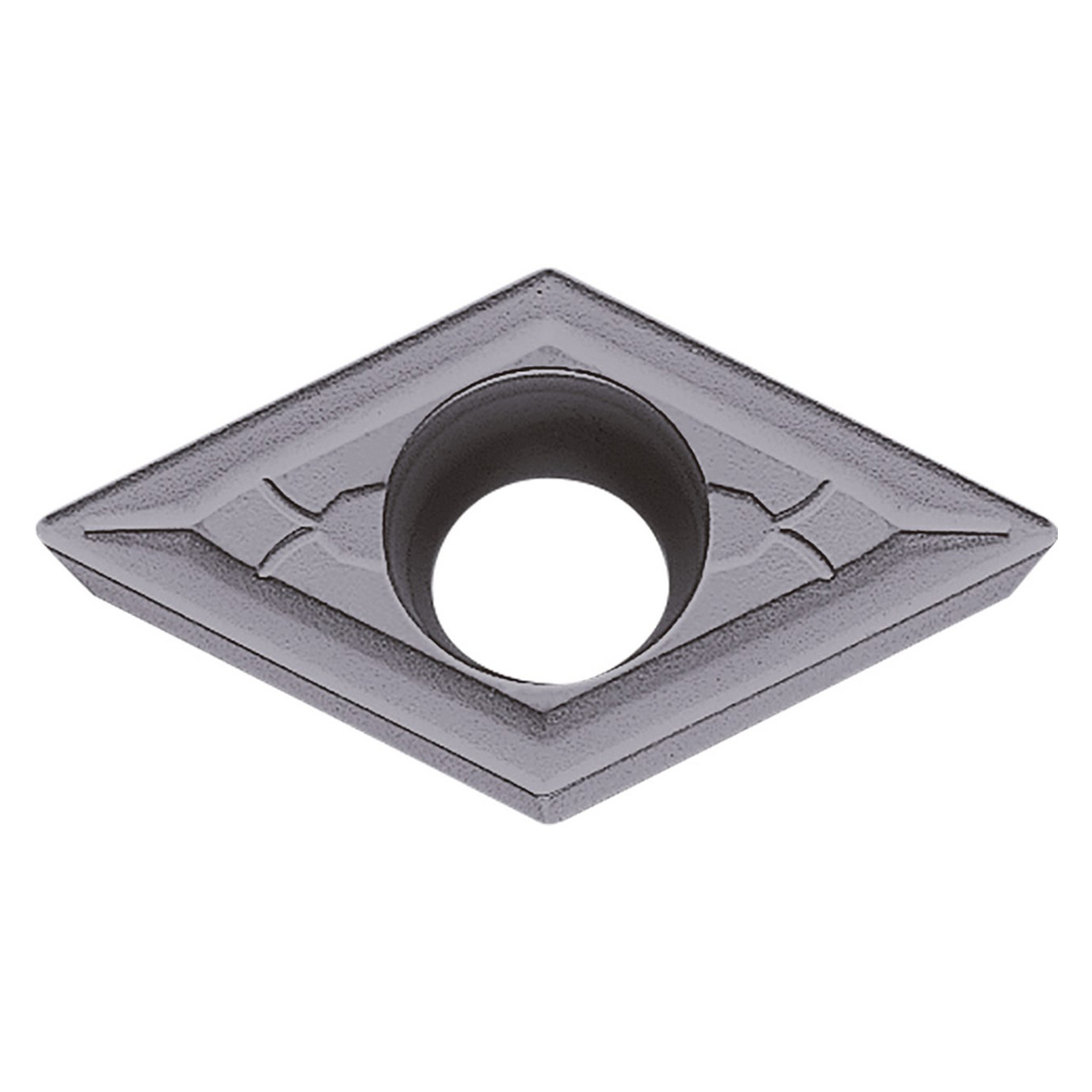

Features:
- Insert for external turning, copying, back boring
- 2 Cutting edges
- MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for longer tool life and a high-quality surface finish in steel and stainless applications
Product Specifications
| EDP Number | TLM00202 |
| Inscribed Circle (Inch) | 1/4" |
| Inscribed Circle (mm) | 6.35mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 3/32" |
| Thickness (mm) | 2.38mm |
| Application | Back Boring | Copying | External Turning |
| Chipbreaker | GK |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Neutral |
| Insert Grade | PR1725 |
| Insert Holding Method | Screw or Clamp |
| Insert Shape | 55 Degree Diamond |
| Insert Included Angle ( Degree) | 55 Degree |
| Insert Size | 21505 |
| Material | Carbide |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Carbon/Alloy Steel (P) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
DCMT
Insert Size:
21505
Material:
Carbide;Inscribed Circle (Inch)=1/4"""
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0937"
Thickness (mm):
2.38mm
Corner Radius (Decimal Inch):
0.0080"
Corner Radius (mm):
0.20mm
Manufacturer's Grade:
PR1725
