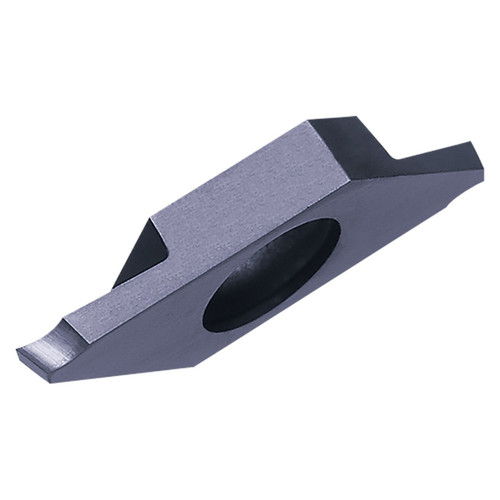

Kyocera Precision Tools TLM40110 | TKF12R100S16DR PR1725 0.0394" Cutting Width x 0.343" Thickness PVD Coated Carbide Cut-Off Insert

$29.89
Brand:
Kyocera Precision Tools
Material:
Carbide;Insert Style=TKF"
Insert Size:
12
Lead Angle Direction:
Right-Hand
Cutting Width (Decimal Inch):
0.0394"
Cutting Width (mm):
1.00mm
Manufacturer's Grade:
PR1725
Series:
KTKF
SKU:
23245572
Weight:
0.11 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for Cut-Off for Small parts machining
  • 16 Degree Right-Hand Lead Angle
  • MEGACOAT NANO PLUS PVD technology provides excellent wear resistance for longer tool life and a high-quality surface finish in steel and stainless applications

Product Specifications
Tool NumberTLM40110
Max Depth of Cut (Decimal Inch)0.2362"
Max Depth of Cut (mm)6.00mm
Cutting Width (Decimal Inch)0.0394"
Cutting Width (mm)1.00mm
Cutting Width Minimum (Decimal Inch)0.0394"
Cutting Width Minimum (mm)1.00mm
Cutting Width Maximum (Decimal Inch)0.0394"
Cutting Width Maximum (mm)1.00mm
Corner Radius (Inch)0.001"
Corner Radius (mm)0.03mm
Thickness (Inch)0.343"
Thickness (mm)8.70mm
ApplicationCut-Off | Small Parts Machining
ChipbreakerS
Coating ProcessPVD
Cutting RangeFinishing Medium
HandRight Hand
Insert Holding MethodScrew
Insert GradePR1725
Insert Size12
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialSteel (P)
Usage ClassificationLight Interruption
